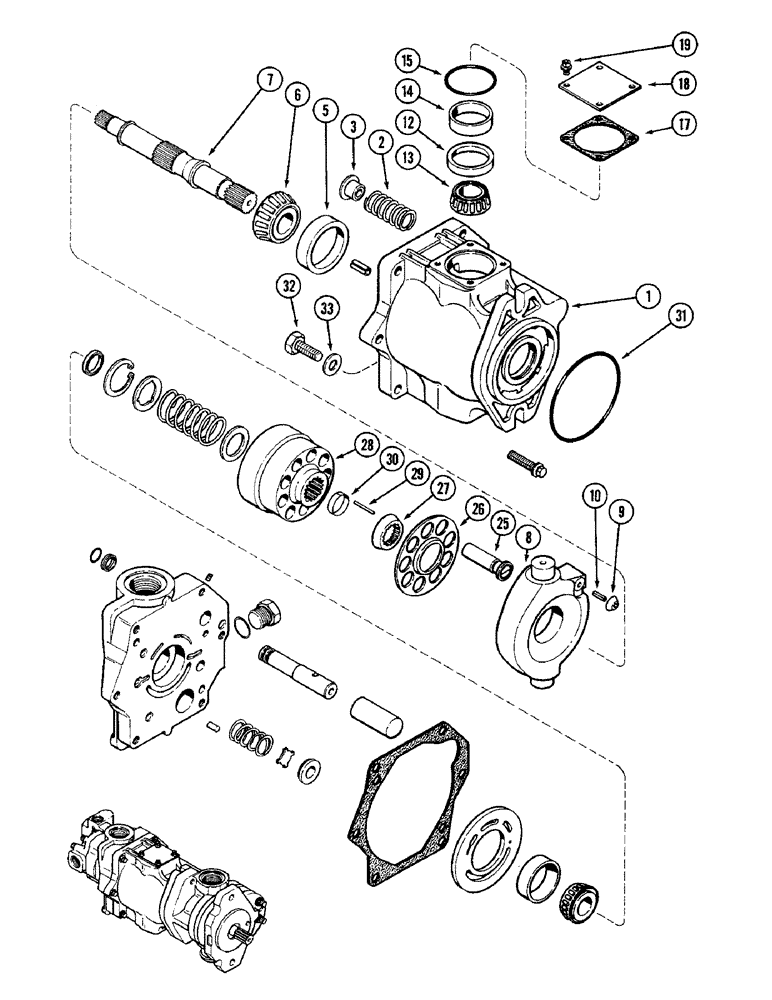

Запчасти Case IH 4890 (8-278) - TRIPLE HYDRAULIC PUMP ASSEMBLY, PISTON PUMP SECTION (08) - HYDRAULICS

A162912

PUMP ASSEMBLY - triple hydraulic (See note on Figure 8-276) (Continued from Figure 8-276), Includes: Ref. 1 - 33, 35 - 63 on Figure 8-280, and kit, Start Serial: 880322

1шт.

A149963

PUMP

ASSEMBLY - triple hydraulic (Continued from Figure 8-276), Includes: Ref. 1 - 33, 35 - 63 on Figure 8-280, and kit, Serial Range: -8860322

1шт.

129330A1R

REMAN-HYD PUMP

4890 Serial Range: -8860322 (1/79-12/83), Center Section/Piston Pump Only

1шт.

129330A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

A47278

HOUSING

BODY - piston pump

1шт.

2

A47281

SPRING

- housing

1шт.

3

A47282

PLUG

SEAT - spring

1шт.

5

D59595

TAPERED BEARING

CUP - front bearing, 2-7/16" (61.91 MM) OD

1шт.

6

A31272

ROLLER BEARING,1" ID x 0.8125"

CONE - front bearing, 1" (25.4 MM) ID

1шт.

7

A47634

SHAFT

- drive, piston pump

1шт.

8

A47284

YOKE

- swing

1шт.

9

A47283

SEAT

- spherical

1шт.

10

138-38

LOCK PIN,3/32" x 9/16", Slotted

PIN - roll, 3/16 x 1/2"

1шт.

12

D29267

BEARING CUP,1.98" OD x 0.42"

CUP - yoke pivot bearing, 1-63/64" (50.4 MM) OD

2шт.

13

D53168

TAPERED BEARING

CONE - yoke pivot bearing

2шт.

14

A47286

SPACER

- bearing

2шт.

15

S80753

WASHER

O-RING - cover, 2-1/4 x 2-5/8" x 3/16" (57.15 x 66.68 x 4.76 MM)

2шт.

Part of seal and gasket kit, P/N 47567

1шт.

A47287

KIT

- shim, bearing, Includes: Ref. 17

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - 0.003" (0.76 MM) (3 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - 0.005" (0.127 MM) (2 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - 0.010" (0.254 MM) (2 in kit)

1шт.

18

A47288

COVER

- housing

2шт.

19

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

25

A47334

PACKAGE

KIT - piston (Includes 9 pistons and shoes)

1шт.

26

A47292

PLATE

- shoe, piston pump

1шт.

27

A47293

WASHER

- spherical

1шт.

28

A47295

BLOCK

- cylinder

1шт.

29

A47296

PIN

- cylinder block

3шт.

30

A47297

SNAP RING,7.11mm Thk, Int

- pin

1шт.

31

S5748

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

- charge pump to piston pump

1шт.

32

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

33

195-33

WASHER,1/2"

- 17/32 x 1-1/16 x 3/32" (13.49 x 26.99 x 2.38 MM)

2шт.

A47567

KIT

- seal and gasket: Includes: Ref. 15, See Figure 8-282

1шт.
