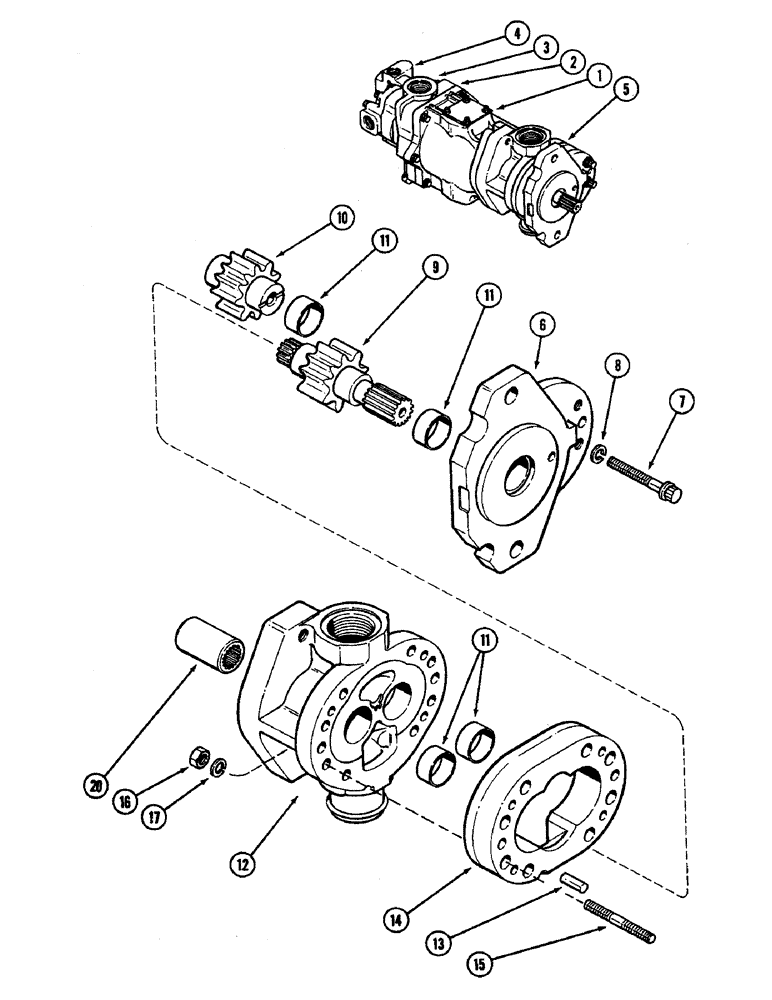

Запчасти Case IH 4890 (8-276) - TRIPLE HYDRAULIC PUMP ASSEMBLY, CHARGE PUMP SECTION (08) - HYDRAULICS

A162912

PUMP ASSEMBLY - triple hydraulic, Includes: Ref. 1 - 20, Start Serial: 8860322

1шт.

J I Case installed. For repairs order A149963 pump and A47882 relief spool.

1шт.

A149963

PUMP

ASSEMBLY - triple hydraulic, Includes: Ref. 1 - 20, Serial Range: -8860322

1шт.

1

129330A1

PUMP, HYDRAULIC,40.97 CC

PUMP ASSEMBLY - piston (See Figure 8-278) (Replaces NSS)

1шт.

1

129330A1R

REMAN-HYD PUMP

Piston Pump

1шт.

1

129330A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

REF

INSTRUCTION

COMPENSATOR ASSEMBLY - (See Figure 8-282)

1шт.

3

REF

INSTRUCTION

PUMP ASSEMBLY - gear (See Figure 8-284)

1шт.

4

REF

INSTRUCTION

VALVE ASSEMBLY - flow divider, front steering (See Figure 8-284)

1шт.

5

A47640

PUMP

ASSEMBLY - charge, Includes: Ref. 5 - 17

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW - cap

4шт.

8

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

9

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

11

NSS

NOT SOLD SEPARAT

BUSHING - gear

4шт.

12

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

13

NSS

NOT SOLD SEPARAT

DOWEL - body

2шт.

14

NSS

NOT SOLD SEPARAT

BODY - center section

1шт.

15

NSS

NOT SOLD SEPARAT

STUD - body

4шт.

16

NSS

NOT SOLD SEPARAT

NUT - stud

4шт.

17

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

20

A47641

COUPLING, BREAK AWAY

COUPLING - charge pump to piston pump

1шт.
