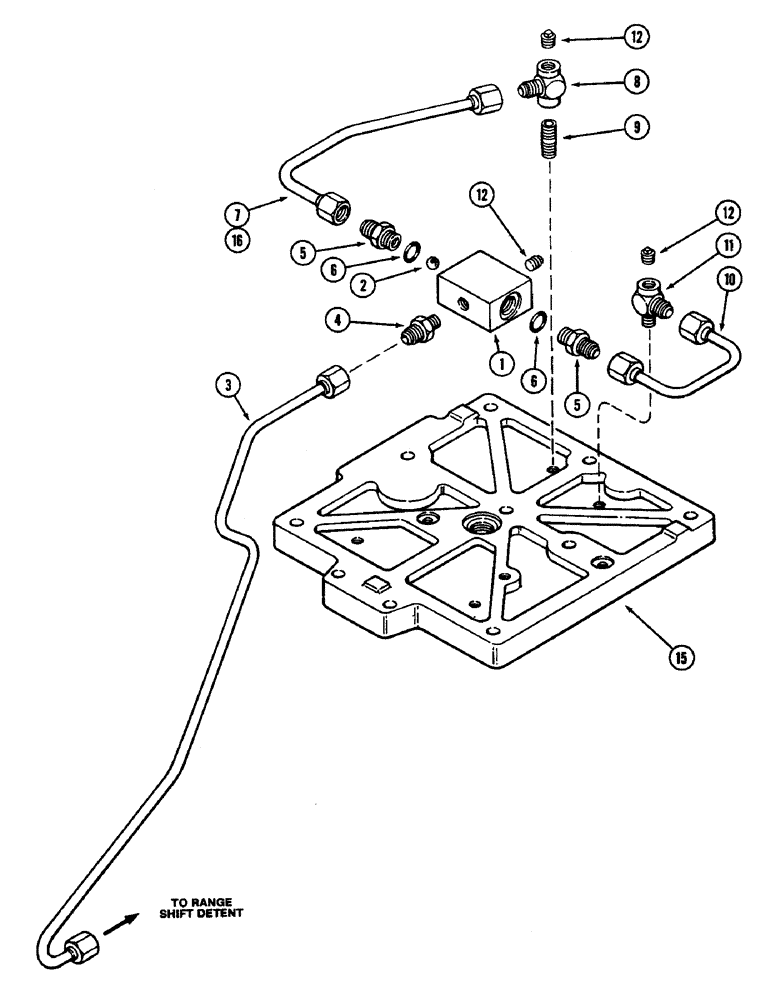

Запчасти Case IH 4890 (8-274) - RANGE SHIFT SHUTTLE VALVE (08) - HYDRAULICS

1

A151936

BLOCK

- shuttle valve

1шт.

2

211-12

BALL,7/16 Dia

- chrome steel, 7/16" (11.11 MM) Diameter

1шт.

3

A151940

TUBE

- valve to shift housing

1шт.

4

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - 5/16" (7.9 MM) Tube x 1/8" PT

1шт.

5

A151998

CONNECTOR, ELEC

CONNECTOR - ball seat, Serial Range: tube-valve

2шт.

7

A151938

TUBE

- shuttle, C3 clutch

1шт.

Prior to transmission serial no. 16200308.

1шт.

8

A154012

FITTING

CONNECTOR - (Branch type)

1шт.

9

221-104

FITTING

NIPPLE - 1/8" PT x 1-1/8" (28.6 MM) Long

1шт.

10

A151937

TUBE

- shuttle, C2 clutch

1шт.

11

A154214

FITTING

CONNECTOR - (Branch type)

1шт.

12

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT square head

3шт.

6

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk (0.32 x 14.3 x 2 mm)

2шт.

15

REF

INSTRUCTION

COVER - valve, transmission control (See Figure 8-270)

1шт.

16

A157472

TUBE

- shuttle, C3 clutch

1шт.

Transmission serial no. 16200308 and after.

1шт.
