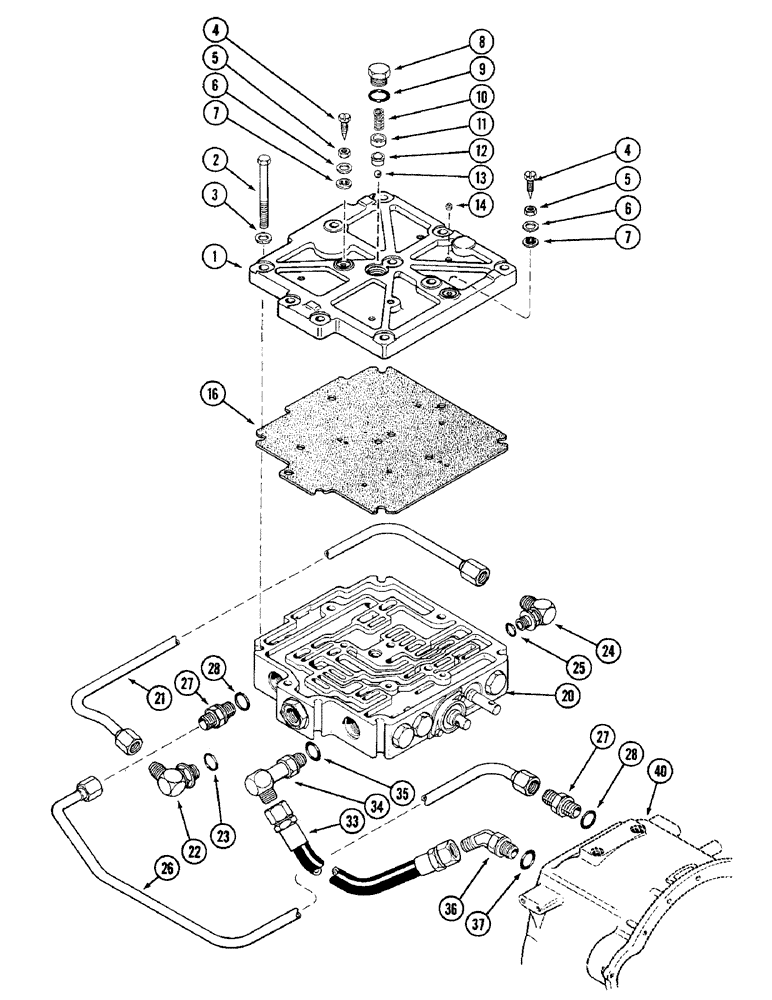

Запчасти Case IH 4890 (8-270) - TRANSMISSION CONTROL VALVE SYSTEM (08) - HYDRAULICS

1

A155488

COVER

- valve, transmission control (Replaces A151421) (Order A157323 and A157324)

1шт.

Prior to transmission serial no. 10260523.

1шт.

1

A157323

COVER

- valve, transmission control

1шт.

Transmission serial no. 10260523 and after.

1шт.

2

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" NC hex. (Grade 5)

10шт.

3

A50820

WASHER

- 25/64 x 3/4 x 7/64" hardened (9.85 x 19.05 x 2.78 MM) (Replaces A140282)

10шт.

4

A136916

NEEDLE

- retard orifice

2шт.

5

25-154

JAM NUT,Jam, 1/4"-28, G5

Hex Jam, 1/4"-28, G5

2шт.

6

122-13

GROMMET

WASHER - 1/4" steel

2шт.

7

A59074

SEAL

- thread

2шт.

8

A62588

PLUG

- detent

1шт.

10

A61696

SPRING

- detent ball

1шт.

11

A62107

SPACER

- detent

1шт.

12

A59062

SLEEVE

- detent

1шт.

13

211-12

BALL,7/16 Dia

- chrome steel, 7/16" (11.1 MM) Diameter

1шт.

14

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT square head

3шт.

16

A151615

GASKET

-, Serial Range: cover-valve

1шт.

Prior to transmission serial no. 10260523.

1шт.

16

A157324

GASKET

-, Serial Range: cover-valve

1шт.

Transmission serial no. 10260523 and after.

1шт.

20

A148160

VALVE

ASSEMBLY - transmission control (See Figure 8-272)

1шт.

21

A63294

TUBE

- pilot, reverse lockout

1шт.

22

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, Includes: Ref. 23

1шт.

24

A63295

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18 O-Ring

ASSEMBLY - 90 degree, Includes: Ref. 25

1шт.

25

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.9 x 15.9 x 2 mm)

1шт.

26

A140747

TUBE

- valve to clutch housing

1шт.

27

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, Incl. Ref 28

2шт.

33

A148280

HOSE,0.50" ID x 14.00", SAE 100R1

- Valve to clutch housing 0.50" ID x 14.00", SAE 100R1

1шт.

34

A62102

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16 O-Ring, Long

ASSEMBLY - tube to valve, Includes: Ref. 35

1шт.

36

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 45 degree, Incl. Ref 37

1шт.

40

A140730

HOUSING

- clutch (See Figure 6-164)

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.3 x 20.6 x 2.4 MM)

1шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.3 x 20.6 x 2.4 MM)

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.3 x 20.7 x 2.4 MM)

1шт.

35

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/15 x 3/32" (16.3 x 20.6 x 2.4 MM)

1шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 5/32" (16.3 x 20.6 x 2.4 MM)

1шт.
