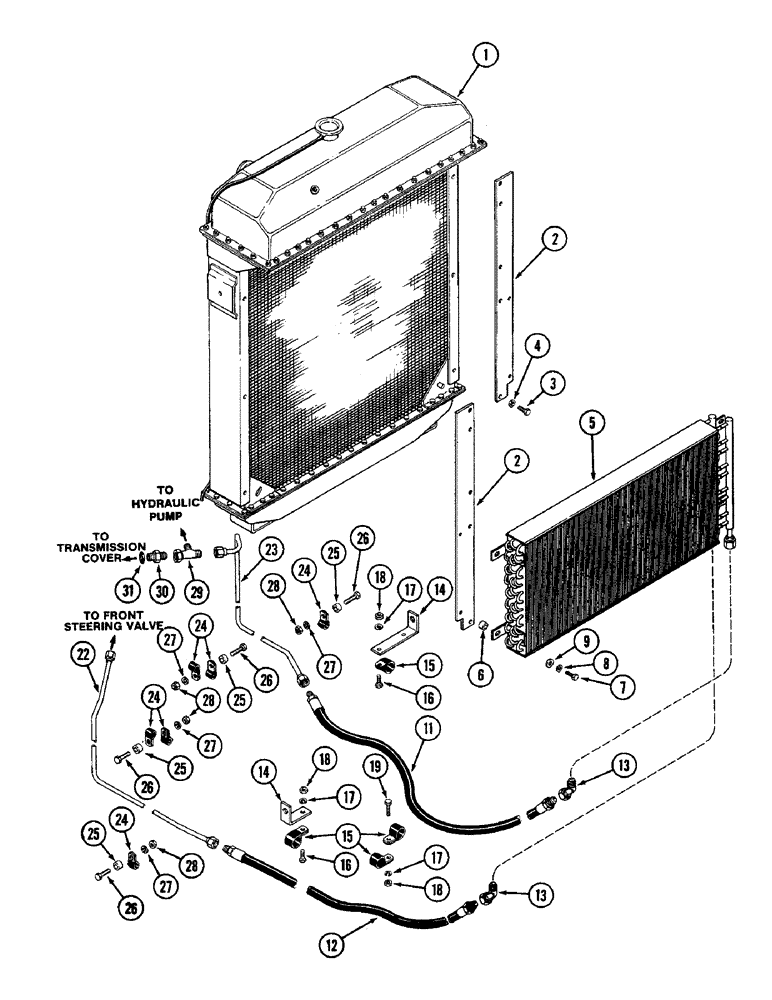

Запчасти Case IH 4890 (8-266) - HYDRAULIC OIL COOLER, 674 CUBIC INCH DIESEL ENGINE (08) - HYDRAULICS

1

REF

INSTRUCTION

RADIATOR - engine coolant (See Figure 2-06)

1шт.

2

A160167

SUPPORT

-, Serial Range: cooler-radiator

2шт.

3

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

6шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

5

A151160

COOLER

- hydraulic oil

1шт.

6

A37418

SPACER

- cooler mounting

4шт.

7

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

4шт.

11

A162282

HYDRAULIC HOSE,0.50" ID x 39.00", SAE 100R2 per SAE J517

- Return, Oil cooler (Replaces A140422) 0.50" ID x 39.00", SAE 100R2 per SAE J517

1шт.

12

A162284

HYDRAULIC HOSE,0.50" ID x 55.00", SAE 100R2 per SAE J517

- Inlet, Oil cooler (Replaces A150842 and A161982) 0.50" ID x 55.00", SAE 100R2 per SAE J517

1шт.

13

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

Cooler 45º, 3/4"-16, 37º x 3/4"-16, 37º Fem Sw

2шт.

14

A138761

SUPPORT

- hose clamp

2шт.

15

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- (Replaces 49885)

4шт.

15

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- (Order D20302)

4шт.

16

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

19

187-1305

SELF-TAP SCREW,Hex, 3/8" - 18 x 1 1/4"

BOLT - 3/8 x 1-1/4" NC hex., special (Use with D20302 clamp)

1шт.

19

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Use with 49885 clamp) Hex, 3/8"-16 x 1 1/2", G5

1шт.

22

A140428

TUBE

- inlet hose, oil cooler

1шт.

23

A140427

TUBE

- return hose, oil cooler

1шт.

24

49838

CLAMP

- tube

6шт.

25

A140435

BUSHING

SPACER - clamp, 5/16" (7.94 MM) Long

4шт.

26

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

29

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

CONNECTOR - swivel, (T type)

1шт.

30

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY, Incl. Ref 31

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.27 x 20.64 x 2.38 MM)

1шт.
