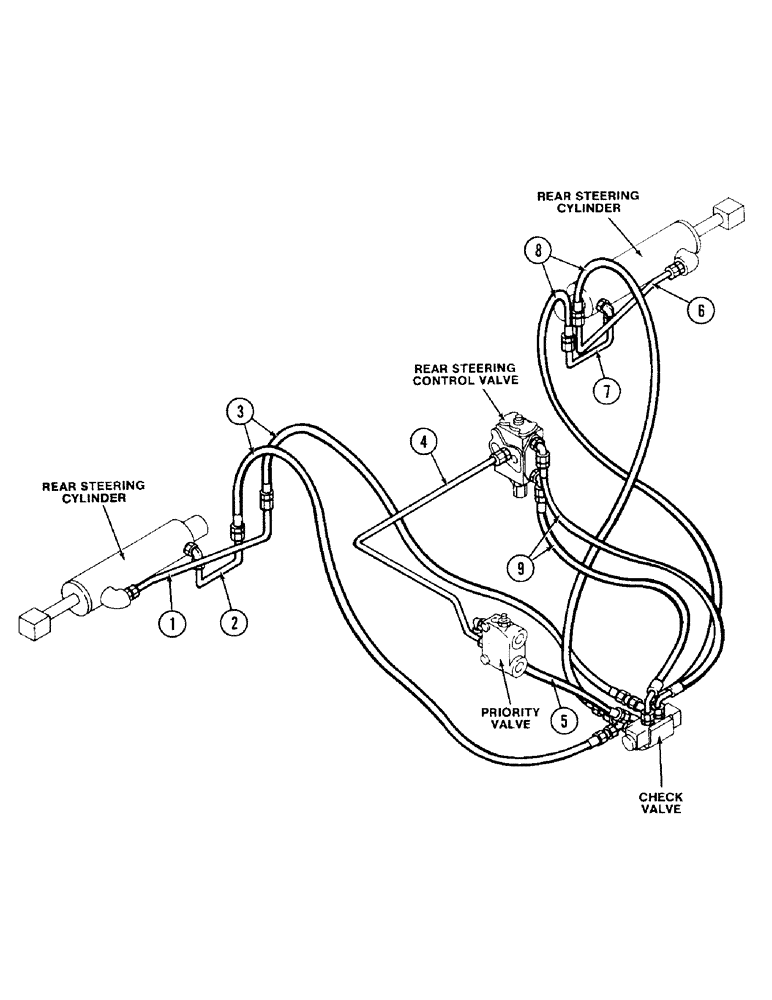

Запчасти Case IH 4890 (1-18) - PICTORIAL INDEX (00) - PICTORIAL INDEX

1

Cylinder Hose to Right Hand Steering Tube, Page 5-147

1шт.

2

Valve Hose to Cylinder Tube, Page 5-147

1шт.

3

Check Valve to Cylinder Tube Hose, Page 5-147

1шт.

4

Priority Valve to Steering Control Valve Tube, Page 5-143B

1шт.

5

Priority Valve to Check Valve Hose, Page 5-143B

1шт.

6

Cylinder Hose to Left Hand Steering Tube, Page 5-147

1шт.

7

Valve Hose to Cylinder Tube, Page 5-147

1шт.

8

Check Valve to Cylinder Tube Hose, Page 5-147

1шт.

9

Control Valve to Check Valve Hoses, Pages 5-143B, 147

1шт.
