Запчасти Case IH 4890 (8-262) - HYDRAULIC PRESSURE REGULATOR VALVE ASSEMBLY (08) - HYDRAULICS

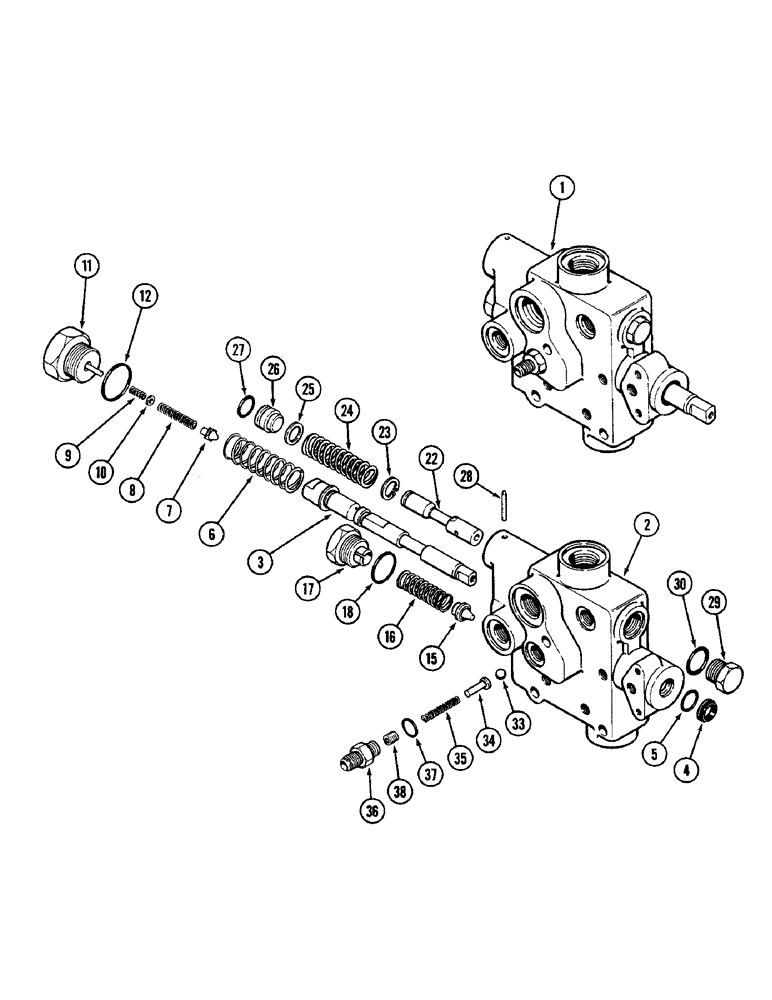

Схема запчастей Case IH 4890 - (8-262) - HYDRAULIC PRESSURE REGULATOR VALVE ASSEMBLY (08) - HYDRAULICS
3
18
35
37
24
28
30
1
11
23
6
33
34
8
7
10
5
12
29
4
38
17
25
22
27
9
16
36
15
26
2

Артикул

Название

Примечание

Количество

1

A139911

VALVE

ASSEMBLY - regulator, hydraulic pressure, Includes: Ref. 2 - 38

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - (Includes relief valve seat)

1шт.

3

A139912

SPOOL

- control, PTO

1шт.

4

A63660

RING

- wiper, control spools

1шт.

5

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- spool, 5/8 x 13/16 x 3/32" (15.9 x 20.63 x 2.38 MM)

1шт.

6

A139739

SPRING

- return, control spool, 1" OD x 3-13/64" free length (25.4 x 81.36 MM)

1шт.

7

A61991

POINT

- modulator, control spool

1шт.

8

A141647

SPRING

- modulator, 1-55/64" (47.2 MM) Free length

1шт.

9

A139738

SPRING

- modulator, 5/8" (15.9 MM) Free length

1шт.

10

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide

1шт.

11

A139689

PLUG

ASSEMBLY - modulator, Includes: Ref. 12

1шт.

12

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-9/32 x 7/64" (26.6 x 32.5 x 2.78 MM)

1шт.

15

A60687

VALVE POPPET

POPPET - relief valve

1шт.

16

A60286

SPRING

- relief valve, 1-3/16" (30.2 MM) Free length

1шт.

17

A139173

PLUG

ASSEMBLY - relief valve, Includes: Ref. 18

1шт.

18

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32" (19.1 x 24.2 x 2.4 MM)

1шт.

22

A139708

SPOOL

- pressure regulator

1шт.

23

A60273

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

24

A60274

SPRING

- regulator spool, 2-7/8" (47.6 MM) Free length

1шт.

25

A149281

SHIM

- regulator spring, 1/64" (0.40 MM)

1шт.

26

A149282

PLUG

- regulator spring

1шт.

27

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- 11/16 x 7/8 x 3/32" (17.5 x 22.2 x 2.4 MM)

1шт.

28

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN - roll, 3/16 x 1-1/4" (4.8 x 31.8 MM)

1шт.

29

214389

PLUG,3/4" - 16 ORB

Assy, Valve, Includes Ref. 30 Hex Hd, 3/4"-16 ORB

1шт.

33

211-28

BALL,13/32" Dia

- detent, 13/32" (10.31 MM) Diameter

1шт.

34

A161859

SPRING

PIN - detent spring guide

1шт.

35

A141647

SPRING

- detent, 1-55/64" (47.7 MM) Free length

1шт.

36

A169229

HYD CONNECTOR

CONNECTOR ASSEMBLY - clutch tube (Replaces A160659), Includes: Ref. 37 and 38

1шт.

37

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.89 x 15.88 x 1.98 mm)

1шт.

38

A160657

SET SCREW,3/8" - 16

- set, detent

1шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.3 x 20.6 x 2.4 MM)

1шт.

Выбрано товаров: 31
