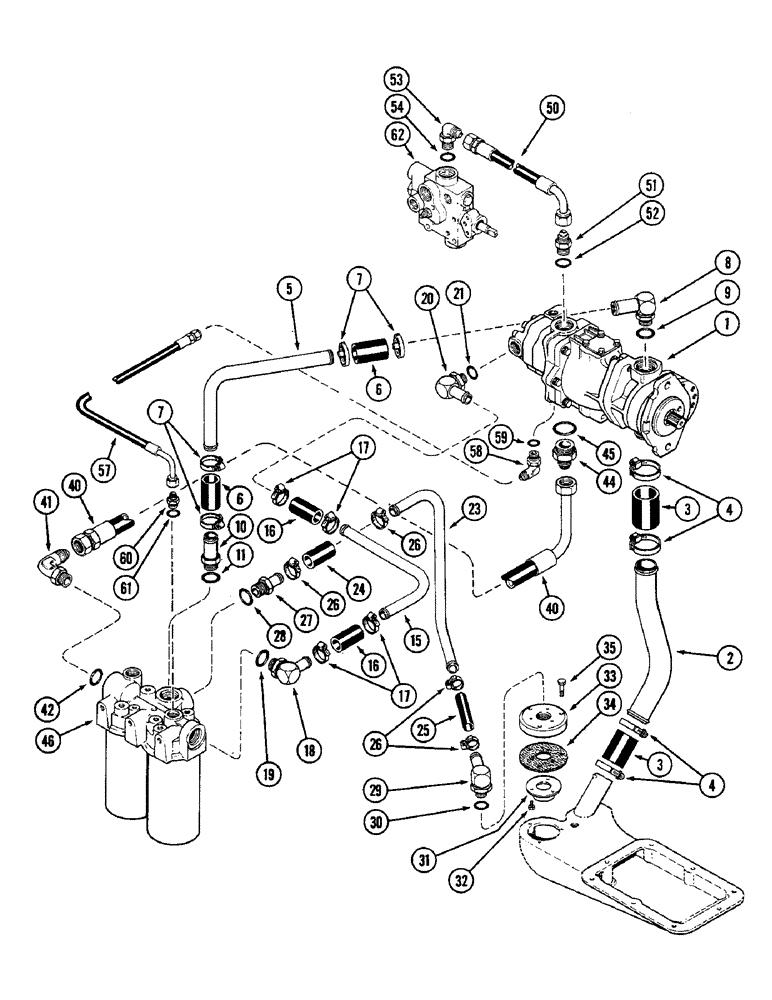

Запчасти Case IH 4890 (8-256) - HYDRAULIC CHARGE SYSTEM (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See Figure 8-276)

1шт.

2

A151130

TUBE

- suction, Serial Range: sump-pump

1шт.

3

A144526

HOSE

- suction tube, 2" ID x 3-1/32" long (50.8 x 76.8 MM)

2шт.

4

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose, 2-1/16" to 3" (52.4 to 76.2 MM)

4шт.

5

A160332

TUBE

- outlet, Serial Range: pump-filter

1шт.

6

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- outlet tube (Replaces A160210) 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(33.3 mm to 57.2 mm) #28, 1.31/2.25 Type F Worm

4шт.

8

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW, 90°, 1 1/4" Hose x 1 5/8"-12 ORB Beaded, Includes Ref. 9

1шт.

9

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/32 x 1-61/64 x 1/8" (43.7 x 59.6 x 3.2 MM)

1шт.

10

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, Incl. Ref. 11

1шт.

11

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/32 x 1-61/64 x 1/8" (43.7 x 59.6 x 3.3 MM)

1шт.

15

A160333

TUBE

- filter to gear pump

1шт.

16

A160211

HOSE,1.00" ID x 3.00", SAE 30R2 TYPE 2 PER SAE J30

1.00" ID x 3.00", SAE 30R2 - Gear Pump Tube

2шт.

17

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.2 to 44.5 MM)

4шт.

18

217-354

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW ASSEMBLY - 90 degree, Includes: Ref. 19

1шт.

19

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/32 x 1-61/64 x 1/8" (43.7 x 59.6 x 3.2 MM)

1шт.

20

217-366

FITTING,90 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 1" Hose x 1 1/16"-12 ORB Beaded, Assy, Includes Ref. 21

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64" (23.8 x 29.4 x 2.8 MM)

1шт.

23

A160334

TUBE

- filter to pressure relief valve

1шт.

24

A160211

HOSE,1.00" ID x 3.00", SAE 30R2 TYPE 2 PER SAE J30

1.00" ID x 3.00", SAE 30R2 - Tube to Filter

1шт.

25

L60332

HOSE

- tube to relief valve, 1" ID x 5" long (25.4 x 127.0 MM)

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.2 to 44.5 MM)

4шт.

27

217-173

FITTING,1" Hose Barb x 1-5/8" - 12 Male ORB

Includes Ref. 28 1" Hose x 1 5/8"-12 ORB, Beaded

1шт.

28

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/32 x 1-61/64 x 1/8" (43.7 x 59.6 x 3.2 MM)

1шт.

29

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW ASSEMBLY - 90 degree, Includes: Ref. 30

1шт.

30

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 7/64" (33 x 38.7 x 2.8 MM)

1шт.

31

A152794

VALVE

- relief, filter oil pressure

1шт.

32

113-37

BOLT,Locking, 1/4" - 20 x 3/4", Gr 5, Full Thd

- lock, 1/4 x 3/4" NC hex. (Grade 5)

3шт.

33

A152779

HOUSING

- pressure relief valve

1шт.

34

A152826

GASKET

-, Serial Range: housing-sump

1шт.

35

113-157

BOLT,Locking, 5/16" - 18 x 1-1/2", Gr 5

- lock, 5/16 x 1-1/2" NC hex. (Grade 5)

3шт.

40

A151166

HOSE

- filter to piston pump

1шт.

41

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ASSEMBLY - 90 degree adjustable, Includes: Ref. 42

1шт.

42

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/32 x 1-61/64 x 1/8" (43.7 x 59.6 x 3.2 MM)

1шт.

44

A147128

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - elbow to pump, Includes: Ref. 45

1шт.

45

9626930

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 2-3/32 x 2-21/64 x 1/8" (53.2 x 59.1 x 3.2 MM) (Replaces 218-5349)

1шт.

46

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic oil (See Figure 8-264)

1шт.

50

A148749

HOSE

- outlet, piston pump to regulator valve

1шт.

51

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, Incl. Ref. 52

1шт.

52

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 7/64" (33 x 38.7 x 2.8 MM)

1шт.

53

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 90 degree, Incl. Ref. 54

1шт.

54

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64" (23.8 x 29.4 x 2.8 MM)

1шт.

57

A151831

HOSE

- gear, Serial Range: pump-filter

1шт.

58

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, Includes: Ref. 59

1шт.

60

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, Includes: Ref. 61

1шт.

61

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64" (23.8 x 29.4 x 29.4 x 2.8 MM)

1шт.

62

REF

INSTRUCTION

VALVE ASSEMBLY - regulator (See Figure 8-262)

1шт.

59

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.3 x 20.6 x 2.4 MM)

1шт.
