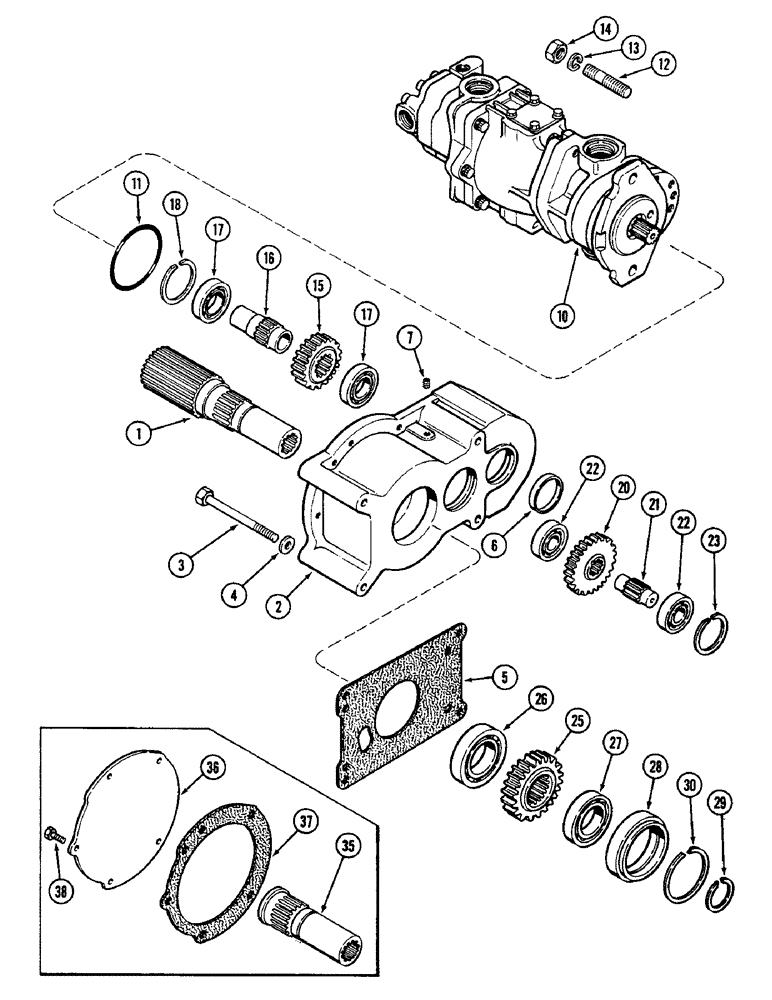

Запчасти Case IH 4890 (8-254) - HYDRAULIC PUMP DRIVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
A156124
SHAFT
- hydraulic pump drive and PTO input (Replaces A153924)
1шт.
2
A151698
HOUSING
- hydraulic pump drive
1шт.
3
13-896
BOLT,Hex, 1/2" - 13 x 6", Gr 5
4шт.
4
A30061
WASHER
- 17/32 x 15/16 x 1/16" (13.5 x 23.8 x 1.6 MM)
4шт.
5
A153700
GASKET
- housing to transmission case
1шт.
6
A24361
PLUG
- cup, 1-3/8" (34.9 MM) Diameter
1шт.
7
221-849
PLUG,Hex Soc, 1/8"-27
- 1/8" PT hex. socket
1шт.
10
REF
INSTRUCTION
PUMP ASSEMBLY - hydraulic (See Figure 8-276)
1шт.
11
49389
O-RING,0.21" Thk x 4.1" ID, -346, Cl 5, 75 Duro
- 4-1/8 x 4-1/2 x 3/16" (114.8 x 114.3 x 4.8 MM)
1шт.
12
A58195
STUD
- pump to housing, 5/8" NC x 3-1/2"
2шт.
13
95-10
WASHER,5/8"
- 11/16 x 1-3/4 x 9/64" (17.46 x 44.45 x 3.57 MM)
2шт.
14
25-1010
NUT,5/8"-11, G5
2шт.
15
A151310
GEAR
- drive, hydraulic pump coupling (26 teeth)
1шт.
16
A144124
COUPLING, BREAK AWAY
COUPLING - pump drive shaft
1шт.
17
A150525
BALL BEARING,1.5748" ID x 2.6772" OD x 0.5906"
BEARING - pump drive coupling
2шт.
18
A27414
RING
- snap, bearing
1шт.
20
A151311
GEAR
- idler, pump drive (31 teeth)
1шт.
21
A144122
SHAFT
- idler gear
1шт.
22
A150643
BALL BEARING,24.99mm ID x 62mm OD x 17mm W
BEARING - idler shaft
2шт.
23
T17410
SNAP RING,M62 x 1.58mm Thk, Int
RING - snap, bearing
1шт.
25
A151309
GEAR
- drive, input shaft (32 teeth)
1шт.
26
A150644
BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"
BEARING - rear, input shaft
1шт.
27
A150523
BALL BEARING,1.9685" ID x 3.5433" OD x 0.7874"
BEARING - front, input shaft
1шт.
28
A144120
RING
- pilot, front bearing
1шт.
29
A27089
SNAP RING,2.36mm Thk, Ext
RING - snap, Serial Range: bearing-shaft
1шт.
30
G46143
RING
- snap, bearing to pilot ring
1шт.
35
A144136
COUPLING, BREAK AWAY
COUPLING SHAFT - drive (Without PTO)
1шт.
36
A144137
COVER
- rear, pump drive housing (Without PTO)
1шт.
37
A153699
GASKET
- cover
1шт.
38
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
Выбрано товаров: 30
