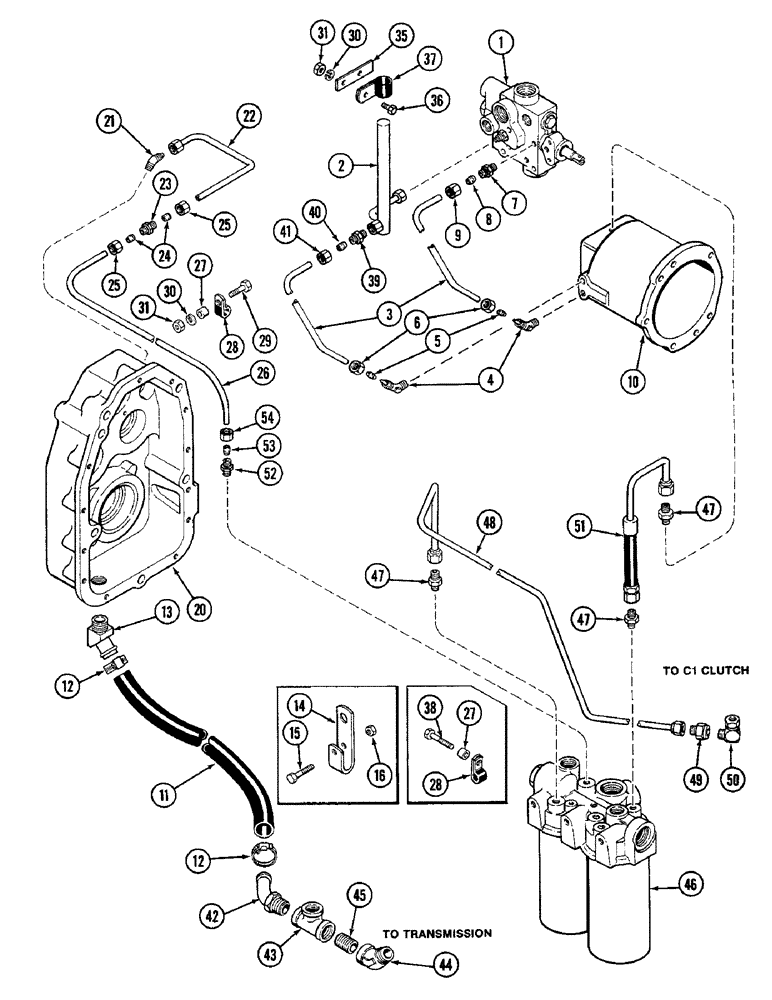

Запчасти Case IH 4890 (8-252) - PTO HYDRAULICS AND LUBRICATION TUBES, P.I.N. 8860450 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic regulator (See Figure 8-262)

1шт.

2

A162181

TUBE

ASSEMBLY - PTO clutch

1шт.

3

A75811

TUBE

HOSE - 34" long (863.6 MM)

2шт.

4

222-2726

ELBOW,45 Degree, 17/32"-24 x 1/4" NPT, Comp

ASSEMBLY - 1/4" PT, 45 degree, Includes: Ref. 5 and 6

2шт.

5

222-2611

SLEEVE

- flanged, 3/8" tube

1шт.

6

222-2601

NUT

NUT - 17/32"-24 hex., 3/8" tube

1шт.

7

222-5100

CONNECTOR, ELEC,17/32"-24 x 1/8" NPT

CONNECTOR ASSEMBLY - straight, 3/8" tube, Includes: Ref. 8 and 9

1шт.

8

222-5186

SLEEVE,3/8" Tube

- tapered, 3/8" Tube

1шт.

9

222-5181

NUT,9/16"-24

NUT - hex., 3/8" tube 9/16"-24

1шт.

10

REF

INSTRUCTION

HOUSING - PTO clutch (See Figure 6-234)

1шт.

11

A140780

HOSE,1.00" ID x 83.00", SAE 30R2 TYPE 1

1.00" ID x 83.00", SAE 30R2 - PTO drain

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

13

217-146

ELBOW,45 Degree Elbow, 1" Hose Barb x 1" Male NPTF

- 45 degree

1шт.

14

A140779

SUPPORT

- PTO drain hose

1шт.

15

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

16

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

1шт.

20

REF

INSTRUCTION

HOUSING - PTO (See Figure 6-236)

1шт.

21

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

1шт.

22

A162247

TUBE

ASSEMBLY - PTO lubrication

1шт.

23

222-2651

HYD CONNECTOR,17/32"-24

CONNECTOR ASSEMBLY - straight, Includes: Ref. 24 and 25

1шт.

24

222-2611

SLEEVE

- flanged, 3/8" tube

2шт.

25

222-2601

NUT

NUT - 17/32"-24, 3/8" tube

2шт.

26

A61107

TUBE

- PTO lubrication, 65" long (1651.0 MM) (Order A62027)

1шт.

27

A76093

BUSHING

SPACER - tube clamp, 1/2" long (12.7 MM)

2шт.

28

49845

CLAMP

- tube

4шт.

29

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

5шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

31

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

35

A161150

BRACKET

- tube clamp

1шт.

36

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

37

R14668

CLAMP

- retaining

1шт.

38

187-1300

SELF-TAP SCREW,Hex, 3/8" - 18 x 1"

SCREW - 3/8 x 1" hex., self-tapping

2шт.

39

222-5101

CONNECTOR, ELEC,17/32"-24 x 1/4" NPT

CONNECTOR - straight, 3/8" tube, Includes: Ref. 40 and 41

1шт.

40

222-5186

SLEEVE,3/8" Tube

- tapered, 3/8" Tube

1шт.

41

222-5181

NUT,9/16"-24

NUT - hex., 3/8" tube 9/16"-24

1шт.

42

A76171

TUBE

- elbow

1шт.

43

221-1695

TEE,Street, 1" NPT

- connector, 1" PT

1шт.

44

221-1406

ELBOW

- 1" PT, 45 degree

1шт.

45

221-1236

FITTING,Nipple, 1" NPT x 1 1/2"

NIPPLE - 1" PT x 1-1/2" long

1шт.

46

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic oil (See Figure 8-264)

1шт.

47

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, 3/8" tube

3шт.

48

A146890

TUBE

ASSEMBLY - C-1 clutch lubrication

1шт.

49

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

- 3/4" NF to 9/16" NF, 1/2" to 3/8" tube

1шт.

50

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree

1шт.

51

A148033

TUBE

HOSE ASSEMBLY - PTO clutch lubrication

1шт.

52

222-2626

FITTING,17/32"-24 x 1/4" NPT, Comp

CONNECTOR ASSEMBLY - straight, 3/8" tube, Includes: Ref. 53 and 54

1шт.

53

222-2611

SLEEVE

- flanged, 3/8" tube

1шт.

54

222-2601

NUT

NUT - 3/8" tube with 7/32"-24 thread

1шт.
