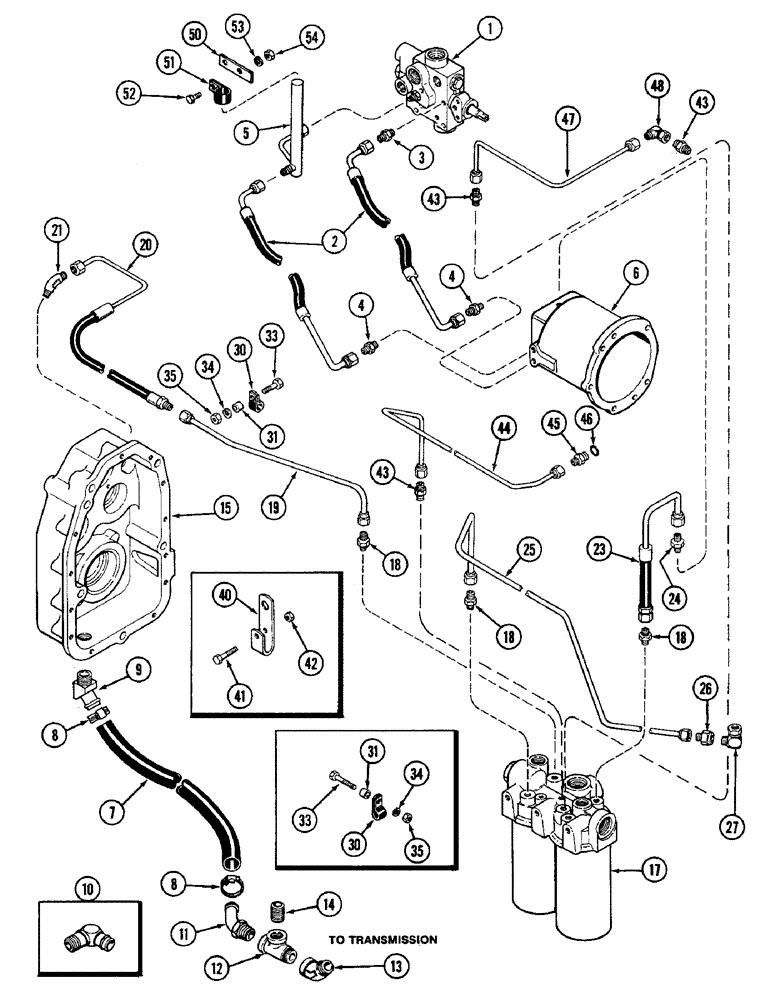

Запчасти Case IH 4890 (8-250) - PTO HYDRAULICS AND LUBRICATION TUBES, PRIOR TO P.I.N. 8860450 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - regulator, hydraulic pressure (See Figure 8-262)

1шт.

2

A161433

FITTING

HOSE - regulator valve to PTO clutch and brake (Replaces A144863)

2шт.

2

A144863

HOSE

- regulator valve to PTO clutch and brake (Replaced by A161433)

1шт.

3

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Straight, 3/8" tube (at valve) 9/16"-18, 37º x 1/8"-27, NPTF

2шт.

4

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, 3/8" tube x 1/4" PT (At PTO clutch)

2шт.

5

A161053

TUBE

- damping, PTO clutch

1шт.

6

A144126

HOUSING

- PTO clutch (See Figure 6-234)

1шт.

7

A140780

HOSE,1.00" ID x 83.00", SAE 30R2 TYPE 1

1.00" ID x 83.00", SAE 30R2 - Drain, PTO housing

1шт.

8

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.2 to 44.5 MM)

2шт.

9

217-146

ELBOW,45 Degree Elbow, 1" Hose Barb x 1" Male NPTF

- barb stem, 1" hose x 1" PT 45 degree (At PTO housing), Start Serial: 8854761

1шт.

10

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

- barb stem, 1" hose x 1" PT 90 degree (At PTO housing), Serial Range: -8854761

1шт.

11

A76171

TUBE

- drain hose to transmission case

1шт.

12

221-1695

TEE,Street, 1" NPT

- 1" PT (Branch type)

1шт.

13

221-1406

ELBOW

- 45 degree street, 1" PT

1шт.

14

221-1236

FITTING,Nipple, 1" NPT x 1 1/2"

NIPPLE - 1" PT x 1-1/2" long

1шт.

15

A150060

HOUSING

ASSEMBLY - PTO (See Figure 6-236)

1шт.

17

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic oil (See Figure 8-264)

1шт.

18

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, 3/8" tube x 1/4" PT

3шт.

19

A150147

TUBE

- lube, PTO housing

1шт.

20

A161026

HOSE

- lube, PTO housing

1шт.

21

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

(3/8" tube) 45º, 9/16-18" 37º x 1/4"-18, NPTF

1шт.

23

A148033

TUBE

- lube, PTO clutch

1шт.

24

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, 3/8" tube x 1/4" PT

1шт.

25

A146890

TUBE

- lube, (C-1) Clutch

1шт.

26

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

- 1/2" tube x 3/8" tube

1шт.

27

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel

1шт.

30

49845

CLAMP

- lube tube

6шт.

31

A76093

BUSHING

SPACER - clamp

5шт.

33

187-1300

SELF-TAP SCREW,Hex, 3/8" - 18 x 1"

SCREW - 3/8 x 1" hex. Taptite, (C-1) Clutch lube tube

2шт.

33

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

33

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

40

A140779

SUPPORT

- PTO drain hose

1шт.

41

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

42

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - lock, 5/16" NC hex.

1шт.

43

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - 9/16"-18 male PT

3шт.

44

A148817

TUBE

- lube, C-3 clutch

1шт.

45

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR ASSEMBLY - straight, Includes: Ref. 46

1шт.

47

A150252

TUBE

- lube, transmission shaft

1шт.

48

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel

1шт.

50

A161150

BRACKET

- clamp, damping tube

1шт.

51

R14668

CLAMP

- tube

1шт.

52

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

53

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

54

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

46

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.3 x 20.6 x 2.4 MM)

1шт.
