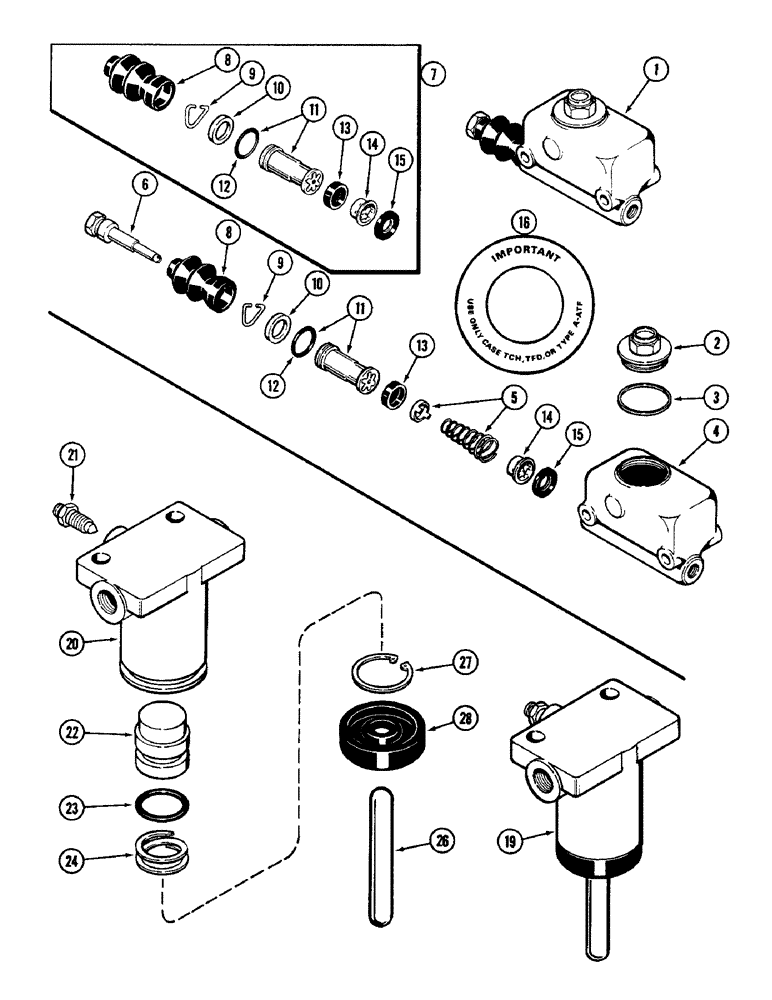

Запчасти Case IH 4890 (7-248) - BRAKE MASTER CYLINDER, BRAKE SLAVE CYLINDER (07) - BRAKES

1

A59534

CYLINDER

ASSEMBLY - master brake, Includes: Ref. 2 - 15

2шт.

2

A19918

CAP

- filler

1шт.

3

A19755

GASKET

- filler cap

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - master brake (Order A59534)

1шт.

5

33352

SPRING

AND RETAINER ASSEMBLY - return, piston

1шт.

6

A42371

ROD

- push, brake cylinder

1шт.

7

U242369

TRACK SHOE

- master brake cylinder repair, Includes: Ref. 8 - 15

1шт.

8

A42370

BOOT

COVER - master cylinder

1шт.

9

33347

LOCKING DEVICE

LOCKWIRE - master cylinder stop plate

1шт.

10

33348

- stop, master cylinder piston

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - master cylinder (Order A42366), Includes: Ref. 12

1шт.

12

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

- 9/16 x 3/4 x 3/32" (14.3 x 19.1 x 2.4 MM)

1шт.

13

A42368

CUP ASSY.

CUP - primary, master cylinder

1шт.

14

A47245

VALVE

ASSEMBLY - check

1шт.

15

A47246

VALVE

ASSEMBLY - check valve

1шт.

16

A61114

DECAL

TAG - fluid warning

1шт.

19

A62483

CYLINDER

ASSEMBLY - brake slave, 7/8" (22.2 MM) Diameter, Includes: Ref. 20 - 28 and kit

2шт.

20

NSS

NOT SOLD SEPARAT

BODY - brake slave cylinder (Order A62483)

1шт.

21

A41491

BLEEDER,1/4" - 28 x 23.37mm

- brake slave cylinder

1шт.

22

A45383

PISTON

ASSEMBLY - brake slave cylinder, Includes: Ref. 23 and 24

1шт.

23

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- 11/16 x 7/8 x 3/32" (8.7 x 22.2 x 2.4 MM)

1шт.

Part of cylinder repair kit, P/N A42258

1шт.

24

A42252

SEALING RING

RING - backup, piston seal

1шт.

Part of cylinder repair kit, P/N A42258

1шт.

26

A42254

ROD

- push, cylinder

1шт.

Part of cylinder repair kit, P/N A42258

1шт.

27

A42256

SNAP RING,0.901", Int, #90

1шт.

Part of cylinder repair kit, P/N A42258

1шт.

28

A42255

BOOT

COVER - brake slave cylinder rod

1шт.

Part of cylinder repair kit, P/N A42258

1шт.

A42258

KIT

- cylinder repair, Includes: Refs. 23, 24, 26, 27 and 28

1шт.
