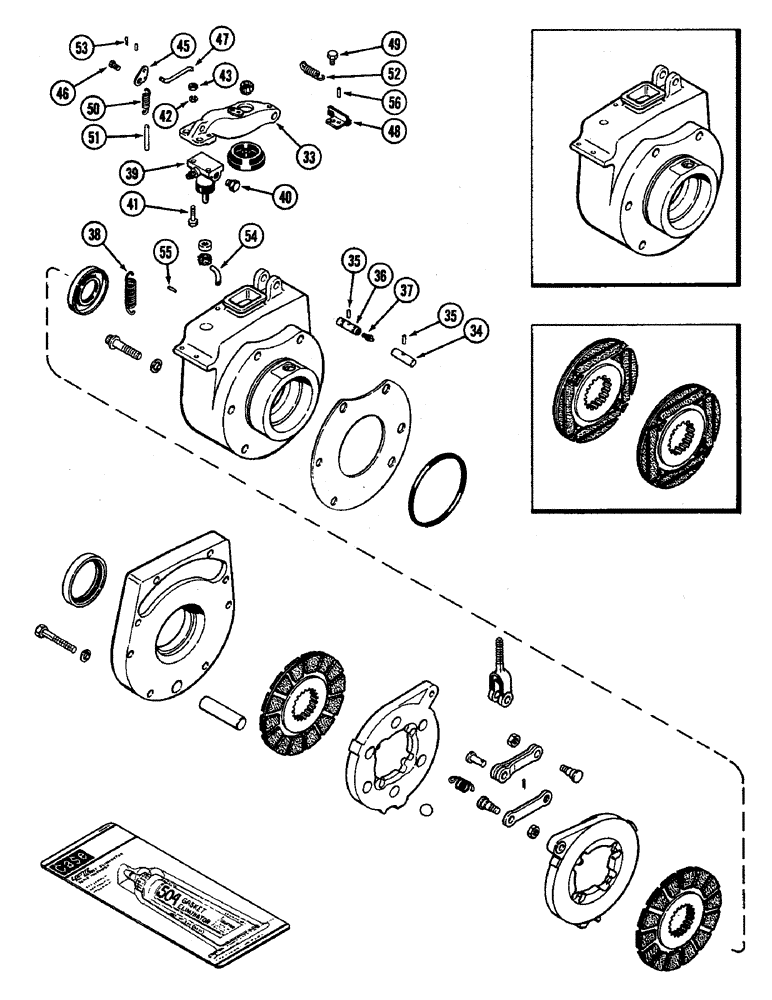

Запчасти Case IH 4890 (7-245A) - TRANSMISSION BRAKE (07) - BRAKES

33

A154640

LEVER

- brake actuating

1шт.

34

A62822

PIN

- pivot, lever to housing (Order ref 36 and 37)

1шт.

Prior to transmission serial no. 16200515.

1шт.

35

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, (4.8 x 19.1 mm) 3/16" x 1 1/4", Slotted

1шт.

36

A154569

PIN

- pivot, Serial Range: lever-housing

1шт.

Transmission serial no. 16200515 and after.

1шт.

37

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Short 90º, 1/8" NPT x .84" lg

1шт.

38

A35789

SPRING

- return, lever

2шт.

39

A62483

CYLINDER

ASSEMBLY - slave, transmission brake (See Figure 7-248)

1шт.

40

222-1062

PLUG,7/16"-24, Inv Fl

- 1/4" (6.4 mm) tube 7/16"-24, Inv Fl

1шт.

41

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

43

25-104

NUT,1/4"-20, G5

2шт.

45

A64490

CAM

- adjusting, brake

1шт.

46

A58471

STEP BOLT

BOLT - shoulder 3/8" NC, Serial Range: (Cam-lever)

1шт.

47

A59607

ROD

-, Serial Range: cam-ratchet

1шт.

48

A59609

BRACKET

- adjusting cam

1шт.

49

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

50

A60489

SPRING

- adjusting, bracket tension

1шт.

51

A61216

ROD

- stop, spring

1шт.

52

A60555

SPRING

- bracket

1шт.

53

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

54

A59319

STUD

- spring hold down

1шт.

55

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, (4 x 15.9 mm) (Hold down stud) 5/32" x 5/8", Slotted

1шт.

56

138-20

LOCK PIN,5/64" x 1/2", Slotted

PIN, (2 x 12.7 mm) (Adjusting rod) 5/64" x 1/2", Slotted

1шт.
