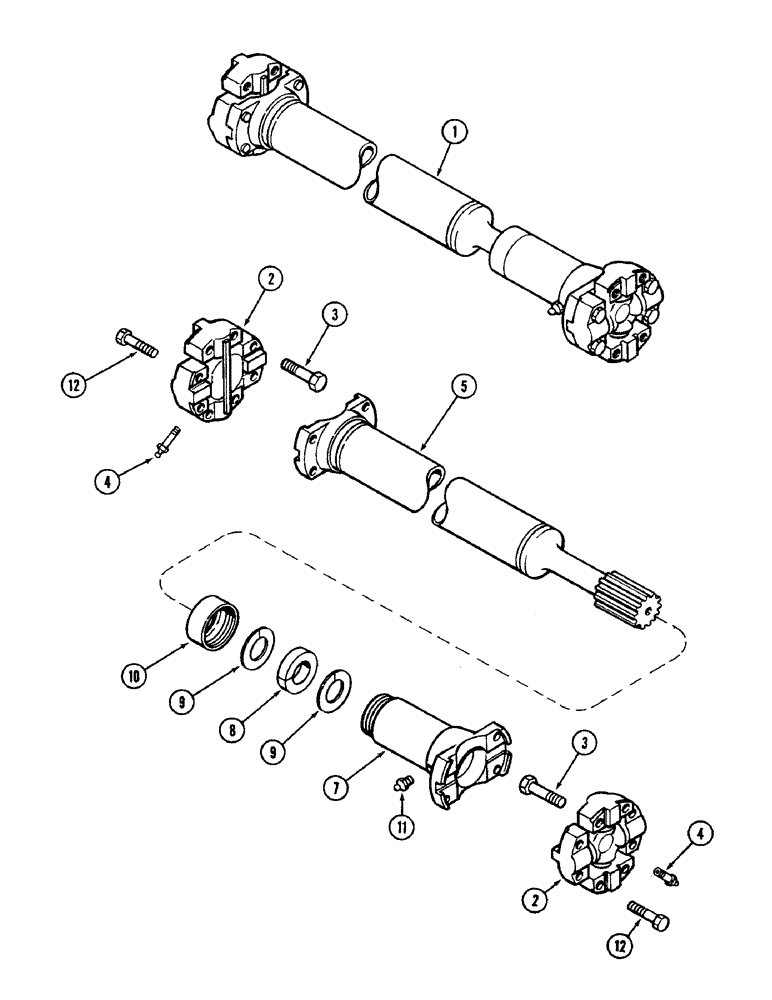

Запчасти Case IH 4890 (6-240) - PTO DRIVE SHAFT ASSEMBLY (06) - POWER TRAIN

1

A150297

SHAFT

ASSEMBLY - PTO drive, Includes: Ref. 2 - 12

1шт.

2

D76950

U-JOINT SPIDER

JOINT ASSEMBLY - drive shaft (Order D80329), Includes: Ref. 3 and 4

2шт.

3

A17298

BOLT,Hex, 3/8" x 1 11/16"

SCREW - cap, 3/8 x 1-11/16" NF hex. head

8шт.

4

219-417

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - lube, 1/4"-78 x 1-1/2" long

1шт.

5

A47520

TUBE

- drive shaft

1шт.

D73676

YOKE

ASSEMBLY - slip, Includes: Ref. 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

YOKE - slip (Order D73676)

1шт.

8

D73711

FELT SEAL

- felt

1шт.

9

D73712

WASHER

- seal retainer

2шт.

10

A19923

CAP

- retainer

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" straight

1шт.

12

A17298

BOLT,Hex, 3/8" x 1 11/16"

SCREW - cap, 3/8 x 1-11/16" NF hex. head

8шт.
