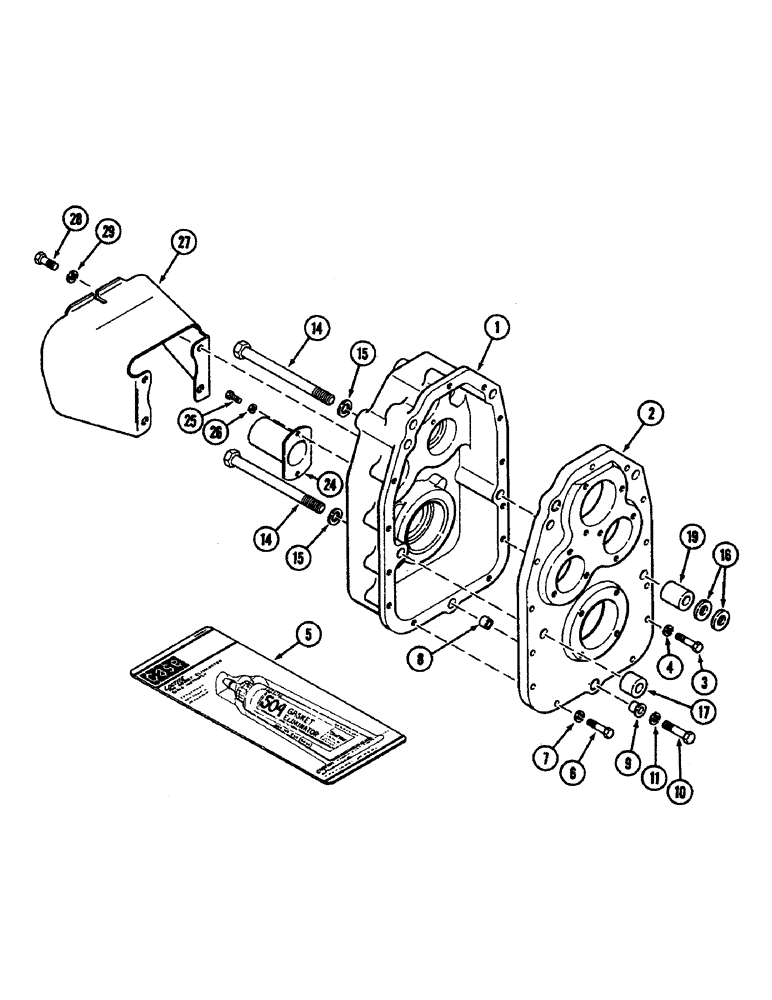

Запчасти Case IH 4890 (6-236) - PTO, HOUSING, COVER AND SHIELD (06) - POWER TRAIN

REF

INSTRUCTION

HOUSING ASSEMBLY - PTO (Order A155400 housing and 217-146 elbow), Includes: Ref. 1 - 4, Serial Range: -8854761

1шт.

A155400

HOUSING

ASSEMBLY - PTO, Includes: Ref. 1 - 4, Start Serial: 8854761

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - PTO (Order A155400)

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - housing front (Order A155400)

1шт.

3

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

B17428

LOCTITE

- gasket replacement, 2 ounces (50 CC) Tube

1шт.

6

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

8шт.

7

92-6

LOCK WASHER,3/8"

8шт.

8

A50011

SLEEVE

- dowel, Serial Range: cover-housing

2шт.

9

A32426

BUSHING

SPACER - dowel

2шт.

10

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

14

113-735

BOLT,Hex, 3/4" - 10 x 9", Gr 5

- 3/4 x 9" NC hex. (Grade 5)

4шт.

15

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

16

195-45

WASHER,3/4"

(Replaces A27449) 3/4"

4шт.

17

A138254

BUSHING

SPACER - lower mounting, 1-1/64" (29.8 MM) Wide

2шт.

19

A138255

BUSHING

SPACER - upper mounting, 1-51/64" (45.6 MM) Wide

2шт.

24

A58238

GUARD

- output shaft

1шт.

25

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

27

A62391

GUARD

SHIELD - shaft, universal joint

1шт.

28

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

29

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.
