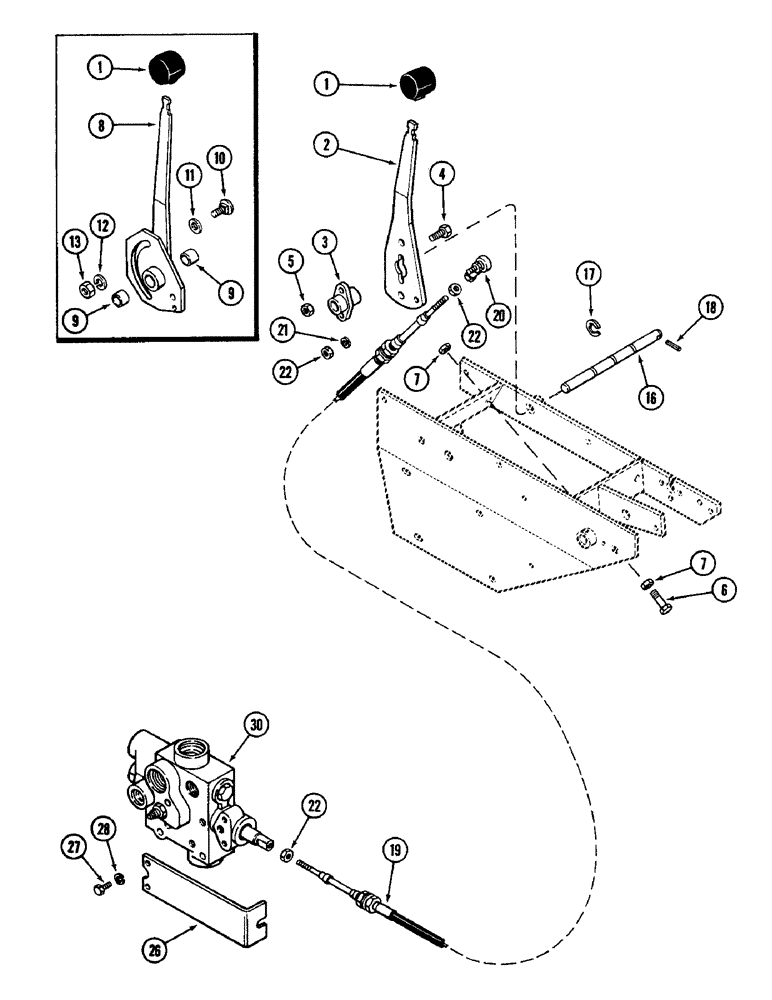

Запчасти Case IH 4890 (6-232) - PTO CONTROL LINKAGE (06) - POWER TRAIN

1

A137806

KNOB

- control lever

1шт.

2

A162363

LEVER

- PTO control, Start Serial: 8860450

1шт.

3

A162299

BEARING,15.95mm ID

- control lever, Start Serial: 8860450

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

, Start Serial: 8860450

2шт.

5

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA, Start Serial: 8860450

2шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Forward PTO stop Hex, 3/8"-16 x 1 1/4", G5, Full Thd, Start Serial: 8860450

1шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

8

A161020

BRACKET

LEVER ASSEMBLY - hand, PTO control, Includes: Ref. 9, Serial Range: -8860450

1шт.

9

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- pivot

2шт.

10

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, , Stop Short NK, 3/8"-16 x 3/4", G5, Serial Range: -8860450

2шт.

11

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM), Serial Range: -8860450

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8", Serial Range: -8860450

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5, Serial Range: -8860450

2шт.

16

A161039

SHAFT

- hand lever

1шт.

17

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, , shaft #62, .480" Dia, E-Type

2шт.

18

178-24

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set 1/4 x 1/4" NC headless socket

1шт.

19

A149528

CABLE

- control, Serial Range: lever-valve

1шт.

20

A75447

BALL JOINT

JOINT - ball

1шт.

21

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

22

129-37

NUT,#10-32

3шт.

26

A161005

BRACKET

- support, control cable

1шт.

27

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

REF

INSTRUCTION

CONSOLE - control (See Figure 9-366 and 9-368)

1шт.

30

REF

INSTRUCTION

VALVE ASSEMLBY - pressure regulator control (See Figure 8-262)

1шт.
