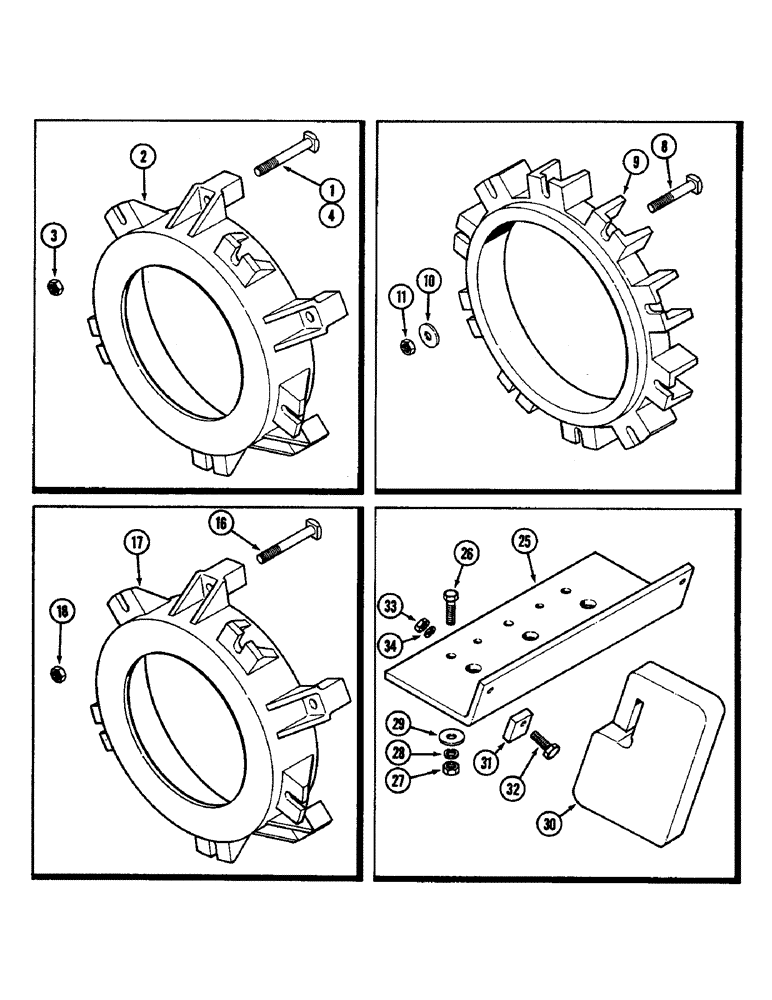

Запчасти Case IH 4890 (6-230) - WHEEL WEIGHTS (06) - POWER TRAIN

A142840

KIT - wheel weight, first set (Set of 2), Use with 30" (762 MM) or 34" (863.6 MM) Wheel (Machinery item), Includes: Ref. 1 - 3

1шт.

1

117-607

BOLT,Sq Hd, 3/4" - 10 x 6", Gr 5

- 3/4 x 6" NC square head, for 34" (863.6 MM) Wheel (See ref 4) (Grade 2)

10шт.

2

A140241

ADAPTER - wheel weight, 95 lbs (42.75 kg) Each

2шт.

3

129-108

NUT,3/4"-10, G5

10шт.

4

117-610

BOLT - 3/4 x 8" NC square head, order separately for 30" (762 MM) Wheel (Grade 2) Sq Hd, 3/4"-10 x 8", G5

10шт.

A75939

KIT - wheel weight, add on set (Set of 2) (Machinery item), Includes: Ref. 8 - 11

1шт.

8

117-606

BOLT,Sq Hd, 3/4" - 10 x 4-1/2", Gr 5

- 3/4 x 4-1/2" NC square head (Grade 2)

10шт.

9

A75550

WEIGHT - wheel, 100 lbs (220.5 kg) Each (Machinery item)

2шт.

10

195-109

WASHER,3/4"

- 13/16 x 2 x 3/16" (20.64 x 50.8 x 4.76 MM)

10шт.

11

129-108

NUT,3/4"-10, G5

10шт.

A142841

KIT - wheel weight (Set of 2) Use with 32" (812.8 MM) Wheel (Machinery item), Includes: Ref. 16 - 18

1шт.

16

117-610

BOLT - 3/4 x 8" NC square head (Grade 2) Sq Hd, 3/4"-10 x 8", G5

10шт.

17

A140241

ADAPTER - wheel weight, 95 lbs (42.75 kg) Each

2шт.

18

129-108

NUT,3/4"-10, G5

10шт.

A142308

ATTACHMENT - front end weight (Machinery item), Includes: Ref. 25 - 34

1шт.

25

A148867

PLATE

- mounting, front end weight

1шт.

26

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- 3/4 x 2-1/2" NC hex. (Grade 5)

3шт.

27

129-108

NUT,3/4"-10, G5

3шт.

28

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

29

A31266

WASHER

- mounting bolt, 25/32 x 2-1/8 x 3/16" (19.84 x 53.97 x 4.76 MM)

3шт.

30

A148862

COUNTERWEIGHT

WEIGHT - front end, 85 lbs (187.4 kg) (Machinery item)

10шт.

31

A142230

STOP

- weight

2шт.

32

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

33

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
