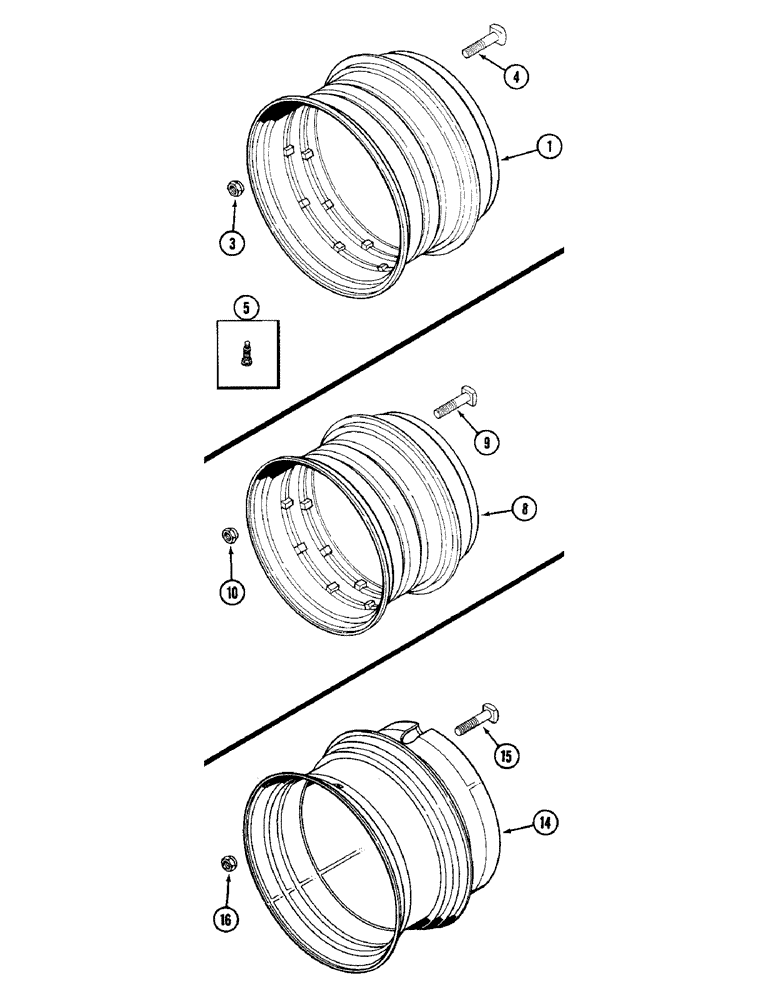

Запчасти Case IH 4890 (6-228) - DUAL WHEELS (06) - POWER TRAIN

1

A160663

WHEEL

RIM - outer, dual wheel, for 18.4" x 34" tire (467.4 x 863.6 MM) (Wide spacing)

4шт.

3

A160864

WHEEL NUT

- rim bolt, 3/4" NC hex., 90 degree seat

40шт.

4

A160853

SQUARE BOLT

- rim, 3/4 5-1/4" NC square head

40шт.

5

A20058

VALVE STEM

- Tubeless tire

4шт.

8

A160529

RIM

- outer, dual wheel, for 20.8" x 34" tire (528.3 x 863.6 MM) (Wide spacing)

4шт.

9

A160853

SQUARE BOLT

- rim, 1/4 x 5-1/4" NC square head

40шт.

10

A160864

WHEEL NUT

- rim bolt, 3/4" NC hex., 90 degree seat

40шт.

14

A162802

WHEEL

RIM - outer, dual wheel, for 18.4" x 34" tire (467.4 x 863.6 MM) (Replaces A161817) (Narrow spacing)

4шт.

14

A161512

SCREW

RIM - outer, dual wheel, for 18.4 x 38" tire (467.4 x 965.2 MM)

4шт.

14

A148140

RIM

- outer, dual wheel, for 20.8" x 34" tire (528.3 x 863.6 MM) (Narrow spacing)

4шт.

14

A161513

WHEEL

RIM - outer, dual wheel for 20.8 x 38" tire (528.3 x 965.2 MM)

4шт.

14

A160966

RIM

- outer, dual wheel, for 23.1 x 34" tire (586.74 x 863.6 MM)

4шт.

15

A160853

SQUARE BOLT

- 3/4 x 5-1/4" NC square head

40шт.

16

A160864

WHEEL NUT

- 3/4" NC hex., 90 degree seat

40шт.

A20058

VALVE STEM

- Tubeless tire (See ref 5)

4шт.
