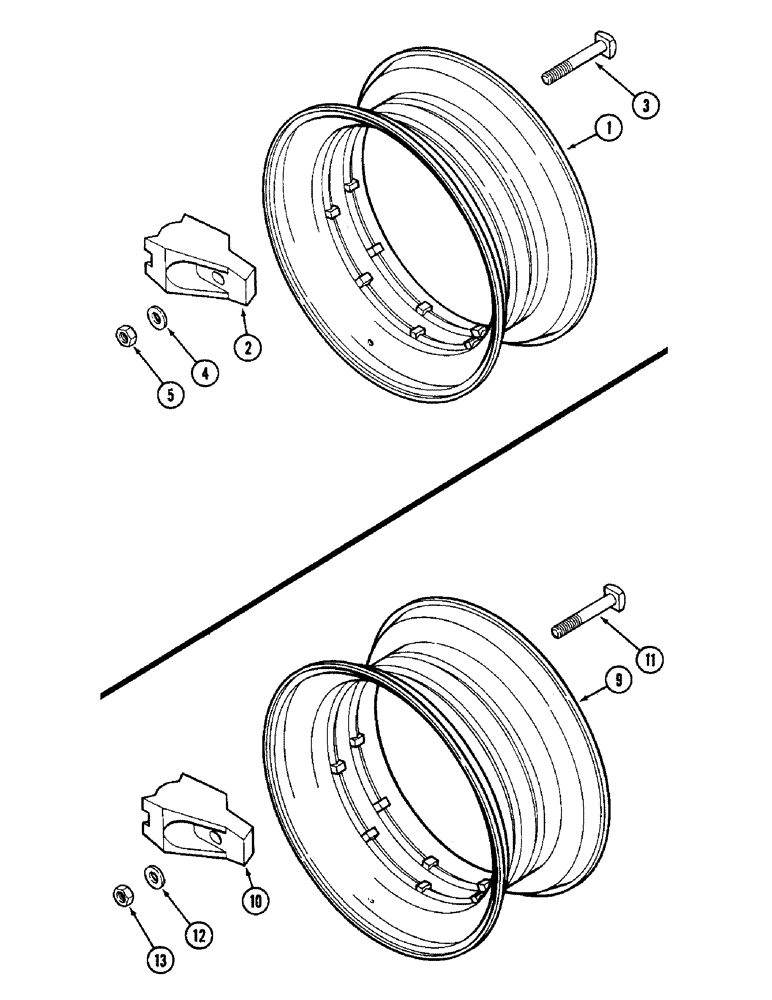

Запчасти Case IH 4890 (6-226) - SINGLE WHEELS, FOR 38 INCH (965.2 MM) TIRE (06) - POWER TRAIN

1

A160132

RIM

- wheel, for 18.4" x 38" tire (467.4 x 965.2 MM)

4шт.

2

A139724

CLAMP

- rim, double position

40шт.

3

A160853

SQUARE BOLT

- clamp, 3/4 x 5" NC square head

40шт.

4

A141125

WASHER

- clamp nut, 25/32 x 1-1/4 x 3/16" (19.84 x 31.75 x 4.76 MM)

40шт.

5

129-137

NUT,3/4"-10, G5

40шт.

9

A160133

RIM

- wheel, for 20.8 x 38" tire (528.3 x 965.2 MM)

4шт.

10

A139724

CLAMP

- rim, double position

40шт.

11

A160853

SQUARE BOLT

- clamp, 3/4 x 5" NC square head

40шт.

12

A141125

WASHER

- clamp nut, 25/32 x 1-1/4 x 3/16" (19.84 x 31.75 x 4.76 MM)

40шт.

13

129-137

NUT,3/4"-10, G5

40шт.
