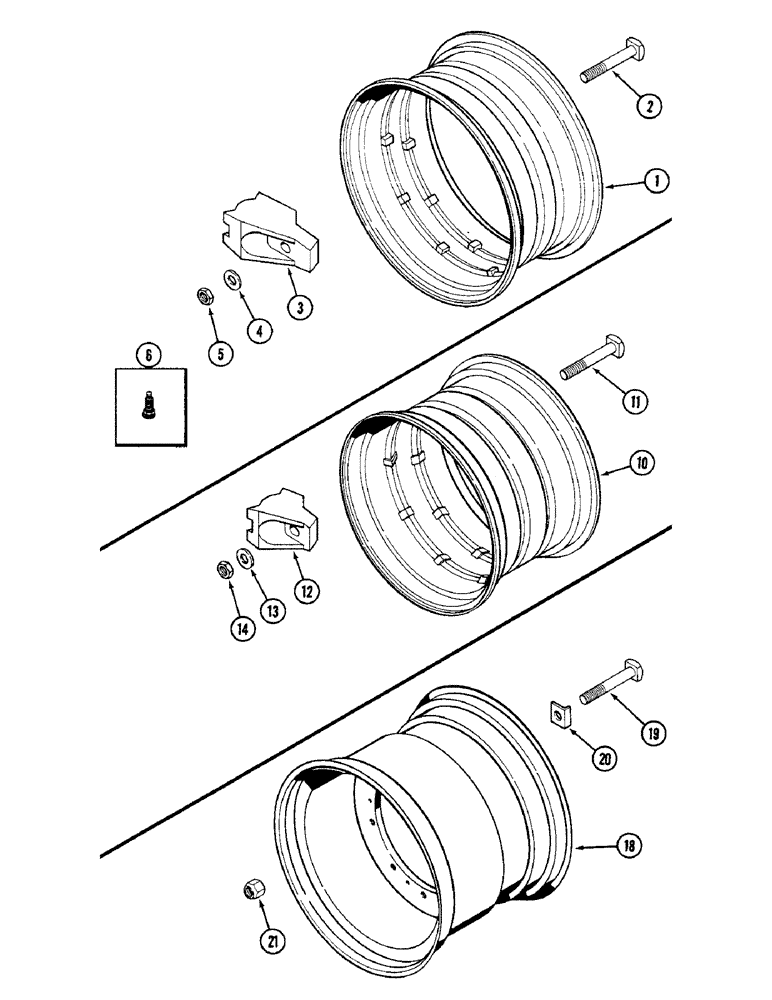

Запчасти Case IH 4890 (6-224) - SINGLE WHEELS (06) - POWER TRAIN

1

A75887

WHEEL

RIM - wheel, for 18.4" x 34" tire (467.4 x 863.6 MM)

4шт.

1

A75891

RIM

- wheel, for 20.8" x 34" tire (528.3 x 863.6 MM)

4шт.

1

A147805

WHEEL

RIM - wheel, for 23.1" x 34" tire (586.74 x 863.6 MM)

4шт.

2

A160853

SQUARE BOLT

- clamp, 3/4 x 5" NC square head

40шт.

3

A139724

CLAMP

- rim, double position

40шт.

4

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut, 25/32 x 1-1/4 x 3/16" (19.84 x 31.75 x 4.76 MM) (Replaces A141125)

40шт.

5

129-137

NUT,3/4"-10, G5

40шт.

6

A20058

VALVE STEM

- Tubeless tire

4шт.

10

A75890

RIM

- wheel, for 23.1" x 30" tire (586.7 x 762 MM)

4шт.

11

A160853

SQUARE BOLT

- clamp, 3/4 x 5" NC square head

40шт.

12

A75894

CLAMP

- rim, double position

40шт.

13

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut, 25/32 x 1-1/4 x 3/16" (19.84 x 31.75 x 4.76 MM) (Replaces A141125)

40шт.

14

129-137

NUT,3/4"-10, G5

40шт.

18

A77115

NO LONGER SERVICED

WHEEL - for 24.5" x 32" tire (622.3 x 812.8 MM)

4шт.

18

A148139

WHEEL

- for 30.5" x 32" tire (889 x 812.8 MM)

4шт.

19

117-614

SQUARE BOLT,3/4" - 10 x 4", Gr 5

- clamp, 3/4 x 4" NC square head

40шт.

20

A34799

LOCK WASHER

- bolt clamp lock

40шт.

21

A141621

NUT

- wheel, 3/4" NC hex. (Replaces A160864)

40шт.
