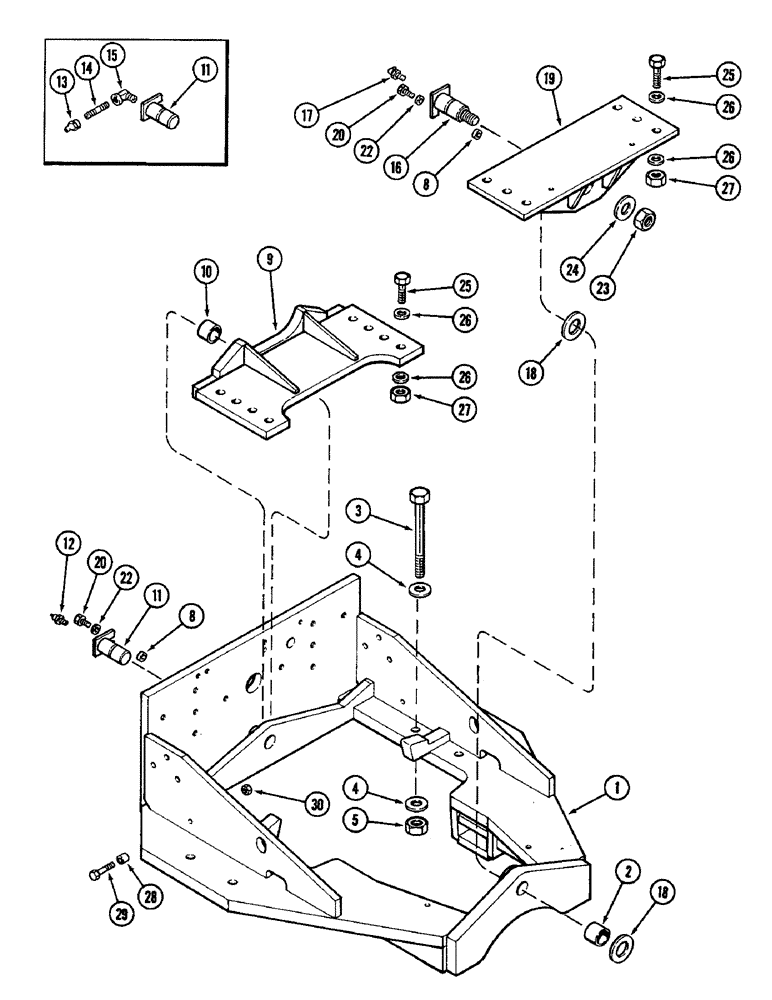

Запчасти Case IH 4890 (6-222) - REAR AXLE PIVOT TRUNNION (06) - POWER TRAIN

1

A161922

TRUNNION

- rear axle pivot (Replaces A149859)

1шт.

2

A142146

BUSHING

- front pivot 1-31/32 x 2-5/16 x 1-29/32" wide (50 x 58.7 x 48.9 MM)

2шт.

3

28-18176

BOLT,Hex, 1-1/8" - 12 x 11", Gr 8

- 1-1/8 x 11" NF hex. (Grade 8)

8шт.

4

A152201

WASHER

- trunnion bolt, 1-3/16 x 2-1/2 x 3/16" (30.1 x 63.5 x 4.8 MM)

16шт.

5

131-189

LOCK NUT,1 1/8"-12, GB

NUT - lock, 1-1/8" NF hex.

8шт.

8

A148908

SPACER

- trunnion pin

2шт.

9

A136969

SUPPORT

- rear, trunnion

1шт.

10

A12058

BUSHING,44.88mm ID x 53.92mm OD x 38.1mm L

- rear pivot, 1-3/4 x 2-1/8 x 1-1/2" wide (44.5 x 54 x 38.1 MM)

2шт.

11

A136978

PIN

- rear pivot

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" PT straight (Without PTO)

1шт.

13

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

FITTING - 1/8" female PT straight (With PTO)

1шт.

14

221-117

FITTING

NIPPLE - fitting, 1/8" PT x 6" (With PTO)

1шт.

15

219-82

ELBOW,90 Degree, 1/8"-27

- 1/8" male x 1/8" female, 90 degree (With PTO)

1шт.

16

A142162

PIN

- front pivot

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

18

A142147

WASHER

- thrust, front pivot, 2 x 3-1/2 x 5/64" (50.8 x 88.9 x 1.98 MM)

2шт.

19

A142150

SUPPORT

- front, trunnion

1шт.

20

113-480

BOLT,Locking, 1/2" - 13 x 1-1/2", Gr 5

- 1/2 x 1-1/4" NC hex. (Nylok) (Grade 5)

2шт.

22

L30674

WASHER

- pivot bolt, 17/32 x 7/8 x 1/8" (13.49 x 22.22 x 3.17 MM)

2шт.

23

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

24

195-59

WASHER,1 5/16" x 2 3/4" x .165"

- front pivot pin, 1-5/16 x 2-3/4 x 5/32" (33.34 x 69.85 x 3.97 MM)

1шт.

25

28-1452

BOLT,Hex, 7/8" - 14 x 3-1/4", Gr 8

- support, 7/8 x 3-1/4" NF hex. (Grade 8)

14шт.

26

A57033

WASHER

- support bolt, 15/16 x 1-1/2 x 1/4" (23.81 x 38.1 x 6.35 MM)

28шт.

27

131-187

LOCK NUT,7/8"-14, GB

NUT - lock, 7/8" NF hex.

14шт.

28

A140434

BUSHING

SPACER - tube mounting, 13/32 x 3/4 x 3/4" (10.32 x 19.05 x 19.05 MM), Start Serial: 8859234

2шт.

29

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

, Start Serial: 8859234

2шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5, Start Serial: 8859234

2шт.
