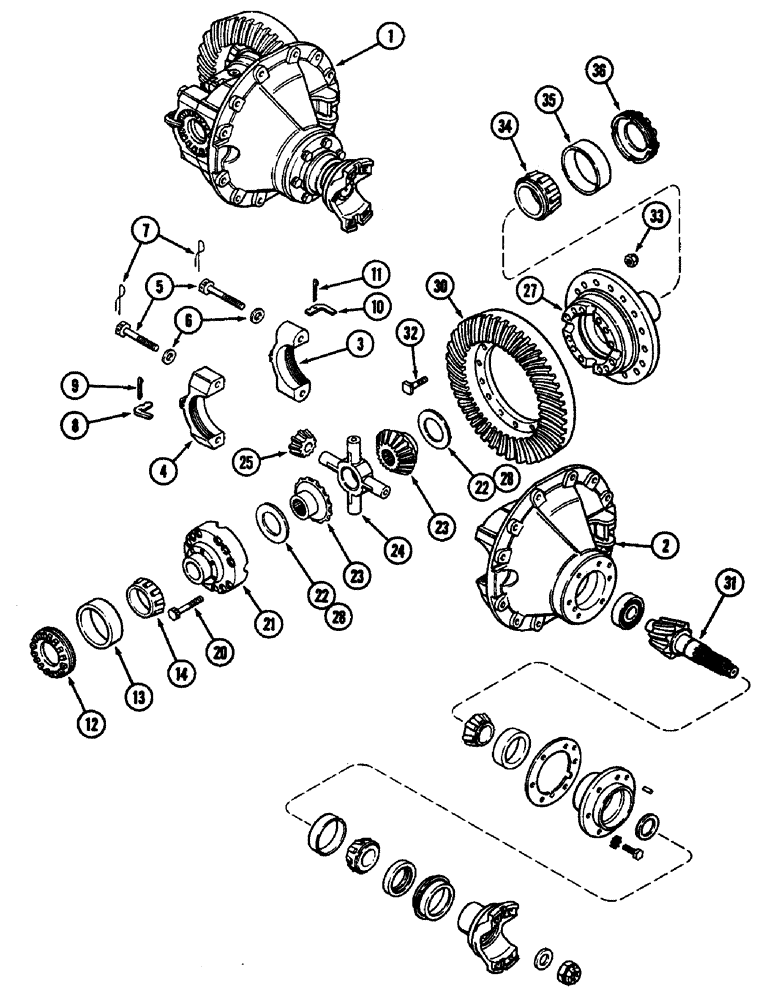

Запчасти Case IH 4890 (6-218) - REAR AXLE DIFFERENTIAL (06) - POWER TRAIN

1

A146465

CARRIER

ASSEMBLY - rear axle differential, Includes: Ref. 2 - 36 and 40 - 53 on Figure 6-220

1шт.

A45681

CARRIER

ASSEMBLY - differential, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

3

NSS

NOT SOLD SEPARAT

CAP - gear bearing

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - gear bearing

1шт.

5

A45042

BOLT

- bearing cap, 3/4 x 3-5/8" NC hex.

4шт.

6

A45041

WASHER

- cap bolt, 25/32 x 1-3/16 x 5/32" (19.84 x 30.16 x 3.97 MM)

4шт.

7

391-621

ELECTRICAL WIRE

WIRE - lock #16 gauge x 13" (Order 391-636, 50" long)

4шт.

8

A45666

LOCK

- adjusting, bearing carrier

1шт.

9

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), (4.76 x 25.4 mm) 3/16" x 1"

1шт.

10

A44217

LOCK

- adjusting, bearing carrier

1шт.

11

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), (6.35 x 50.8 MM) 1/4" x 2"

1шт.

12

A45668

NUT

- adjusting, differential bearing

1шт.

13

A7892

BEARING, CUP

CUP - bearing, differential, 5-3/8" OD x 7/8" wide (136.5 x 22.2 MM)

1шт.

14

A7893

ROLLER BEARING,3.375" ID x 1.172"

CONE - bearing, differential, 3-3/8" ID x 1-1/8" wide (85.7 x 28.6 MM)

1шт.

A45683

DIFFERENTIAL

ASSEMBLY - axle, Includes: Ref. 20 - 27

1шт.

20

A45680

LOCK BOLT

BOLT - differential case, 9/16 x 2-1/4" NC hex.

12шт.

21

NSS

NOT SOLD SEPARAT

CASE - plan half (Order A45683)

1шт.

22

A45604

WASHER

- thrust, side gear, 0.055 to 0.057" (1.397 to 1.448 MM)

1шт.

22

A45605

WASHER

- thrust, side gear, 0.058 to 0.060" (1.473 to 1.524 MM)

1шт.

22

S68331

WASHER

- thrust, side gear, 0.061 to 0.063" (1.549 to 1.600 MM)

1шт.

22

A45606

WASHER

- thrust, side gear, 0.064 to 0.066" (1.626 to 1.676 MM)

1шт.

22

A45607

WASHER

- thrust, side gear, 0.067 to 0.069" (1.702 to 1.753 MM)

1шт.

23

A45669

GEAR

- side

2шт.

24

S68333

U-JOINT SPIDER

SPIDER - differential (Replaces A45672)

1шт.

25

A45673

GEAR

PINION - differential

4шт.

27

NSS

NOT SOLD SEPARAT

CASE - flange half (Order A45683)

1шт.

28

A156928

WASHER

- thrust, preloading, 0.070 to 0.072" (1.778 to 1.829 MM)

1шт.

28

A156929

WASHER

- thrust, preloading, 0.073 to 0.075" (1.854 to 1.905 MM)

1шт.

A45685

GEAR

SET - matched, drive gear and pinion, Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

GEAR - drive, bevel (Order A45685)

1шт.

31

NSS

NOT SOLD SEPARAT

PINION - drive, bevel gear (Order A45685)

1шт.

32

A45670

SQUARE BOLT

- bevel, Serial Range: gear-case

16шт.

33

131-270

NUT

- gear bolt

16шт.

34

A31243

ROLLER BEARING

CONE - bearing, differential 2-7/8" ID x 1-27/64" wide (83 x 36.1 MM)

1шт.

35

A31242

CUP

- bearing, differential 5" OD x 1-1/4" wide (127 x 31.8 MM)

1шт.

36

A44215

NUT

- adjusting differential bearing

1шт.
