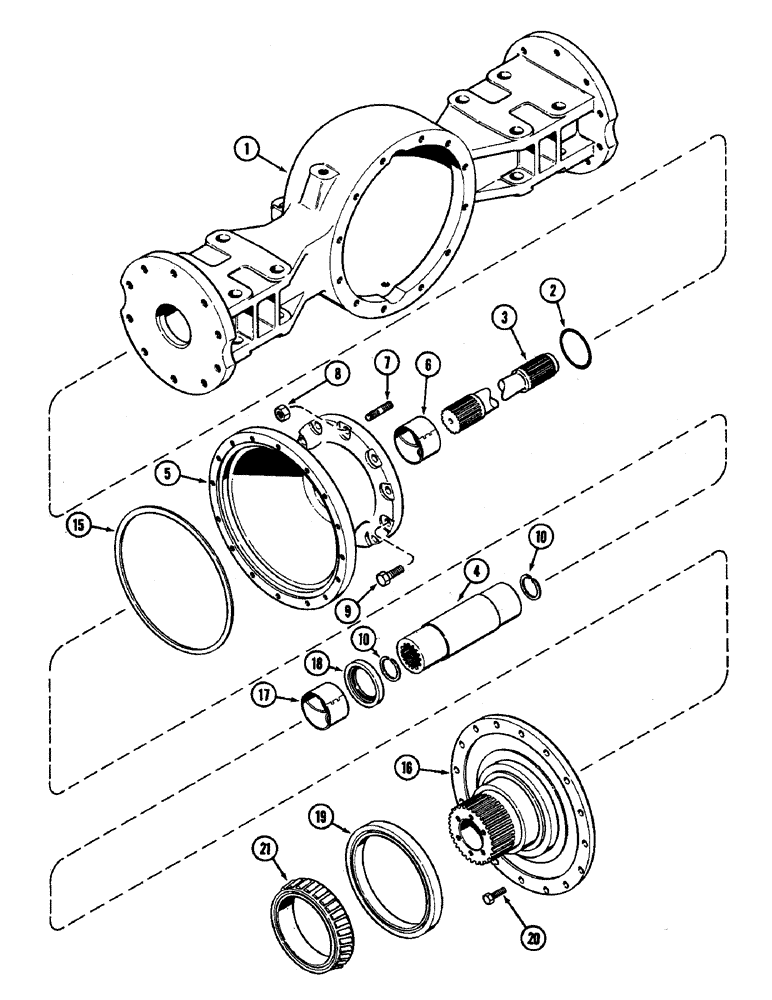

Запчасти Case IH 4890 (6-212) - RIGID REAR AXLE SPINDLE, EXTENSION AND SHAFT (06) - POWER TRAIN

1

A155928

HOUSING

- rear axle and differential (Order A144899) (See Figure 6-206)

1шт.

2

A140321

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

- extension, axle housing 4-3/8 x 4-5/8 x 1/8" (111.1 x 117.5 x 3.2 MM)

2шт.

3

A142967

SHAFT

- drive, rear axle, 27-15/16" (709.6 MM)

1шт.

3

A142966

SHAFT

- drive, rear axle, 30-15/16" (785.8 MM)

1шт.

4

A142968

COUPLING - axle drive shaft

2шт.

5

A144902

HOUSING ASSEMBLY - axle extension, Includes: Ref. 6

2шт.

6

A144919

BUSHING

- coupling 3-3/4" OD x 2-1/4" wide (95.3 x 57.2 MM)

1шт.

7

A77281

STUD

- extension to housing 3/4" NC x 2-7/8"

4шт.

8

25-1612

NUT,3/4"-10, G5, Hvy

- 3/4" NC hex.

4шт.

9

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

- hex, 3/4"-10 NC x 2-1/4", G8

16шт.

10

A77339

RING - snap, axle shaft coupling

4шт.

15

A140174

SEAL

- spindle to extension housing

2шт.

16

A144620

SPINDLE

ASSEMBLY - wheel, Includes: Ref. 17 - 19

2шт.

17

A144919

BUSHING

- coupling 3-3/4" OD x 2-1/4" wide (95.3 x 57.2 MM)

1шт.

18

A156958

OIL SEAL

- oil, inner 4-1/2" OD x 3/8" wide (114.45 x 9.52 MM)

1шт.

19

A140194

SEAL

- oil, outer 9-3/8" ID x 11-3/8" OD x 13/16" (238.1 x 288.9 x 5.2 MM)

1шт.

20

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- 1/2 x 1-3/4" NC hex. (Grade 8)

32шт.

21

A140150

ROLLER BEARING,6.875" ID x 1.875"

CONE - bearing, wheel hub, 2-1/4" (57.2 MM) ID

2шт.
