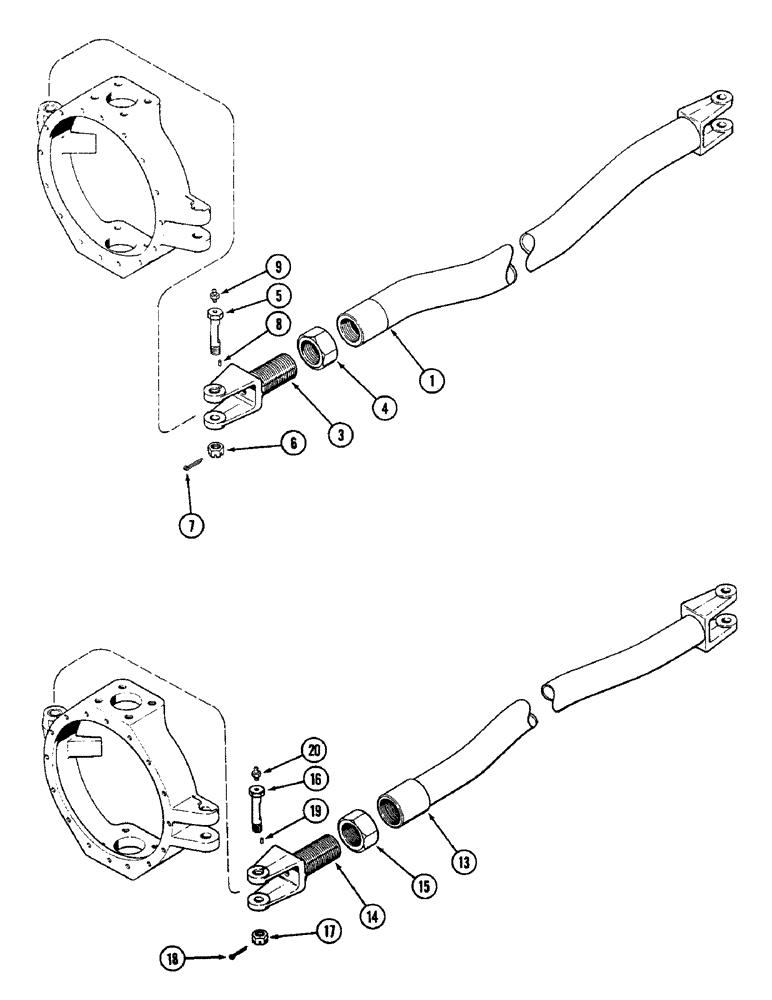

Запчасти Case IH 4890 (6-204) - AXLE TIE ROD (06) - POWER TRAIN

1

A146223

ROD

- tie, front axle

1шт.

3

A146564

YOKE

- end, tie rod

1шт.

4

25-1540

NUT,Jam, 2 1/2"-12, G5

- end yoke, 2-1/2"-12 hex.

1шт.

5

A77255

STEP BOLT

BOLT - oke

2шт.

6

A13110

NUT

- yoke bolt 7/8" NF slotted

2шт.

7

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

8

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, (4.76 x 22.22 mm) 3/16" x 7/8", Slotted

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

2шт.

13

A146235

ROD

- tie, rear axle

1шт.

14

A146564

YOKE

- end, tie rod

1шт.

15

25-1540

NUT,Jam, 2 1/2"-12, G5

- end yoke, 2-1/2"-12 hex.

1шт.

16

A77255

STEP BOLT

BOLT - yoke

2шт.

17

A13110

NUT

- yoke, 7/8" NF slotted

2шт.

18

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

19

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, (4.76 x 22.22 mm) 3/16" x 7/8", Slotted

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

2шт.
