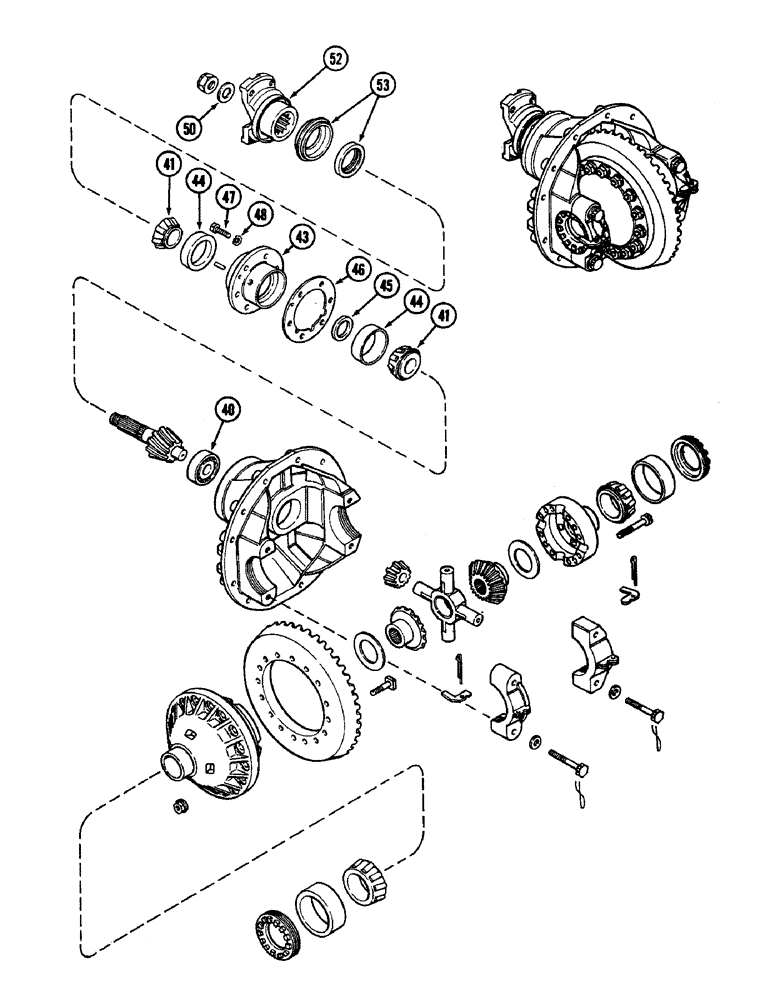

Запчасти Case IH 4890 (6-202) - FRONT AXLE DIFFERENTIAL (06) - POWER TRAIN

A146464

CARRIER

ASSEMBLY - front axle differential (Continued from Figure 6-200), Includes: Ref. 40 - 53 and 2 - 36 on Figure 6-200

1шт.

40

L33062

ROLLER BEARING

BEARING - roller, differential pinion

1шт.

41

L30032

ROLLER BEARING

CONE - bearing, differential pinion, 2" ID x 1-1/16" thick (50.8 x 27 MM)

2шт.

A45671

CAGE ASSY.

CAGE ASSEMBLY - pinion, Includes: Ref. 43 and 44

1шт.

43

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing (Order A45671)

1шт.

44

A9840

BEARING CUP

CUP - bearing, pinion, 4-3/8" OD x 13/16" thick (111.1 x 20.6 MM)

2шт.

45

A45059

BUSHING

SPACER - bearing, 0.634" (16.104 MM)

1шт.

45

A45061

BUSHING

SPACER - bearing, 0.635" (16.129 MM)

1шт.

45

A45062

BUSHING

SPACER - bearing, 0.636" (16.154 MM)

1шт.

45

A45063

BUSHING

SPACER - bearing, 0.637" (16.180 MM)

1шт.

45

A45064

BUSHING

SPACER - bearing, 0.638" (16.205 MM)

1шт.

45

A45065

BUSHING

SPACER - bearing, 0.639" (16.231 MM)

1шт.

45

A45066

BUSHING

SPACER - bearing, 0.640" (16.256 MM)

1шт.

45

A45067

BUSHING

SPACER - bearing, 0.641" (16.281 MM)

1шт.

45

A45068

BUSHING

SPACER - bearing, 0.642" (16.307 MM)

1шт.

45

A45069

BUSHING

SPACER - bearing, 0.643" (16.332 MM)

1шт.

45

A45070

BUSHING

SPACER - bearing, 0.644" (16.358 MM)

1шт.

45

A45071

BUSHING

SPACER - bearing, 0.645" (16.383 MM)

1шт.

45

A45072

BUSHING

SPACER - bearing, 0.646" (16.408 MM)

1шт.

45

A45073

BUSHING

SPACER - bearing, 0.647" (16.434 MM)

1шт.

46

S68370

SHIM,.003" Thk

Bearing cage (0.076 mm) .003" Thk

1шт.

46

S68371

SHIM,.005" Thk

Bearing cage (0.127 mm) .005" Thk

1шт.

46

S68362

SHIM,.0100" Thk

Bearing cage (0.254 mm) .0100" Thk

1шт.

46

S68373

SHIM,.020" Thk

Bearing cage (0.508 mm) .020" Thk

1шт.

46

S75901

SHIM,.030" Thk

Bearing cage (0.762 mm) .030" Thk

1шт.

47

A44212

BOLT

- bearing, Serial Range: cage-carrier

6шт.

48

193-33

LOCK WASHER,9/16"

WASHER - lock, external Shakeproof 9/16"

6шт.

50

S12170

WASHER

- flange nut

1шт.

52

A148230

YOKE

- axle drive shaft

1шт.

53

A45678

OIL SEAL

ASSEMBLY - oil, pinion shaft

1шт.
