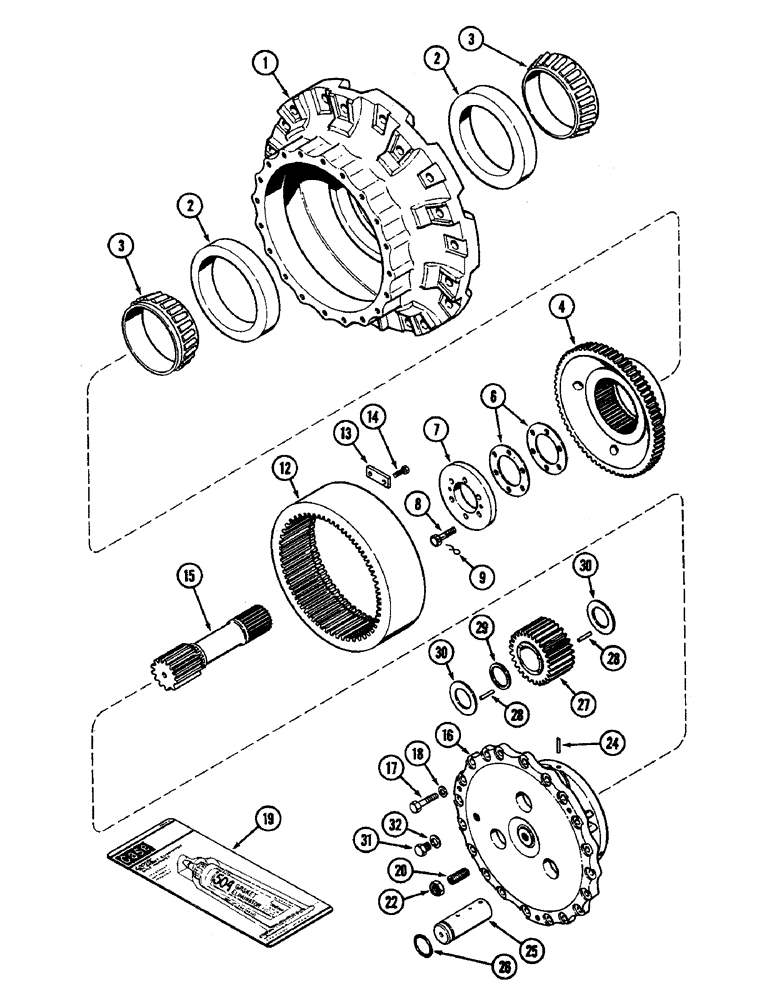

Запчасти Case IH 4890 (6-196) - FRONT AXLE PLANETARY (06) - POWER TRAIN

1

A140768

HUB

ASSEMBLY - wheel, drive, Includes: Ref. 2

2шт.

2

A140151

BEARING CUP

CUP - bearing, 9-3/4" OD x 1-1/2" wide (247.7 x 38.1 MM)

2шт.

3

A140150

ROLLER BEARING,6.875" ID x 1.875"

CONE - bearing, wheel hub, 6-7/8 ID x 1-7/8" wide (174.6 x 47.6 MM)

2шт.

4

A140149

HOLDER

- ring gear, planetary

1шт.

6

A144973

SHIM

- wheel bearing, 0.003" (0.076 MM)

1шт.

6

A144972

SHIM

- wheel bearing, 0.007" (0.178 MM)

1шт.

6

A144971

SHIM

- wheel bearing, 0.020" (0.508 MM)

1шт.

7

A144572

PLATE

- adjusting, wheel bearing

1шт.

8

A144974

BOLT

- adjusting plate 1/2 x 2-1/4" hex. drilled head

12шт.

9

391-629

ELECTRICAL WIRE

WIRE - safety #16 x 24"

2шт.

12

A77290

GEAR

- ring, planetary (65 teeth)

2шт.

13

A153458

RETAINER

- ring gear

12шт.

14

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- retainer, 3/8 x 1" NC hex. (Grade 8)

24шт.

15

A142965

SHAFT

- sun gear, planetary

2шт.

16

A152962

CARRIER

- planetary

2шт.

17

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- 1/2 x 2" NC hex. (Grade 8)

40шт.

18

L30674

WASHER

- carrier bolt 1/2 x 1 x 1/8" (12.7 x 25.4 x 3.17 MM)

40шт.

19

B17428

LOCTITE

- gasket, eliminator 2 ounces (50 CC)

1шт.

20

A151182

STUD

- adjusting, sun gear

2шт.

22

25-1512

JAM NUT,Jam, 3/4"-10, G5

- jam, 3/4" NF hex.

2шт.

24

138-2001

PIN,3/8" x 1 3/4", Coiled

- spirol, 1/4 x 1-3/4" (6.4 x 44.5 MM) (Planetary gear pin)

6шт.

25

A77293

PIN

- planetary gear

6шт.

26

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- seal, pin, 1-3/4 x 2 x 1/8" (44.5 x 50.8 x 3.2 MM)

6шт.

27

A77292

GEAR

- planetary (25 teeth)

6шт.

28

A46422

KIT

BEARING KIT - needle roller, planetary gear

2шт.

29

A76592

BEARING

SPACER - roller bearing

6шт.

30

A76593

WASHER

- planetary gear

12шт.

31

A140222

PLUG

- filler and drain, planetary oil

2шт.

32

A51759

GASKET

- oil plug

2шт.
