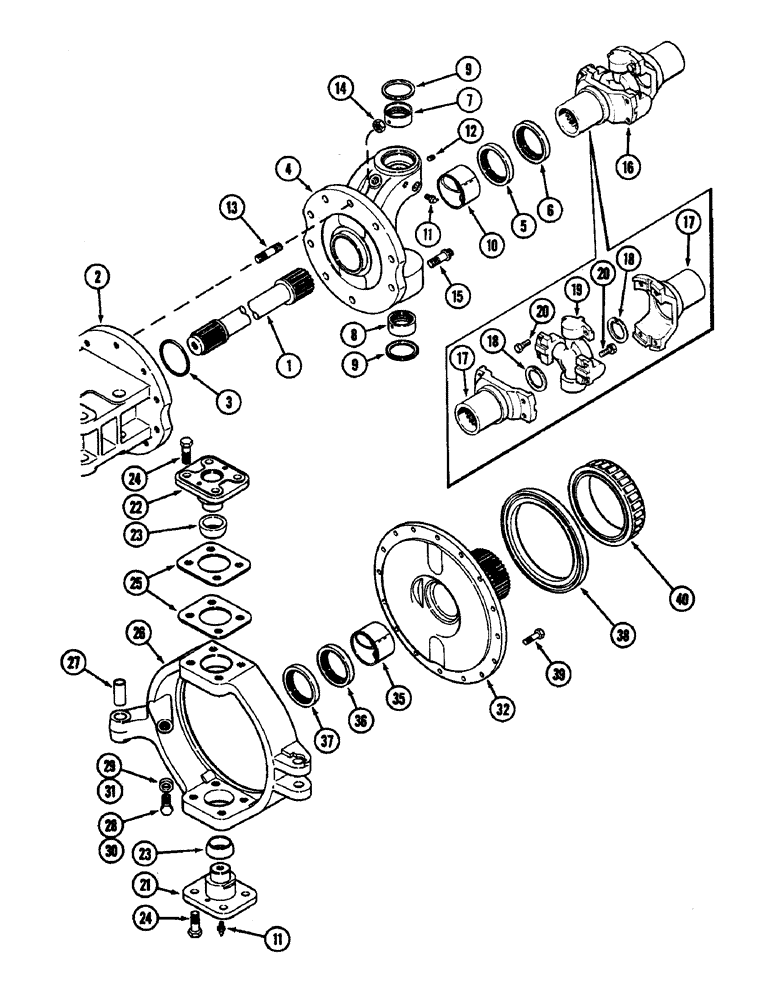

Запчасти Case IH 4890 (6-192) - FRONT AXLE ASSEMBLY, LH TRUNNION, SPINDLE AND SHAFT (06) - POWER TRAIN

1

A142967

SHAFT

- axle drive, 27-15/16" (709.6 MM)

1шт.

2

REF

INSTRUCTION

HOUSING - axle and differential, front and rear (See Figure 6-190 and 6-206)

1шт.

3

A140321

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

- seal, trunnion to housing, 4-3/8 x 4-5/8 x 1/8" (110.1 x 117.5 x 3.2 MM)

1шт.

4

A152942

TRUNNION

ASSEMBLY - axle, Includes: Ref. 5 - 10

1шт.

5

A156958

OIL SEAL

- oil, inner

1шт.

6

A156959

OIL SEAL

- oil, outer

1шт.

7

A153013

CUP

- bearing, king pin (Upper), 3-3/16" OD (71 MM) (With yellow stripe)

1шт.

8

A77282

CUP

- bearing, king pin (Lower), 3-3/16" OD (71 MM) (With lubrication groove)

1шт.

9

A144015

RING

- seal, bearing cup

2шт.

10

A144919

BUSHING

- axle universal joint, 3-3/4" diameter x 2-1/4" wide (95.3 x 57.2 MM)

1шт.

11

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Replaces 219-3) 65º, 1/8" NPT x 1.20" lg

3шт.

12

221-849

PLUG,Hex Soc, 1/8"-27

- 1/8" PT hex. socket

1шт.

13

A77281

STUD

- trunnion to axle housing, 3/4" NC x 2-7/8" long

2шт.

14

25-1612

NUT,3/4"-10, G5, Hvy

- 3/4" NC hex. (Heavy)

2шт.

15

166-134

12 PT SCREW,Flg, 3/4" - 10 x 2", Gr 8

BOLT - 3/4 x 2" NC 12 point hex. socket

8шт.

16

A142964

JOINT

UNIVERSAL JOINT ASSEMBLY - coupler, Includes: Ref. 17 - 20

1шт.

17

A45000

YOKE

- slip, axle shaft

2шт.

18

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , yoke 2.44", Int, #244

2шт.

19

A47549

UNIVERSAL JOINT

JOINT - universal (Replaces A45040)

1шт.

20

A56245

BOLT,Hex, 1/2" x 2 3/8"

- universal to yoke, 1/2 x 2" NF hex.

4шт.

21

A152944

PIN

ASSEMBLY - king, lower, Includes: Ref. 23

1шт.

22

A152936

PIN

ASSEMBLY - king, upper, Includes: Ref. 23

1шт.

23

A77283

RING,50.8mm ID x 80.96mm OD x 31.24mm W

- bearing, 2" ID x 2-7/8" OD (50.8 x 73 MM)

1шт.

24

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

8шт.

25

A153963

SHIM

- king pin, 0.005" (0.127 MM)

1шт.

25

A153964

SHIM

- king pin, 0.015" (0.381 MM)

1шт.

26

A152946

HOUSING

ASSEMBLY - spindle, front axle, Includes: Ref. 27

1шт.

27

A77287

BUSHING

- tie rod pivot

1шт.

28

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

Stop Hex, 3/4"-10 x 1 1/2", G5

1шт.

29

A150261

BUSHING

SPACER - stop, 25/ 32 x 1-1/4 x 7/32" (20 x 31.8 x 5.6 MM)

1шт.

30

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Stop (30.5 x 32 tire) Hex, 3/4"-10 x 2", G5

1шт.

31

A150262

BUSHING

SPACER - stop, 25/32 x 1-1/4 x 23/32 (20 x 31.8 x 18.3 MM) (With 30.5 x 32 tire)

1шт.

32

A144620

SPINDLE

ASSEMBLY - wheel, Includes: Ref. 35 - 38

2шт.

35

A144919

BUSHING

- universal joint, 3-3/4" OD x 2-1/4" wide (95.3 x 57.2 MM)

1шт.

36

A156958

OIL SEAL

- oil, inner 4-1/2" OD x 3/8" wide, (114.45 x 9.52 MM)

1шт.

37

A156959

OIL SEAL

- oil, outer

1шт.

38

A140194

SEAL

- oil, large

1шт.

39

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- 1/2 x 1-3/4" NC hex. (Grade 8)

16шт.

40

A140150

ROLLER BEARING,6.875" ID x 1.875"

CONE - bearing, wheel, 6-7/8" ID x 1-7/8" wide (174.6 x 47.6 MM)

1шт.
