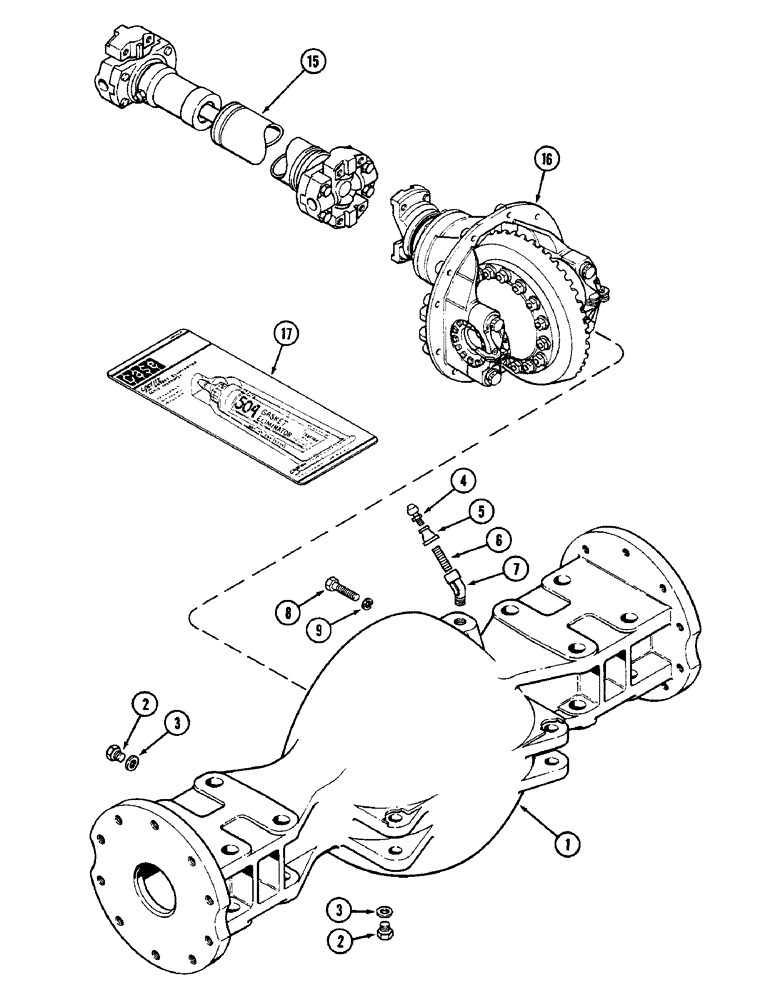

Запчасти Case IH 4890 (6-190) - FRONT AXLE AND DIFFERENTIAL HOUSING (06) - POWER TRAIN

1

A155928

HOUSING

- axle and differential, front (Replaces A144899)

1шт.

2

A140222

PLUG

- drain

2шт.

3

A51759

GASKET

- drain plug

2шт.

4

A12928

BREATHER

- oil, axle housing

1шт.

5

221-347

COUPLING,Pipe, 1 /2" x 1/8" NPT

- reducer, 1/2 x 1/8" PT

1шт.

6

221-1190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe, 1/2" PT x 2" long

1шт.

7

221-1404

ELBOW,45 Degree, 1/2"-14, NPT

- stret, 1/2" PT 45 degree

1шт.

8

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- differential carrier 5/8 x 1-3/4" NC hex. (Grade 8)

12шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

15

A151582

SHAFT

ASSEMBLY - drive, transmission to front axle (See Figure 6-198)

1шт.

16

A146464

CARRIER

ASSEMBLY - differential (See Figure 6-200)

1шт.

17

B17428

LOCTITE

- gasket, 2 ounces (50 CC)

1шт.
