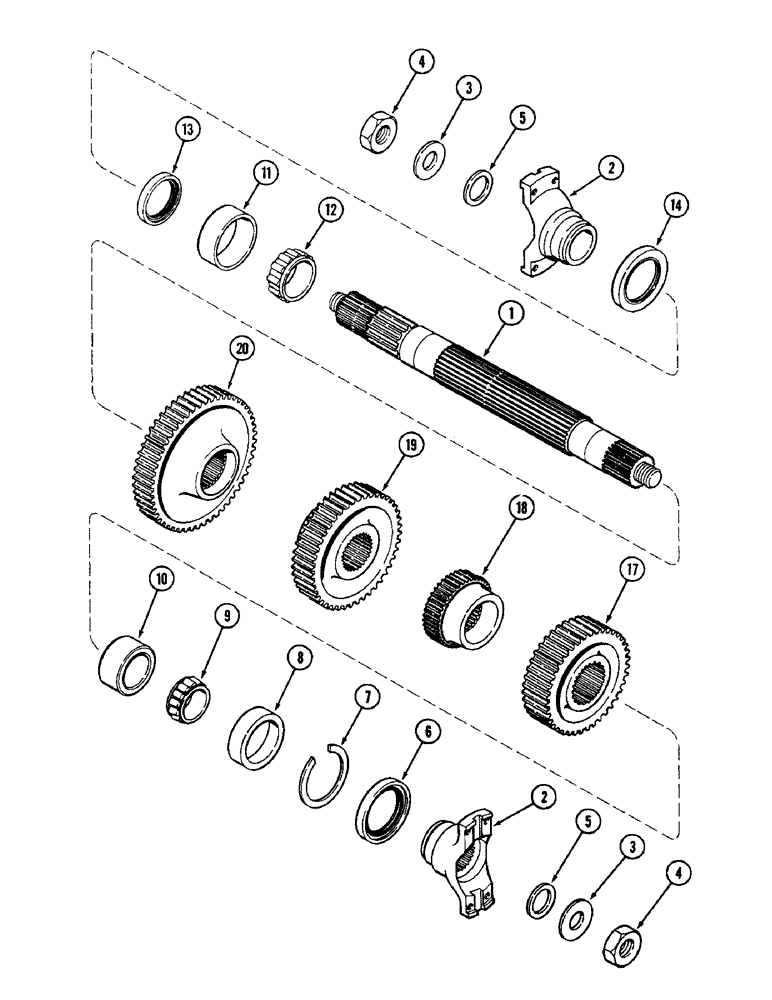

Запчасти Case IH 4890 (6-188) - TRANSMISSION OUTPUT SHAFT (06) - POWER TRAIN

1

A150734

SHAFT

- output, 33-1/16" (839.8 MM) Long

1шт.

2

A148228

YOKE

- drive shaft, front and rear

2шт.

3

A150735

WASHER

- retainer, yoke, 1-17/32 x 3-3/8 x 3/8" (38.9 x 85.7 x 9.5 MM)

1шт.

4

131-586

LOCK NUT,1 1/2"-12

NUT - lock, 1-1/2"-12 hex.

2шт.

5

A146565

GASKET

-, Serial Range: yoke-shaft

2шт.

6

A155226

OIL SEAL

- oil, output shaft, front, 3-1/2" ID x 7/16" wide (88.9 x 11.1 MM)

1шт.

7

A136780

RING

- snap, front bearing

1шт.

8

A137106

CUP

- front bearing, 4-13/16" OD x 1-3/16" (122.2 x 30.1 MM)

1шт.

9

A136003

BEARING

CONE - front bearing, 2-5/8" ID x 1-1/2" wide (66.7 x 38.1 MM)

1шт.

10

A136664

BUSHING

SPACER - front bearing

1шт.

11

A50324

BEARING CUP

CUP - rear bearing, 5-1/4" OD x 1-9/32" wide (133.4 x 32.5 MM)

1шт.

12

A77279

ROLLER BEARING,3" ID x 1.5625"

CONE - rear bearing, 3" ID x 1-9/16" wide (76.2 x 39.7 MM)

1шт.

13

A136659

OIL SEAL

- oil, brake housing rear inner, 3" ID x 7/16" wide (76.2 x 11.1 MM)

1шт.

14

A136660

OIL SEAL

- oil, brake cover, 3-1/2" ID x 1/2" wide (88.9 x 12.7 MM)

1шт.

17

A146560

GEAR

- driven, third (55 teeth)

1шт.

18

A155295

GEAR

- driven, fourth (39 teeth) (Replaces A152217)

1шт.

19

A146562

GEAR

- driven, second (56 teeth)

1шт.

20

A146563

GEAR

- driven, first (65 teeth)

1шт.
