(4890) - CASE TRACTOR (1/79-12/83)
/
(00) - PICTORIAL INDEX
/

(1-10) - PICTORIAL INDEX, MAIN HYDRAULICS

Запчасти Case IH 4890 (1-10) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

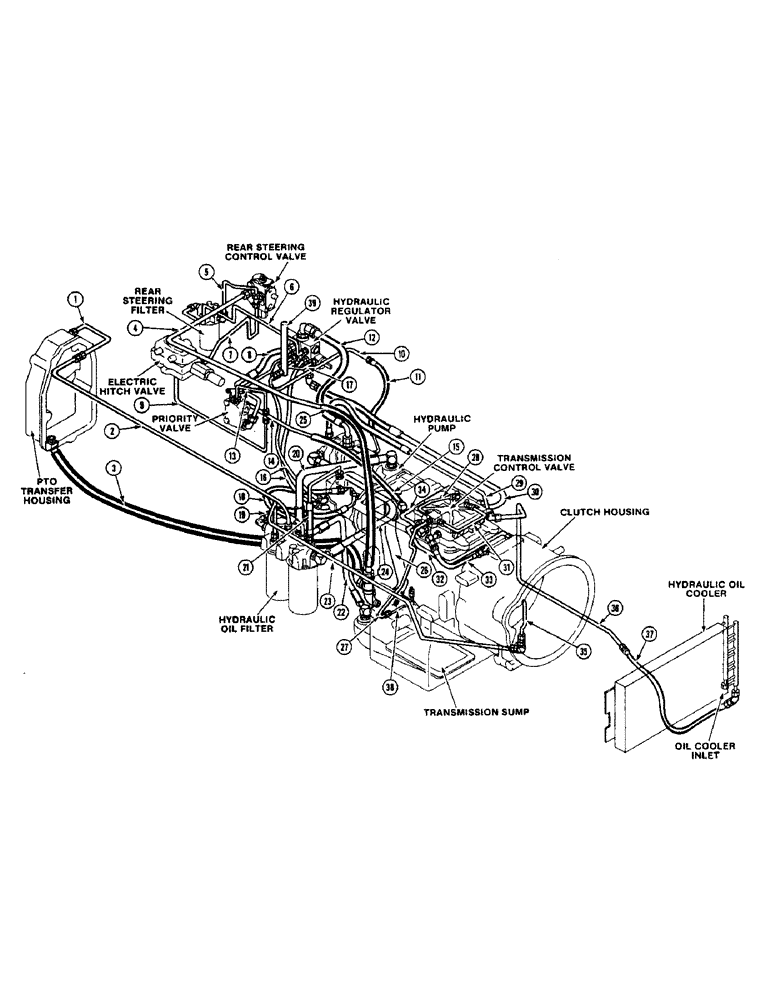

Схема запчастей Case IH 4890 - (1-10) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX
1
12
24
23
39
8
25
27
5
6
18
38
32
1
31
16
19
34
20
10
14
15
2
22
26
7
37
30
3
29
33
28
4
21
13
35
17
11
38

№

Артикул

Название

Примечание

Количество

1

PTO Lube Tube, Page 8-253

1шт.

2

PTO Lube Tube, Page 8-253

1шт.

3

PTO Drain Hose, Page 8-253

1шт.

4

Rear Steering Return to Sump Tube, Page 8-261

1шт.

5

Rear Steering Filter Outlet Tube, Page 5-147

1шт.

6

Rear Steering Filter Inlet Tube, Page 5-147

1шт.

7

Hitch Valve to Steering Valve Tube, Pages 5-143, 8-323

1шт.

8

Regulator Valve to Priority Valve Hose, Page 5-143

1шт.

9

Hitch Valve Drain Tube, Pages 5-143, 8-323

1шт.

10

Priority Sensing Tube, Page 5-143

1шт.

11

Pump to Priority Valve Hose, Page 5-143

1шт.

12

Piston Pump to Regulator Valve Outlet Hose, Pages 5-143, 8-257

1шт.

13

Priority Valve Drain Tube, Page 5-143

1шт.

14

Regulator Valve to Transmission Cover Tube, Page 5-143

1шт.

15

Regulator Valve Drain Hose, Page 8-261

1шт.

16

Regulator Valve to PTO Clutch and Brake Housing Hose, Page 8-253

1шт.

17

Pressure Regulator Valve Bypass Tube, Page 8-261

1шт.

18

Gear Pump to Filter Hose, 8-257

1шт.

19

Filter to Pump Hose, Page 8-257

1шт.

20

Pump to Filter Outlet Tube, Page 8-257

1шт.

21

PTO Clutch Lube Hose, Page 8-253

1шт.

22

Filter to Pressure Relief Valve Tube, Page 8-257

1шт.

23

Clutch C1 Lube Tube, Page 8-253

1шт.

24

Filter to Gear Pump Tube, Page 8-257

1шт.

25

Rear Steering Valve Return Hose, Page 8-261

1шт.

26

Sump to Pump Suction Tube, Page 8-257

1шт.

27

Valve to Shift Housing Tube, Pages, 6-173, 8-275

1шт.

28

C3 Clutch Shuttle Tube, Page 8-275

1шт.

29

Pump to Tee Relief Valve Drain Tube, Page 8-269

1шт.

30

Hydraulic Pressure Regulator Valve to Cover Hose, Page 8-269

1шт.

31

C2 Clutch Shuttle Tube, Page 8-271

1шт.

32

Valve to Clutch Housing Tube, Page 8-271

1шт.

33

Valve to Clutch Housing Tube, Page 8-271

1шт.

34

Reverse Lock-out Pilot Tube, Page 8-271

1шт.

35

C1 Clutch Lubricating Tube, Page 6-165

1шт.

36

Oil Cooler Return Tube, Pages 8-267, 269

1шт.

37

Oil Cooler Return Hose, Page 8-267

1шт.

38

Hydraulic Lock Internal Tube, Page 6-173

1шт.

39

PTO Clutch Damping Tube, Page 8-253

1шт.

Выбрано товаров: 39
