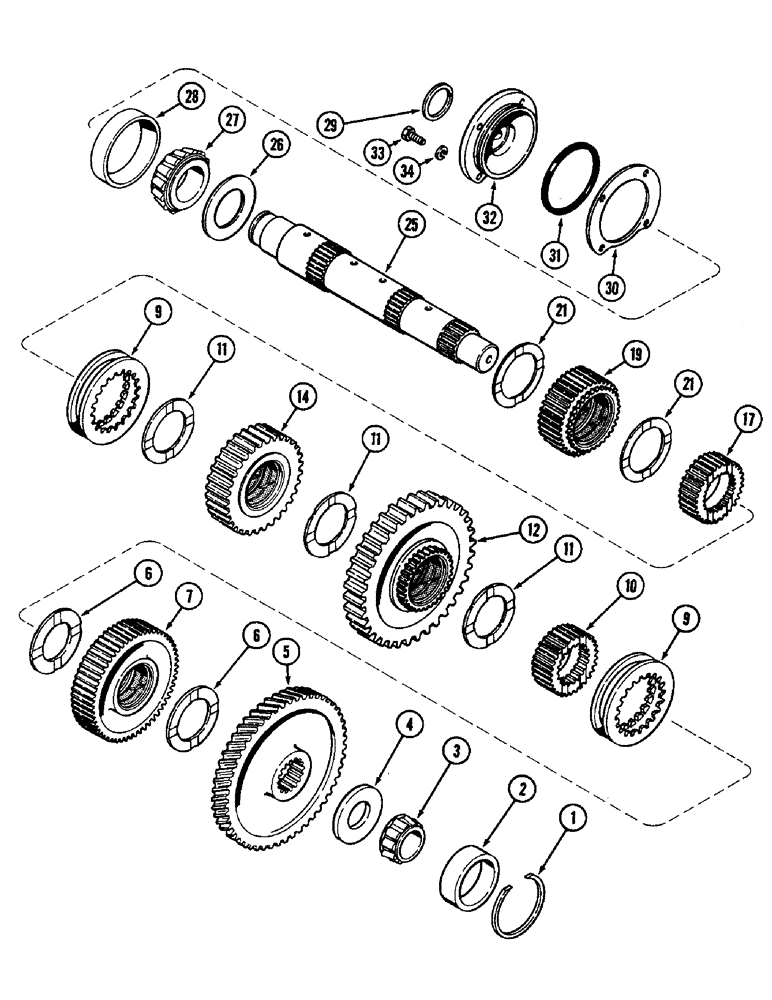

Запчасти Case IH 4890 (6-186) - TRANSMISSION DRIVEN SHAFT AND GEARS (06) - POWER TRAIN

1

A138737

RING

- snpa, front bearing

1шт.

2

A138739

CUP

- front bearing, 4-1/8" OD x 1-1/8" wide (104.8 x 28.6 MM)

1шт.

3

A75219

ROLLER BEARING,1.9685" ID x 1.4173"

CONE - front bearing, 2" ID x 1-13/32" wide (50.8 x 35.7 MM)

1шт.

4

A136675

BUSHING

SPACER - front bearing

1шт.

5

A152458

GEAR

- drive, drop (70 teeth)

1шт.

6

A155525

WASHER

- thrust, third drive gear, 2-3/4" (69.9 MM) ID (Bronze)

2шт.

7

A146582

GEAR

ASSEMBLY - third drive (56 teeth) (With bushing)

1шт.

9

A136030

COLLAR

- sliding, driver gears

2шт.

10

A136682

HUB

- sliding collar, third and fourth driver gears

1шт.

11

A146831

WASHER

- thrust, 3-1/32" (77 MM) ID (Order A155526)

3шт.

12

A155352

GEAR

ASSEMBLY - fourth drive (88 teeth) (Replaces A152216)

1шт.

14

A146583

GEAR

ASSEMBLY - second drive (40 and 36 teeth) (With bushing)

1шт.

17

A136681

HUB

- sliding collar, first and second driver gears

1шт.

19

A146549

GEAR

ASSEMBLY - first driver (31 and 36 teeth) (With bushing)

1шт.

21

A155527

WASHER

- thrust, 3-9/32" ID x 0.043" thick (83.3 x 1.09 MM) (Bronze)

1шт.

21

A155529

WASHER

- thrust, 3-9/32" ID x 0.053" thick (83.3 x 1.35 MM) (Bronze)

1шт.

21

A155531

WASHER

- thrust, 3-9/32" ID x 0.063" thick (83.3 x 1.60 MM) (Bronze)

1шт.

21

A155533

WASHER

- thrust, 3-9/32" ID x 0.073" thick (83.3 x 1.85 MM) (Bronze)

1шт.

25

A146552

SHAFT

- sliding gear, driven

1шт.

26

A136670

BUSHING

SPACER - rear bearing

1шт.

27

A136003

BEARING

CONE - rear bearing, 2-5/8" ID x 1-1/2" wide (66.7 x 38.1 MM)

1шт.

28

A137106

CUP

- rear bearing , 4-13/16" OD x 1-11/64" wide (122.2 x 29.8 MM)

1шт.

29

A136680

RING

- seal, shaft rear

1шт.

30

A150777

SHIM

- end cap, 0.003" (0.076 MM) Thick

1шт.

30

A150778

SHIM

- end cap, 0.005" (0.127 MM) Thick

1шт.

30

A150779

SHIM

- end cap, 0.007" (0.178 MM) Thick

1шт.

31

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- end cap, 4-1/2 x 4-3/4 x 1/8" (114.3 x 120.7 x 3.2 MM)

1шт.

32

A136671

CAP

- end

1шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

34

92-6

LOCK WASHER,3/8"

4шт.
