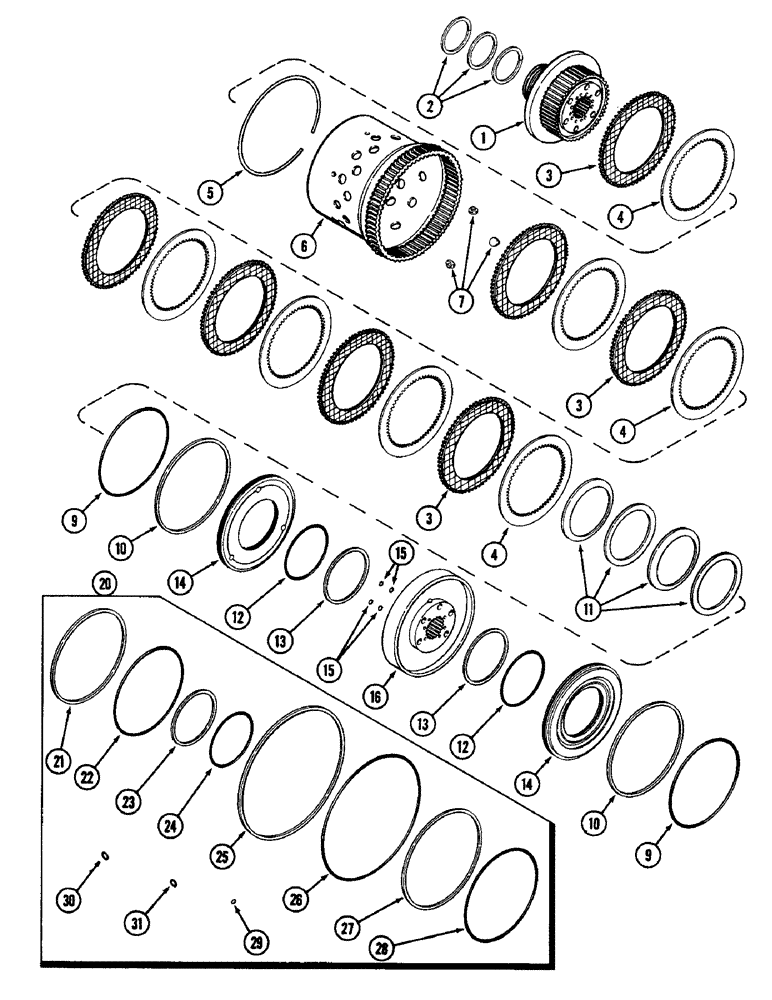

Запчасти Case IH 4890 (6-182) - TRANSMISSION, C-3 CLUTCH, CLUTCH SEAL REPAIR KIT (06) - POWER TRAIN

1

A150107

HUB

- (C-3) Clutch

1шт.

2

A58384

RING

- seal, hub

3шт.

3

A61981

PLATE

- clutch friction

7шт.

4

A155461

PLATE

- clutch, steel

7шт.

5

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snap, ring gear

1шт.

6

A153087

GEAR

- ring, planetary

1шт.

7

A58413

BUTTON

BEARING - button, ring gear

8шт.

9

A150753

O-RING,7.84" ID x 0.107"

RING - seal, external (See ref. 20)

2шт.

10

A146682

RING

- seal, external (See ref. 20)

2шт.

11

A58094

SPRING

- return, clutch piston (Belleville)

4шт.

12

A150754

O-RING,4.718" ID x 0.107"

RING - seal, internal (See ref. 20)

2шт.

13

A146683

RING

- seal, internal (See ref. 20)

2шт.

14

A146670

PISTON

- clutch, (C-2) and (C-3)

2шт.

15

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - piston carrier (See ref. 20)

4шт.

16

A150105

CARRIER

- piston, (C-2) and (C-3) Clutch

1шт.

20

A46286

SEAL KIT,Power Shift

KIT - clutch seal, repair, Includes: Ref. 21 - 31

1шт.

21

A146682

RING

- seal, external, 8-9/32" OD x 7/64" square (210.3 x 2.8 MM)

3шт.

22

A150753

O-RING,7.84" ID x 0.107"

RING - seal, external, 7-7/8" OD x 3/32" width (200 x 2.4 MM)

3шт.

23

A146683

RING

- seal, internal, 4-15/32" ID x 7/64" square (113.5 x 2.8 MM)

3шт.

24

A150754

O-RING,4.718" ID x 0.107"

RING - seal, internal, 4-11/16" ID x 3/32" width (119.1 x 2.4 MM)

3шт.

25

A146680

RING

- seal, external, 12-9/16" OD x 7/64" square (317.1 x 2.8 MM)

1шт.

26

A150751

O-RING,12.09" ID x 0.107"

RING - seal, external, 12-1/16" OD x 3/32" width (306.4 x 2.4 MM)

1шт.

27

A146681

SEAL

- seal, internal, 8-31/32" ID x 7/64" square (227.8 x 2.8 MM)

1шт.

28

A150752

O-RING,9.206" ID x 0.107" OD

RING - seal, internal, 9-5/32" ID x 3/32" width (232.6 x 2.4 MM)

1шт.

29

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - piston carrier, 5/16 x 7/16 x 1/16" (7.94 x 11.11 x 1.59 MM)

4шт.

30

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- oil tube, 1/2 x 5/8 x 1/16" (12.7 x 15.87 x 1.59 MM)

7шт.

31

A65918

O-RING,0.551" ID x 0.691" OD

- oil tube (Not used) 9/16 x 11/16 x 1/16" (14.29 x 17.46 x 1.59 MM)

5шт.
