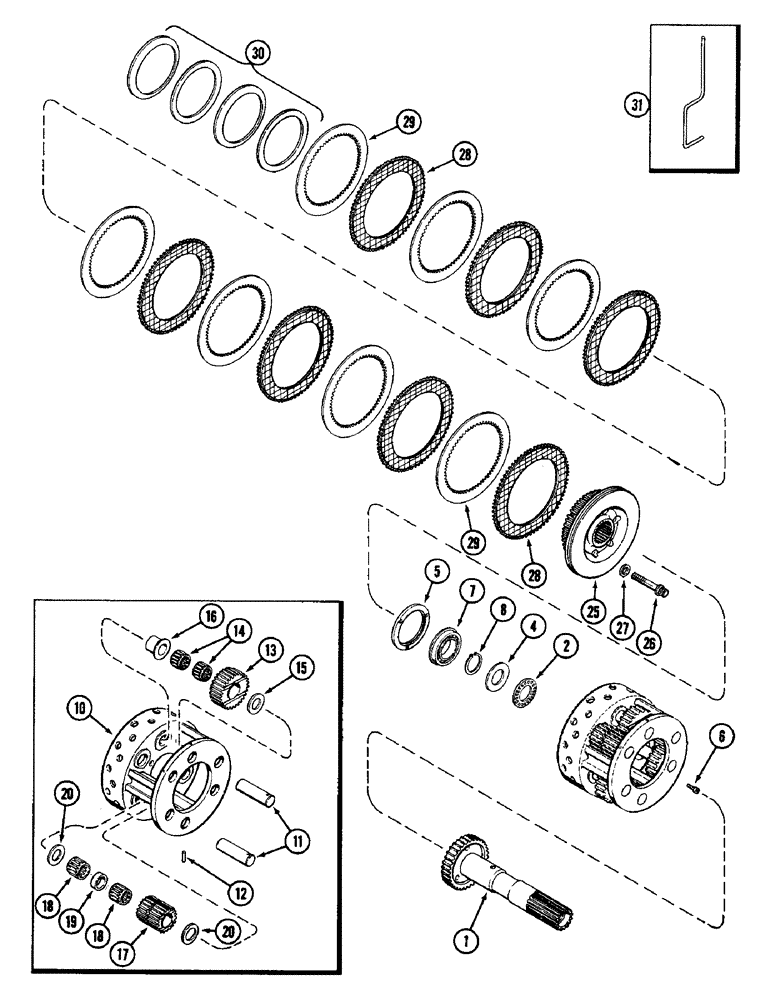

Запчасти Case IH 4890 (6-180) - TRANSMISSION, C-2 CLUTCH AND PLANETARY (06) - POWER TRAIN

1

A148351

GEAR

- planetary input

1шт.

2

A154648

THRUST BEARING,44.5mm ID x 66.04mm OD x 2.69mm W

BEARING - thrust, input gear (Replaces A54022 bearing and H147785 washer)

1шт.

4

A54021

WASHER

- thrust, rear of bearing 1-3/4 x 2-1/2 x 3/32" (44.5 x 63.5 x 2.4 MM)

1шт.

5

A146603

RETAINER

- planetary carrier

1шт.

6

62-410

HEX SOC SCREW,1/4"-28 x 5/8"

SCREW - 1/4 x 5/8" NF hex. socket head

3шт.

7

A63109

BEARING, BALL

BEARING - ball, planetary

1шт.

8

A7611

SNAP RING,#175, Ext

RING - snap, bearing retainer, 0.065 to 0.059" (1.7 to 1.5 MM)

1шт.

8

A151976

RING

- snap, bearing retainer, 0.075 to 0.069" (1.9 to 1.8 MM)

1шт.

8

A151975

RING

- snap, bearing retainer, 0.085 to 0.079" (2.2 to 2.0 MM)

1шт.

8

A151974

RING

- snap, bearing retainer, 0.095 toi 0.089" (2.4 to 2.3 MM)

1шт.

10

A152475

CARRIER

- planetary

1шт.

11

A148608

PIN

- planetary gears

6шт.

12

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, (4.8 x 19.1 mm) 3/16" x 3/4", Slotted

6шт.

13

A148352

GEAR

- planetary, short

3шт.

14

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

BEARING - needle, short planetary gear, 3/4" (19.1 MM) Wide

6шт.

15

A150410

SPACER

RACE - bearing thrust, short planetary gear

6шт.

16

A151046

SPACER

- short planetary gear

3шт.

17

A148353

GEAR

- planetary, long

3шт.

18

A62543

NEEDLE BEARING,25.39mm ID x 33.36mm OD x 31.56mm W

BEARING - needle, long planetary gear, 1-1/4" (31.8 MM) Wide

6шт.

19

A146606

SPACER

- bearing

3шт.

20

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - bearing thrust, long planetary gear

6шт.

25

A152504

HUB

- plate, (C-2) Clutch

1шт.

26

166-96

12 PT SCREW,Flg, 1/2" - 13 x 4", Gr 8

SCREW - hub fastener, 1/2 x 4" NC ferry head

6шт.

27

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- hardened, 9/16 x 63/64 x 1/16" (14.3 x 25 x 1.6 MM)

6шт.

28

A61981

PLATE

- clutch friction

7шт.

29

A155461

PLATE

- clutch, steel

7шт.

30

A58094

SPRING

- clutch plate return (Belleville)

4шт.

31

A45212

HOLDER

- clutch plate

3шт.
