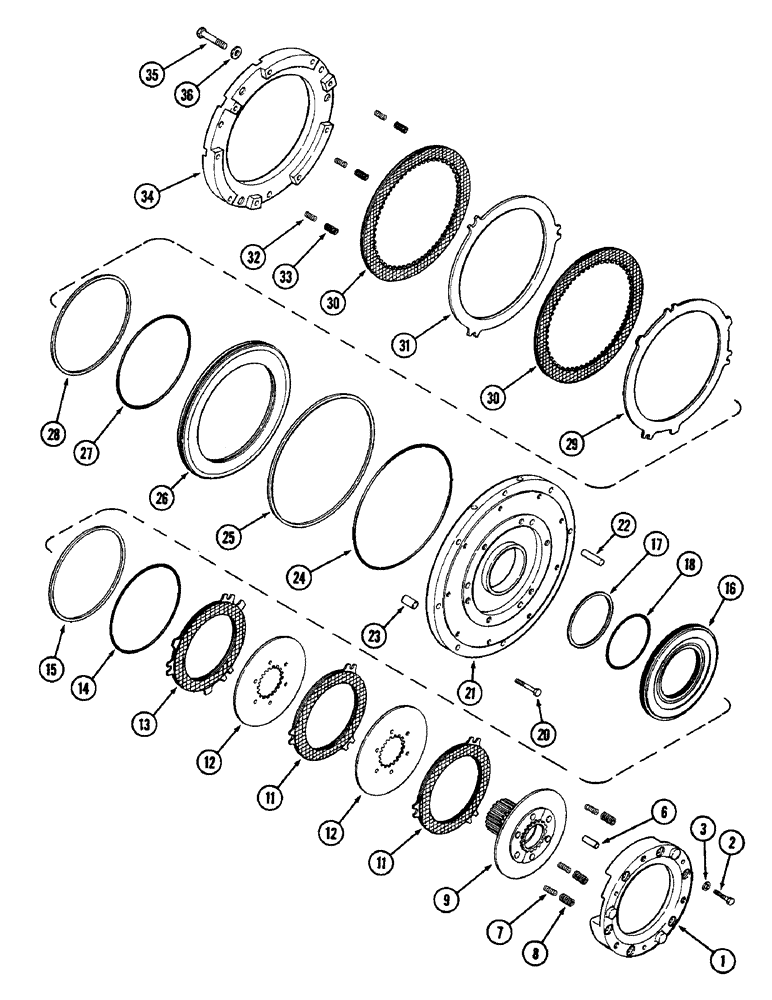

Запчасти Case IH 4890 (6-178) - TRANSMISSION, C-1 AND C-4 CLUTCH (06) - POWER TRAIN

1

A146529

PLATE

- reaction, (C-1) Clutch

1шт.

2

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

6шт.

3

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened, 7/16 x 3/4 x 1/32" (11.11 x 19.05 x 0.79 MM)

6шт.

6

138-157

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, (7.9 x 38.1 mm) 5/16" x 1 1/2", Slotted

3шт.

7

A136803

SPRING

- return, (C-1) Clutch, 1/2" (12.7 MM) OD x 1-7/16" (36.5 MM) Free length

3шт.

8

A136802

SPRING

- return, (C-1) Clutch, 23/32" (18.3 MM) OD x 1-1/2" (38.1 MM) Free length

3шт.

9

A151744

GEAR

ASSEMBLY - reaction, (C-1) Clutch

1шт.

11

A142360

PLATE

- friction (Without tab) (C-1) Clutch

4шт.

12

A152112

PLATE

- steel, (C-1) Clutch

3шт.

13

A142361

PLATE

- friction (With tab), (C-1) Clutch

1шт.

14

A150753

O-RING,7.84" ID x 0.107"

RING - seal, external (See kit, Figure 6-182)

1шт.

15

A146682

RING

- seal, external (See kit, Figure 6-182)

1шт.

16

A146670

PISTON

- (C-1) Clutch

1шт.

17

A146683

RING

- seal, internal (See kit, Figure 6-182)

1шт.

18

A150754

O-RING,4.718" ID x 0.107"

RING - seal, internal (See kit, Figure 6-182)

1шт.

20

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- 3/8 x 1-1/2" NC hex. (Grade 8)

8шт.

21

A77308

CARRIER

ASSEMBLY - pistons, (C-1) and (C-4) Clutch, Includes: Ref. 22 and 23

1шт.

22

A77275

PIN

- reaction, 1/2 x 2-3/8" (12.7 x 60.3 MM)

3шт.

23

A146611

PIN,12.45mm OD x 36.07mm L

- reaction, 1/2 x 1-7/16" (12.7 x 36.5 MM)

3шт.

24

A150751

O-RING,12.09" ID x 0.107"

RING - seal, external (See kit, Figure 6-182)

1шт.

25

A146680

RING

- seal, external (See kit, Figure 6-182)

1шт.

26

A146671

PISTON

- (C-4) Clutch

1шт.

27

A150752

O-RING,9.206" ID x 0.107" OD

RING - seal, internal (See kit, Figure 6-182)

1шт.

28

A146681

SEAL

- seal, internal (See kit, Figure 6-182)

1шт.

29

A58056

PLATE

- steel (With tabs), (C-4) Clutch

1шт.

30

A67128

PLATE

- friction, (C-4) Clutch

3шт.

31

A75105

PLATE

- steel (With out tabs), (C-4) Clutch

2шт.

32

A62607

SPRING

- return, (C-4) Clutch, 23/64" (18.3 MM) OD x 1-1/8" (28.6 MM) Free length

3шт.

33

A62606

SPRING

- return, (C-4) Clutch, 9/16" (14.3 MM) OD x 1-1/8" (28.6 MM) Free length

3шт.

34

A146530

PLATE

- reaction, (C-4) Clutch

1шт.

35

26-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

- 3/8 x 2-3/4" NC hex. (Grade 8)

9шт.

36

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened, 7/16 x 3/4 x 1/32" (11.11 x 19.05 x 0.79 MM)

9шт.
