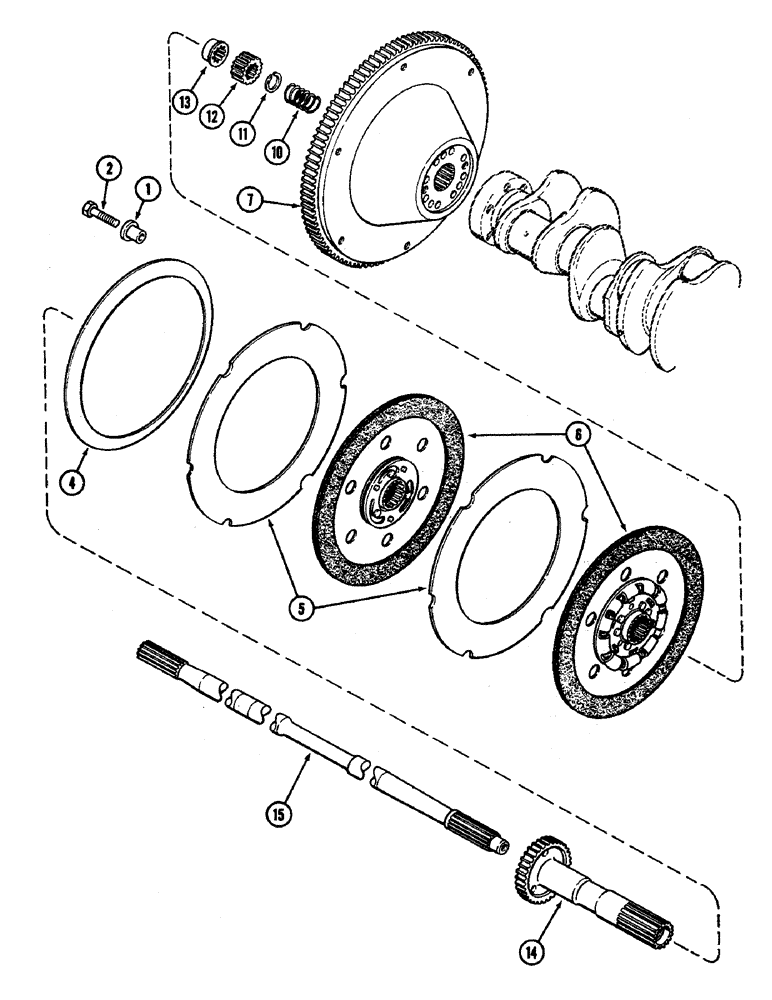

Запчасти Case IH 4890 (6-176) - TRANSMISSION CLUTCH ASSEMBLY (06) - POWER TRAIN

1

A153851

RETAINER

RETAINER - spring retainer

6шт.

2

26-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

BOLT - 1/2 x 2-1/4" NC hex. (Grade 8)

6шт.

4

A151101

SPRING

SPRING - plate, torque limiter

1шт.

5

A155859

PLATE

PLATE - pressure (Replaces A58036)

2шт.

6

A155491

PLATE

PLATE - driven

2шт.

7

A46321

FLYWHEEL

FLYWHEEL ASSEMBLY - engine (See Figure 2-38)

1шт.

10

A136750

SPRING

SPRING - drive sleeve, PTO shaft

1шт.

11

A76480

RING

RING - snap, drive sleeve and spring

1шт.

12

A136781

SLEEVE

SLEEVE - PTO shaft drive

1шт.

13

A76482

BUSHING,20T

BUSHING - drive gear shaft

1шт.

14

A148351

GEAR

SPARE PART GEAR ASSEMBLY - planetary input (See Figure 6-180)

1шт.

15

A148126

SHAFT

SHAFT - PTO and hydraulic pump drive

1шт.
