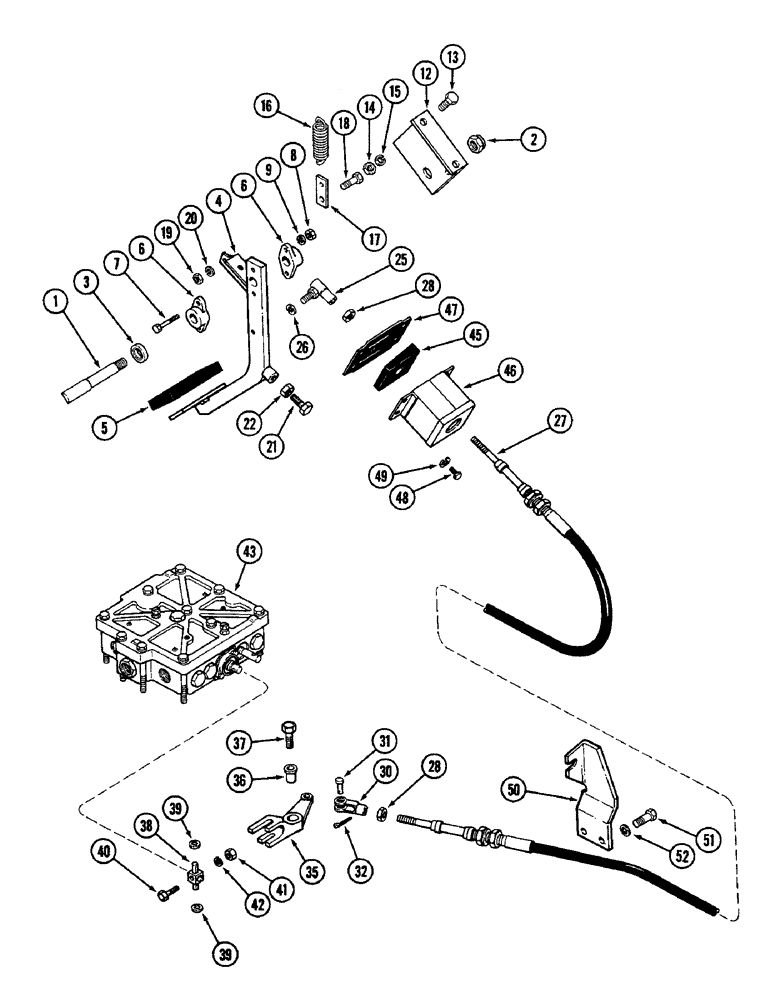

Запчасти Case IH 4890 (6-174) - CLUTCH PEDAL AND LINKAGE (06) - POWER TRAIN

1

A75359

SHAFT

- pivot, clutch pedal

1шт.

2

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

3

A138831

BUSHING

SPACER - pedal

1шт.

4

A138838

PEDAL

- foot, clutch

1шт.

5

F9197

PAD

- rubber, pedal

1шт.

6

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- pedal

2шт.

7

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

12

A149831

BRACKET

- pedal shaft

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" NC hex.

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

A60302

SPRING

- return, clutch pedal

1шт.

17

A76169

CLIP

BRACKET - return spring

1шт.

18

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

19

25-106

NUT,3/8"-16, G5

- 3/8" NC hex.

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Pedal stop) Hex, 3/8"-16 x 1 3/4", G5

1шт.

22

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

25

D38296

JOINT

- ball, control, Serial Range: cable-pedal

1шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

A145342

CABLE

- control, Serial Range: pedal-valve

1шт.

28

86585245

SPECIAL NUT,JAM, 5/8" - 18

- jam, 3/8" NF hex.

2шт.

30

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - cable to lever

1шт.

31

141-54

CLEVIS PIN,3/8" x 1 1/16"

(9.52 mm) 3/8" x 1 1/16"

1шт.

32

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

35

A75323

LEVER

- valve spool

1шт.

36

A59772

BUSHING

- lever

1шт.

37

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

38

59150

LINK -, Serial Range: lever-spool

1шт.

39

A59773

RING

- retaining

2шт.

40

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

41

25-104

NUT,1/4"-20, G5

1шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

43

REF

INSTRUCTION

VALVE ASSEMBLY - control, power shift (See Figure 8-274)

1шт.

45

A152524

SEAL

-, Serial Range: cable-firewall

1шт.

Replaced by A145931 Boot

1шт.

46

A152522

CUP

- clutch cable

1шт.

Replaced by A145931 Boot

1шт.

47

A152523

SEAL

- cable cup

1шт.

Replaced by A145931 Boot

1шт.

48

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

Replaced by A145931 Boot

1шт.

49

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

Replaced by A145931 Boot

1шт.

50

A140793

BRACKET

BULKHEAD - control cable

1шт.

51

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

52

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
