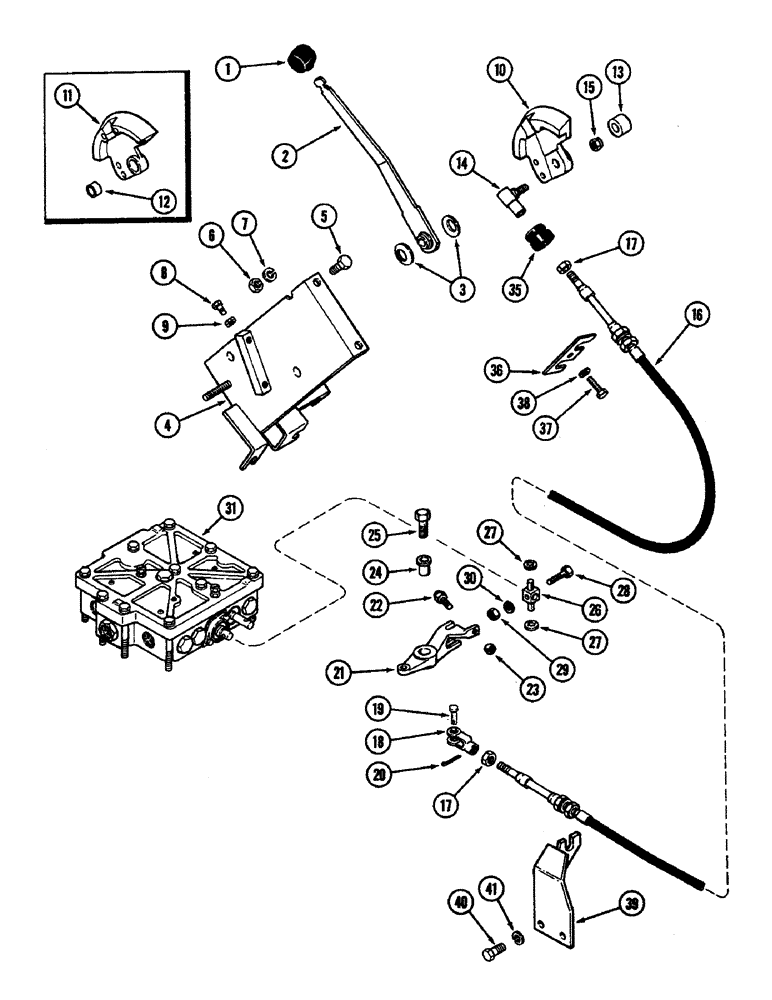

Запчасти Case IH 4890 (6-168) - POWER SHIFT LINKAGE (06) - POWER TRAIN

1

A137806

KNOB

- hand lever

1шт.

2

A137858

LEVER

- control

1шт.

3

A59662

WASHER

- beveled

2шт.

4

A138833

BRACKET

- lever mounting

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" NC hex.

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Lever stop Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

9

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" NC hex.

1шт.

10

A143835

QUADRANT

- shift lever (Replaces A61862)

1шт.

11

A61862

QUADRANT

ASSEMBLY - shift lever (Order A143835), Includes: Ref. 12

1шт.

12

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- pivot (Used with ref 11 only)

1шт.

13

A75379

BUSHING

SPACER - quadrant

1шт.

14

A75991

BALL

JOINT - ball, Serial Range: cable-quadrant

1шт.

15

131-5

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8" NF hex.

1шт.

16

A143872

CABLE

- control, power shift valve

1шт.

17

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

18

A60663

YOKE

-, Serial Range: cable-lever

2шт.

19

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

20

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

21

A59771

LEVER

- valve spool

1шт.

22

A59774

ADJUSTMENT SCREW,5/16" - 18 x 1 3/8", Mild Steel

SCREW - adjusting, lever

1шт.

23

25-145

JAM NUT,Jam, 5/16"-18, G5

- jam, 5/16" NC hex.

1шт.

24

A59772

BUSHING

- lever pivot

1шт.

25

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

26

A59150

LINK

- spool operating

1шт.

27

A59773

RING

- retaining

2шт.

28

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

29

25-104

NUT,1/4"-20, G5

1шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31

A148160

VALVE

ASSEMBLY - control transmission (See Figure 8-272)

1шт.

35

A161072

GROMMET

- firewall control cable

1шт.

36

A152517

PLATE

- grommet cover

1шт.

37

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

39

A140791

BRACKET

BULKHEAD - control cable

1шт.

40

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

41

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
