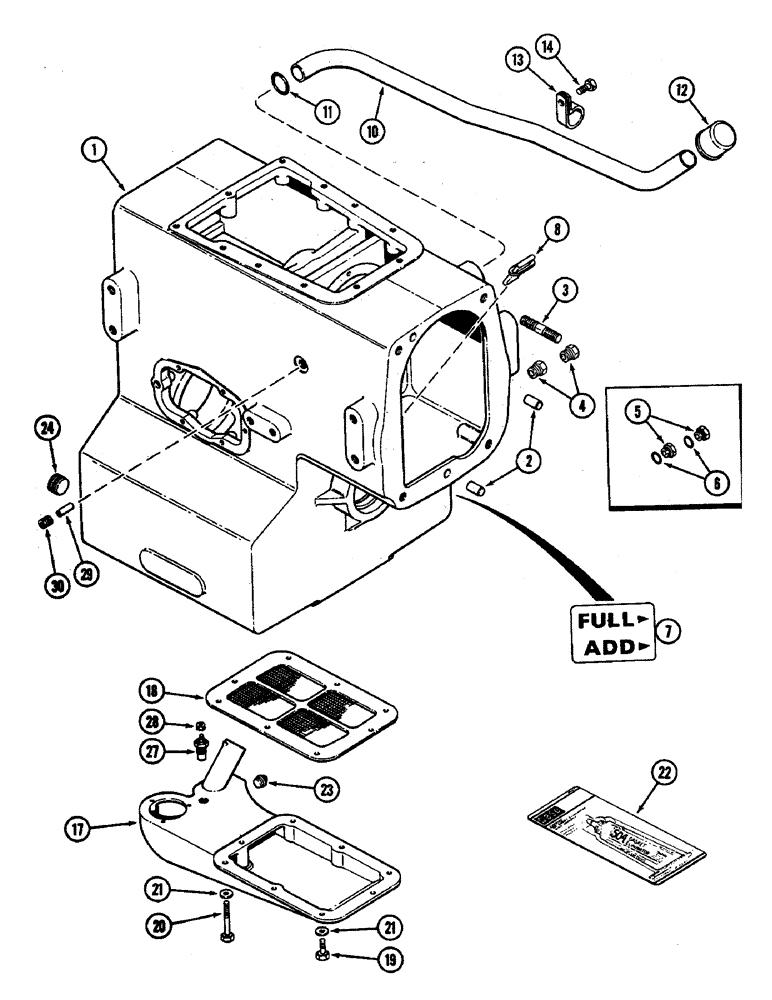

Запчасти Case IH 4890 (6-166) - TRANSMISSION HOUSING (06) - POWER TRAIN

1

A152678

CASE

- transmission

1шт.

2

A28269

PIN

- dowel, 3/4 x 1-1/4" (19.1 x 31.7 MM)

2шт.

3

A151866

STUD

- clutch housing, 7/8" NF x 4"

4шт.

4

A156111

GAUGE

- sight, oil level

2шт.

5

A77278

GAUGE

- sight, oil level (Order A156111)

2шт.

7

321-2470

DECAL

- oil level

1шт.

8

A144878

FILTER

- oil bypass

1шт.

10

A151173

TUBE

- filler, transmission oil

1шт.

11

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-31/64 x 1-49/64 x 9/64" (37.7 x 44.9 x 3.6 MM)

1шт.

12

A27973

CAP

- breather

1шт.

13

49773

CLAMP

- tube

1шт.

14

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

17

A153931

COVER

- bottom, transmission case

1шт.

18

A140228

FILTER SCREEN

SCREEN - bottom

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

7шт.

20

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" NC hex. (Grade 5)

1шт.

21

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- 25/64 x 3/4 x 1/32" (9.92 x 19.05 x 0.79 MM)

1шт.

22

B17428

LOCTITE

- gasket replacement, 2 ounces (50 CC) Tube (Case to clutch housing and bottom, Serial Range: cover-case)

1шт.

23

221-844

PLUG,Hex Soc, 1/2"-14

- drain, 1/2" PT square head

1шт.

24

221-846

PLUG,Hex Soc, 1"-11 1/2

- 1" PT hex. socket (Use with no PTO)

1шт.

27

A135001

SWITCH

- sending, transmission oil temperature

1шт.

28

193-1000

NUT,Keps, w/LW,#10-32

- wire, #10-32 hex. (Keps)

1шт.

29

A58049

TUBE

- lube oil passage

1шт.

30

A58050

PLUG

- oil tube

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.3 x 20.6 x 2.4 MM) (Use with A77278 gauge)

2шт.
