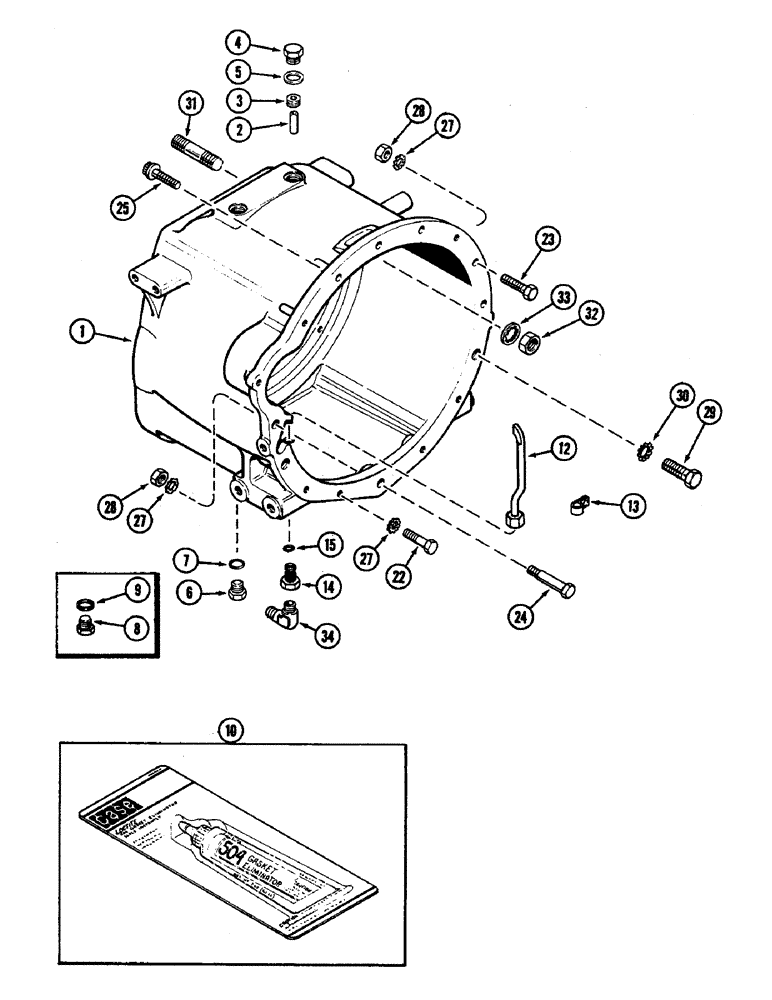

Запчасти Case IH 4890 (6-164) - CLUTCH HOUSING (06) - POWER TRAIN

1

A140730

HOUSING

- clutch

1шт.

2

A58049

TUBE

- oil fill, (C1) and (C4) Clutch

2шт.

3

A58050

PLUG

- fill tube

2шт.

4

214389

PLUG,3/4" - 16 ORB

Assy, Tube opening, Includes Ref. 5 Hex Hd, 3/4"-16 ORB

2шт.

6

214389

PLUG,3/4" - 16 ORB

Drain Hex Hd, 3/4"-16 ORB

1шт.

Transmission serial no. 10229318 and after.

1шт.

8

A140222

PLUG

- drain

1шт.

Prior to transmission serial no. 10229318.

1шт.

9

A58608

GASKET

- drain plug

1шт.

Prior to transmission serial no. 10229318.

1шт.

10

B17428

LOCTITE

- gasket replacement, 2 ounce (50 CC) Tube

1шт.

12

A146610

TUBE

- lubricating, (C1) Clutch

1шт.

13

49838

CLAMP

- tube

1шт.

14

A148901

FITTING

- tube, 3/4"-16 x 1/2" tube

1шт.

22

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

5шт.

22

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" NC hex.

1шт.

22

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

23

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2 x 2-1/2" NC hex. (Grade 5)

1шт.

23

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

24

A149764

STEP BOLT

BOLT - dowel, 1/2 x 3-9/64" NC

1шт.

24

A149765

STEP BOLT

BOLT - dowel, 1/2 x 2-21/32" NC

1шт.

25

166-89

12 PT SCREW,1/2" - 13 x 2", Gr 8

BOLT - 1/2 x 2" NC 12 point head

2шт.

25

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

BOLT - 1/2 x 1-3/4" NC 12 point head

3шт.

27

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

3шт.

28

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

29

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

30

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4" (Replaces A34651)

2шт.

31

A151866

STUD

- transmission case, 7/8" NF x 4"

4шт.

32

25-1114

NUT,7/8"-14, G5

- 7/8" NF hex.

4шт.

33

193-75

LOCK WASHER,7/8"

WASHER - lock, internal Shakeproof 7/8"

4шт.

34

218-1055

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/4"-18, NPTF

- connector, 90 degree

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.3 x 20.6 x 2.4 MM)

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.3 x 20.6 x 2.4 MM)

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3//32" (16.3 x 20.6 x 2.4 MM)

1шт.
