Запчасти Case IH 4890 (5-162) - REAR STEERING CHECK VALVE (05) - STEERING

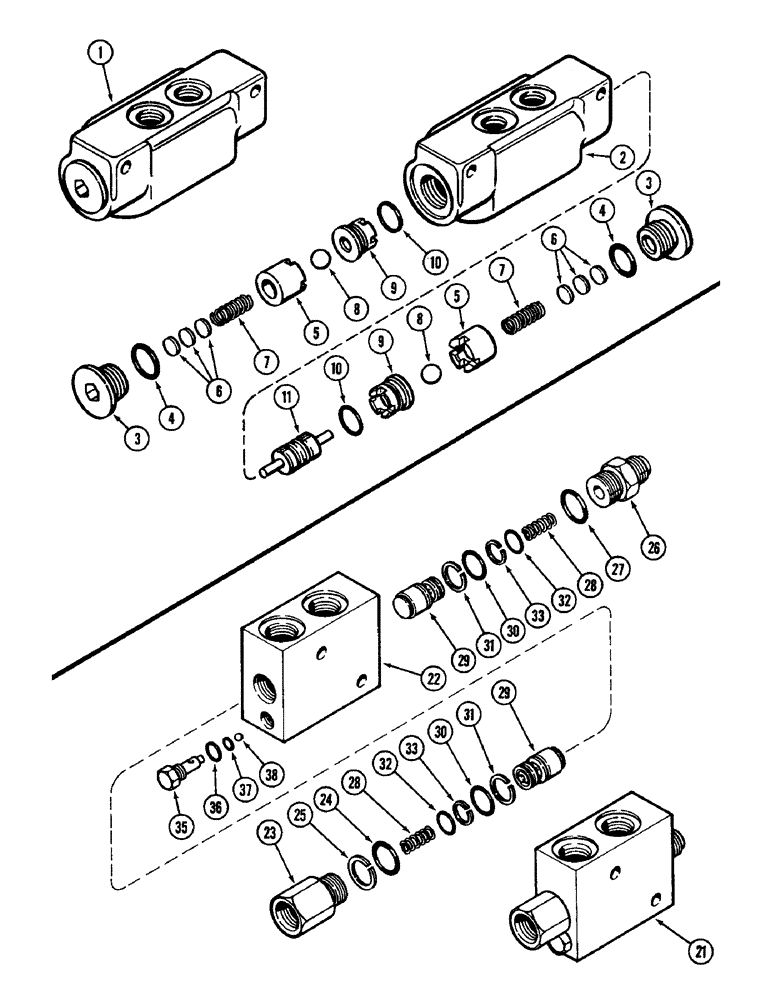

Схема запчастей Case IH 4890 - (5-162) - REAR STEERING CHECK VALVE (05) - STEERING
4
36
1
31
28
9
10
3
7
22
5
9
28
33
21
32
32
27
37
2
10
7
8
33
26
11
8
35
6
23
29
3
24
29
31
30
5
38
6
30
25
4

Артикул

Название

Примечание

Количество

1

A161709

VALVE

ASSEMBLY - check, Includes: Ref. 2 - 11, Start Serial: 8858086

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order A161709)

1шт.

3

A47714

PLUG

- valve end

2шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 7/64" (23.47 x 2.95 MM)

2шт.

Part of valve repair kit, P/N A47715

1шт.

5

A47711

SLEEVE

-valve

2шт.

6

NSS

NOT SOLD SEPARAT

SHIM - valve

1шт.

Part of valve repair kit, P/N A47715

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - sleeve

2шт.

Part of valve repair kit, P/N A47715

1шт.

8

211-212

BALL

- sleeve spring, 0.437" diameter (11.10 MM)

2шт.

Part of valve repair kit, P/N A47715

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - valve

2шт.

Part of valve repair kit, P/N A47715

1шт.

10

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- seat, 5/8 x 3/32" (15.87 x 2.38 MM)

2шт.

Part of valve repair kit, P/N A47715

1шт.

11

A47709

VALVE

SHUTTLE - valve

1шт.

A47715

SEAL

KIT - valve repair, Includes: Ref. 4, 6, 7, 8, 9, 10

1шт.

21

A147823

VALVE

ASSEMBLY - check (Order 1-A161709 valve and 1-218-5242 fitting), Includes: Ref. 22 - 38, Serial Range: -8858086

1шт.

22

NSS

NOT SOLD SEPARAT

BODY (Order A147823)

1шт.

23

A47663

ADAPTER

- female, cylinder hose

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of valve repair kit, P/N A47665

1шт.

25

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of valve repair kit, P/N A47665

1шт.

26

A47661

CONNECTOR, ELEC

CONNECTOR - male, cylinder hose

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of valve repair kit, P/N A47665

1шт.

28

A47660

SPRING

- check valve, 1-1/16" (26.99 MM) Free length

2шт.

29

A47662

VALVE

CARTRIDGE - check, Includes: Ref. 30 - 33

2шт.

30

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

Part of valve repair kit, P/N A47665

1шт.

31

NSS

NOT SOLD SEPARAT

RING - backup, large

1шт.

Part of valve repair kit, P/N A47665

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

Part of valve repair kit, P/N A47665

1шт.

33

NSS

NOT SOLD SEPARAT

RING - backup, small

1шт.

Part of valve repair kit, P/N A47665

1шт.

35

A47659

SCREW

- signal port

1шт.

36

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

Part of valve repair kit, P/N A47665

1шт.

37

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

Part of valve repair kit, P/N A47665

1шт.

38

211-108

BALL,5/32" Dia, Stainless

- shuttle, 5/32" diameter (3.97 MM)

1шт.

A47665

SEAL

KIT - valve repair: Includes: Ref. 24, 25, 27, 30, 31, 32, 33, 36, 37

1шт.

Выбрано товаров: 45
