Запчасти Case IH 4890 (5-160) - REAR STEERING PRIORITY VALVE (05) - STEERING

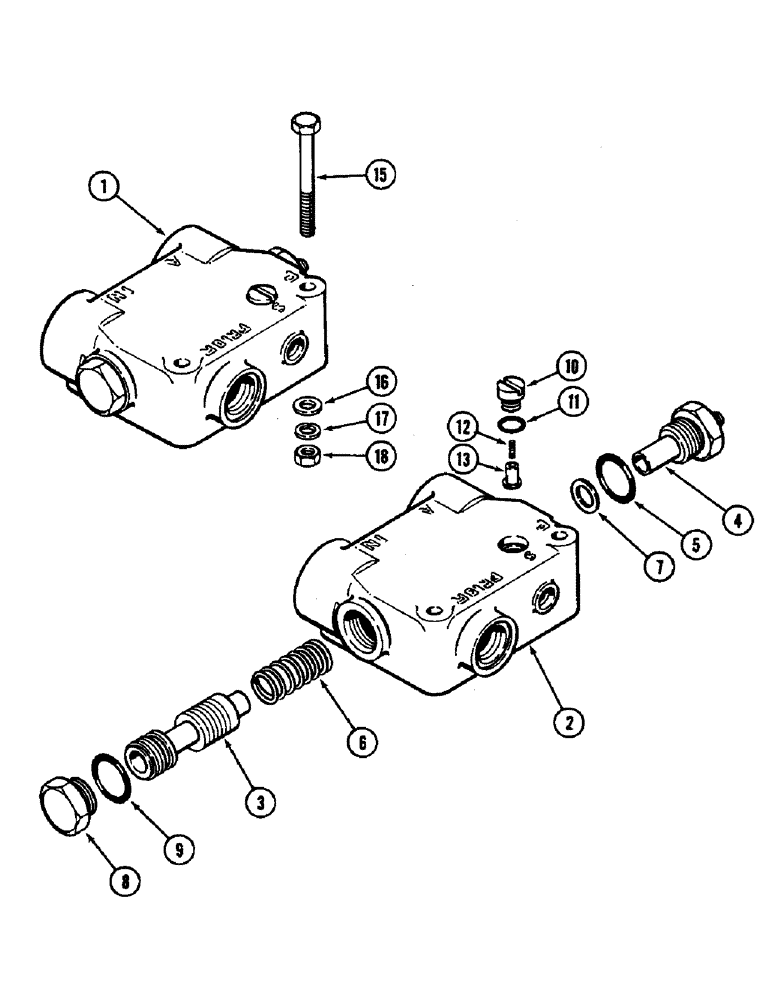

Схема запчастей Case IH 4890 - (5-160) - REAR STEERING PRIORITY VALVE (05) - STEERING
5
9
1
8
18
7
13
16
2
15
11
4
3
17
12
6
10

Артикул

Название

Примечание

Количество

1

A145582

VALVE

ASSEMBLY - priority, flow control, Includes: Ref. 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - (Order A145582)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - (Order A145582)

1шт.

4

A47475

VALVE

ASSEMBLY - relief, Includes: Ref. 5

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 13/16 x 29/32 x 3/32" (20.64 x 23.02 x 2.38 MM) (Order A47478)

1шт.

6

A47477

SPRING

- relief, 27/32" OD x 2" free length (21.93 x 50.8 MM)

1шт.

7

A47476

SHIM,.010" Thk

Relief spring (0.254 mm) .010" Thk

1шт.

7

H162974

SHIM,.015" Thk

Relief spring (0.323 mm) .015" Thk

1шт.

7

H746172

SHIM,.030" Thk

Relief spring (0.762 mm) .030" Thk

1шт.

7

F8236

SHIM

- relief spring, 0.065" (1.593 MM)

1шт.

8

A47429

PLUG

ASSEMBLY - spool, Includes: Ref. 9

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 13/16 x 29/32 x 3/32" (20.64 x 23.02 x 2.38 MM) (Order A47478)

1шт.

10

H229203

PLUG

- poppet spring

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 3/8 x 15/32 x 3/32" (9.52 x 11.9 x 2.38 MM) (Order A47478)

1шт.

12

F36082

SPRING

- check poppet, 5/32" OD x 1/2" free length (3.97 x 12.7 MM)

1шт.

13

F36081

VALVE POPPET

POPPET - check

1шт.

A47478

KIT

- repair (Includes ref 5, 9 and 11)

1шт.

15

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

Valve to plate Hex, 5/16"-18 x 2 3/4", G5

2шт.

16

195-21

WASHER,5/16"

(11/32 x 11/16 x 1/16") (8.73 x 17.46 x 1.59 mm) 5/16"

2шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC hex.

2шт.

Выбрано товаров: 21
