Запчасти Case IH 4890 (5-158) - REAR STEERING CONTROL VALVE (05) - STEERING

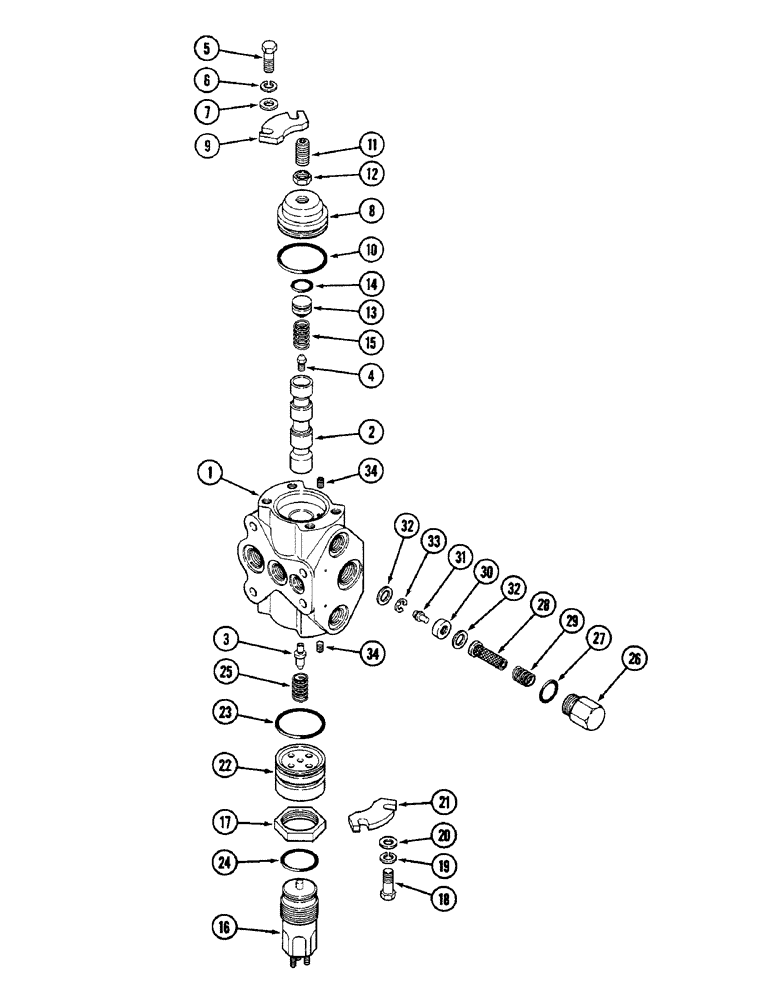

Схема запчастей Case IH 4890 - (5-158) - REAR STEERING CONTROL VALVE (05) - STEERING
9
28
6
34
31
25
24
8
34
32
5
2
32
10
17
13
12
18
23
27
14
16
33
19
21
7
3
20
30
29
15
4
11
26
22
1

Артикул

Название

Примечание

Количество

A145924

VALVE

ASSEMBLY - rear steering, Includes: Ref. 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - valve (Order A145924), Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A145924)

1шт.

3

NSS

NOT SOLD SEPARAT

NOZZLE - valve spool (Order A145924)

1шт.

4

NSS

NOT SOLD SEPARAT

ORIFICE - valve spool (Order A145924)

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

195-25

WASHER,3/8"

- flat, 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

4шт.

8

A47511

GLAND

- valve, spool orifice

1шт.

9

A47510

RETAINER

- gland

2шт.

10

R20570

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

- gland, 1-13/16 x 2 x 3/32" (46 x 50.8 x 2.4 MM)

1шт.

11

178-1385

SET SCREW,Hex Soc, 1/2"-20 x 1 1/4"

SCREW - set, 1/2"-20 NF x 1/2" hex. socket

1шт.

12

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" NF hex.

1шт.

13

A47503

GUIDE

- spring, orifice

1шт.

14

F10894

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

- spring gide, 11/16 x 13/16 x 1/16" (17.5 x 20.6 x 1.6 MM)

1шт.

15

A47517

SPRING

- orifice

1шт.

16

A47512

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - force control

1шт.

17

A47515

LOCK NUT

- hex., force motor

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

195-25

WASHER,3/8"

- flat, 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

4шт.

21

A47510

RETAINER

- gland

2шт.

22

A47507

GLAND

ASSEMBLY - nozzle, valve spool

1шт.

23

R20570

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

- outer, nozzle gland, 1-3/16 x 2 x 5/32" (46 x 50.85 x 2.4 MM)

1шт.

24

A59066

O-RING,1.239" ID x 1.379" OD

- inner, nozzle gland, 1-1/4 x 1-3/8 x 1/16" (31.75 x 34.92 x 1.59 MM)

1шт.

25

A47517

SPRING

- nozzle

1шт.

26

A47508

CAP

PLUG - filter

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- cap plug, 3/4 x 15/16 x 3/32" (19.1 x 23.8 x 2.4 MM)

1шт.

28

A47504

FILTER

- valve

1шт.

29

A47514

SPRING

- filter

1шт.

30

A47506

PLATE

- filter

1шт.

31

A47505

PIN

- filter plate

1шт.

32

A47550

SEAL,11.48mm ID x 15.85mm OD x 1.35mm Thk

GASKET - filter plate

2шт.

33

A31196

CIRCLIP,#25, .207" Dia, E-Type

Ring, Retaining, #25, .207" Dia, E-Type

1шт.

34

A47509

ORIFICE

- orifice, filter passage

2шт.

Выбрано товаров: 35
