(5-156) - REAR STEERING CYLINDERS, 3" (76.2 MM) DIAMETER X 8-1/2" (216MM) STROKE

Запчасти Case IH 4890 (5-156) - REAR STEERING CYLINDERS, 3" (76.2 MM) DIAMETER X 8-1/2" (216MM) STROKE (05) - STEERING

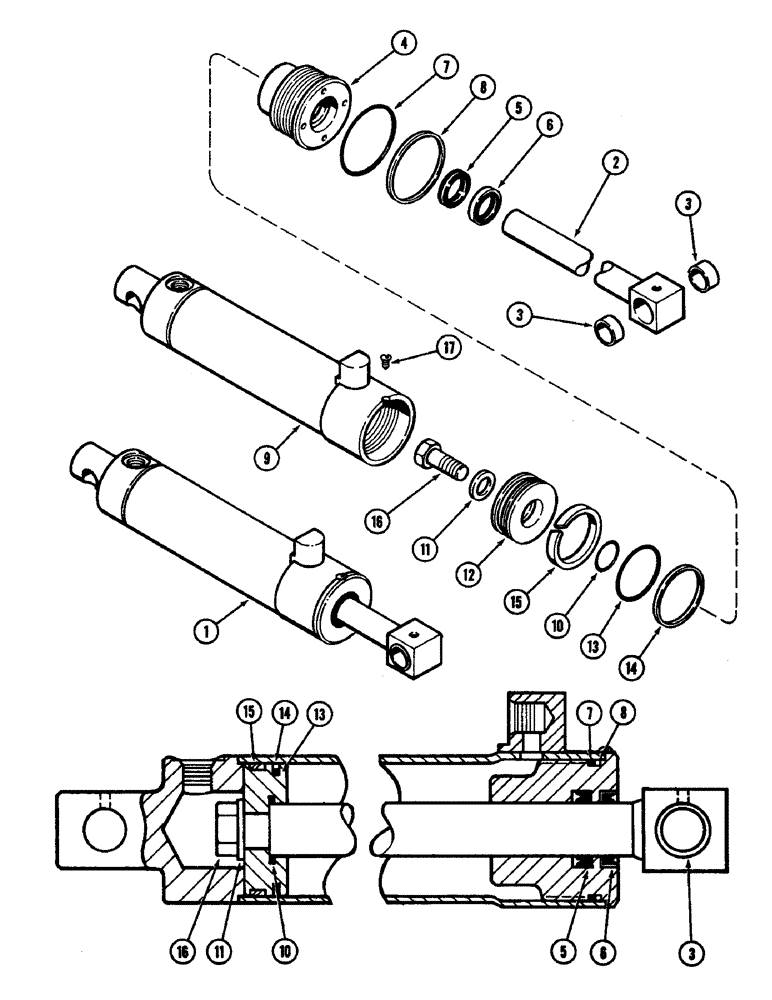

Схема запчастей Case IH 4890 - (5-156) - REAR STEERING CYLINDERS, 3" (76.2 MM) DIAMETER X 8-1/2" (216MM) STROKE (05) - STEERING
16
15
8
6
6
9
3
5
3
7
13
13
10
12
8
3
14
7
15
5
1
16
2
14
17
10
11
11
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

G102020

CYLINDER

ASSEMBLY - rear steering, Includes: Ref. 2 - 17

2шт.

2

G102025

ROD

ASSEMBLY - piston, Includes: Ref. 3

1шт.

3

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- pivot, rod

2шт.

G34204

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder (Order G35204)

1шт.

5

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- rod, piston, 3-1/2" OD x 2-61/64" ID x 5/32" wide (77 x 75 x 4 MM)

1шт.

Part of cylinder seal repair kit, P/N G102728

1шт.

6

D95141

WIPER SEAL

WIPER - rod, piston

1шт.

Part of cylinder seal repair kit, P/N G102728

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland, 3" ID x 3-1/4" OD x 1/8" wide (76.2 x 82.6 x 3.2 MM)

1шт.

Part of cylinder seal repair kit, P/N G102728

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland

1шт.

Part of cylinder seal repair kit, P/N G102728

1шт.

9

G102021

TUBE

- cylinder

1шт.

10

A59066

O-RING,1.239" ID x 1.379" OD

- piston, 1-1/4" ID x 1-3/8" OD x 1/16" wide (31.8 x 34.9 x 1.6 MM)

1шт.

Part of cylinder seal repair kit, P/N G102728

1шт.

11

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston rod

1шт.

12

G102029

PISTON

- cylinder (Order G104106)

1шт.

13

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- piston, 2-1/2" ID x 2-3/4" x 1/8" wide (64 x 70 x 3.2 MM)

1шт.

Part of cylinder seal repair kit, P/N G102728

1шт.

14

G32034

RING

SEAL - piston

1шт.

Part of cylinder seal repair kit, P/N G102728

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston 3" (76.2 MM) Diameter

1шт.

Part of cylinder seal repair kit, P/N G102728

1шт.

16

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

17

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8-32 x 1/4" round head slotted

1шт.

G102728

KIT

- cylinder seal repair, Includes: Refs. 5, 6, 7, 8, 10, 13, 14 and 15

1шт.
