Запчасти Case IH 4890 (5-150) - FRONT STEERING PUMP AND VALVE, P.I.N. 8860450 AND AFTER (05) - STEERING

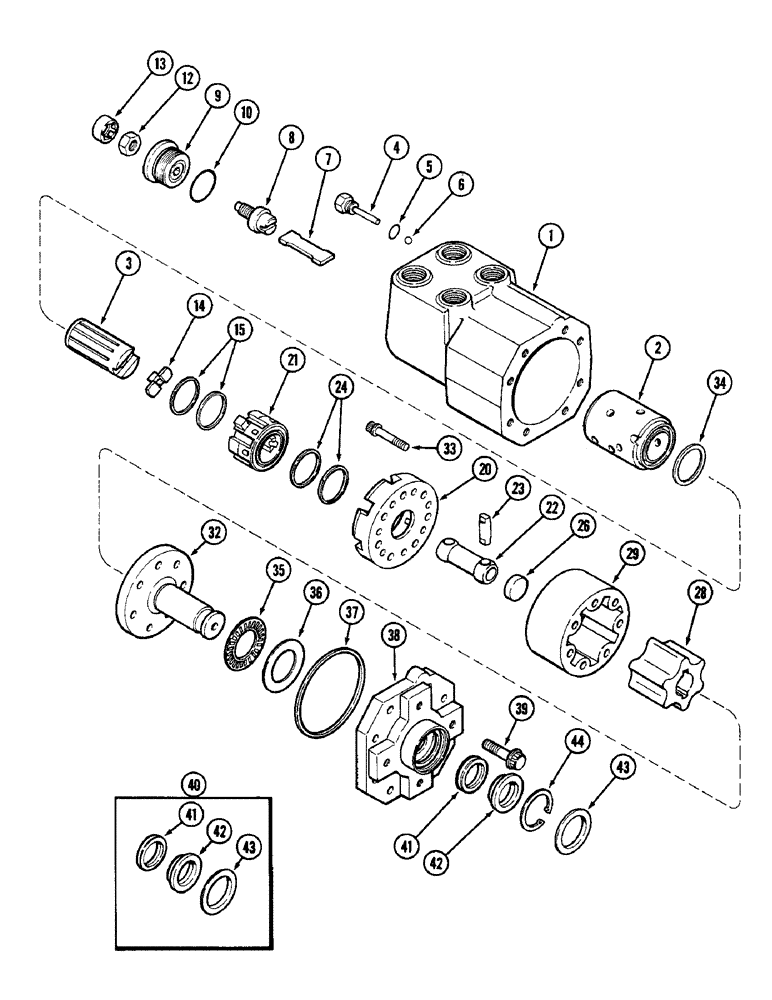

Схема запчастей Case IH 4890 - (5-150) - FRONT STEERING PUMP AND VALVE, P.I.N. 8860450 AND AFTER (05) - STEERING
24
28
23
1
36
5
42
3
41
43
26
22
33
38
7
6
15
4
2
44
37
34
8
13
29
43
42
21
14
9
20
12
41
35
10
32
39
40

Артикул

Название

Примечание

Количество

A47840

PUMP

AND VALVE ASSEMBLY - steering, remanufactured, Includes: Ref. 1 - 44

1шт.

A47841

RETURN NUMBER - steering valve and pump (Use this number to return pump core for credit)

1шт.

A145862

PUMP

AND VALVE ASSEMBLY - steering, new, Includes: Ref. 1 - 44

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - (Order A145862)

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - valve (Order A145862)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A145862)

1шт.

4

A47019

PLUG

ASSEMBLY - pump, Includes: Ref. 5

1шт.

5

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

6

A47018

BALL

- 9/32" (7.14 MM) Diameter

1шт.

7

A45196

FAN

BLADE - torsion

2шт.

8

A45193

ADJUSTMENT SCREW,3/8" - 24 x 1.44"

SCREW - adjusting

1шт.

9

A47006

PLUG

ASSEMBLY - pump, Includes: Ref. 10

1шт.

10

A47005

O-RING,1.053" ID

- 1-3/64 ID x 1/8" width (26.67 ID x 3.05 MM width)

1шт.

12

129-156

NUT,Jam, 2"-4.5, G5

- 3/8" NC hex. jam

1шт.

13

A47007

CAP

- pump

1шт.

14

A47668

RING

- drive

1шт.

15

A47421

SEALING RING

RING ASSEMBLY - seal, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

MANIFOLD - (Order A47419)

1шт.

21

NSS

NOT SOLD SEPARAT

COMMUTATOR - (Order A47419)

1шт.

22

F19635

LINK

- drive

1шт.

23

F19636

PIN

- lock

1шт.

24

A47421

SEALING RING

RING ASSEMBLY - seal

1шт.

26

A47413

SPACER

- 47/64" (18.77 MM) Diameter x 1/8" (3.17 MM) Wide

1шт.

A47395

ROTOR

SET - pump, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

ROTOR - (Order A47395)

1шт.

29

NSS

NOT SOLD SEPARAT

STATOR - (Order A47395)

1шт.

32

A47009

SHAFT

- input

1шт.

33

A47417

SCREW,1/4" x 1 7/8"

- cap, 1/4 x 1-7/8" NF 12 point

7шт.

34

A160850

WASHER

- hardened, 2-1/4 x 2-13/16 x 1/32" (57.15 x 71.44 x 0.79 MM)

1шт.

35

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

BEARING - thrust, needle

1шт.

A47670

KIT

- thrust washer, Includes: Ref. 36

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.035" (0.89 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.041" (1.02 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.047" (1.19 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.053" (1.35 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.059" (1.50 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.065" (1.65 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.071" (1.80 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.077" (1.80 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.083" (2.11 MM)

1шт.

37

A47004

RING

- seal, 2-3/32 x 3-3/64 x 1/16" (53.18 x 77.64 x 1.65 MM)

1шт.

38

A47016

COVER

- upper

1шт.

39

A45197

12 PT SCREW,1/4" - 28 x 0.875"

SCREW - cap, 1/4 x 1" NF 12 point

8шт.

40

A47038

SEAL KIT,Pump Shaft

KIT - cover seal, Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

42

NSS

NOT SOLD SEPARAT

SEAL - spacer

1шт.

43

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

- shaft

1шт.

44

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

Выбрано товаров: 48
