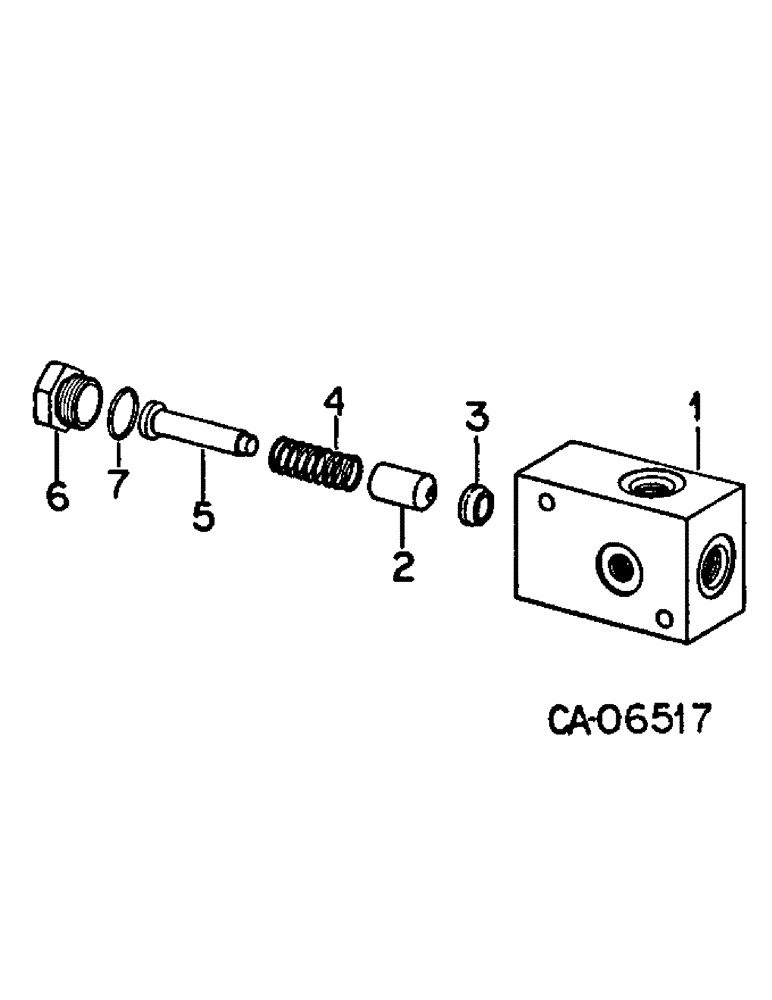

Запчасти Case IH 4786 (10-18) - HYDRAULICS, REGULATOR VALVE (07) - HYDRAULICS

128115C91

VALVE

ASSY, regulator

1шт.

1

BODY, regulator valve, Not serviced separately, Order regulator valve assy

1шт.

2

128117C1

VALVE

poppet

1шт.

3

128118C1

VALVE

seat

1шт.

4

SPRING, poppet valve, Not serviced separately, Order regulator valve assy

1шт.

5

396130R2

PIN

poppet valve piston

1шт.

6

396133R1

PLUG

valve retaining

1шт.

7

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube class 6

1шт.

495-21031

WASHER,1/4"

.312 x .743 x .051

1шт.
