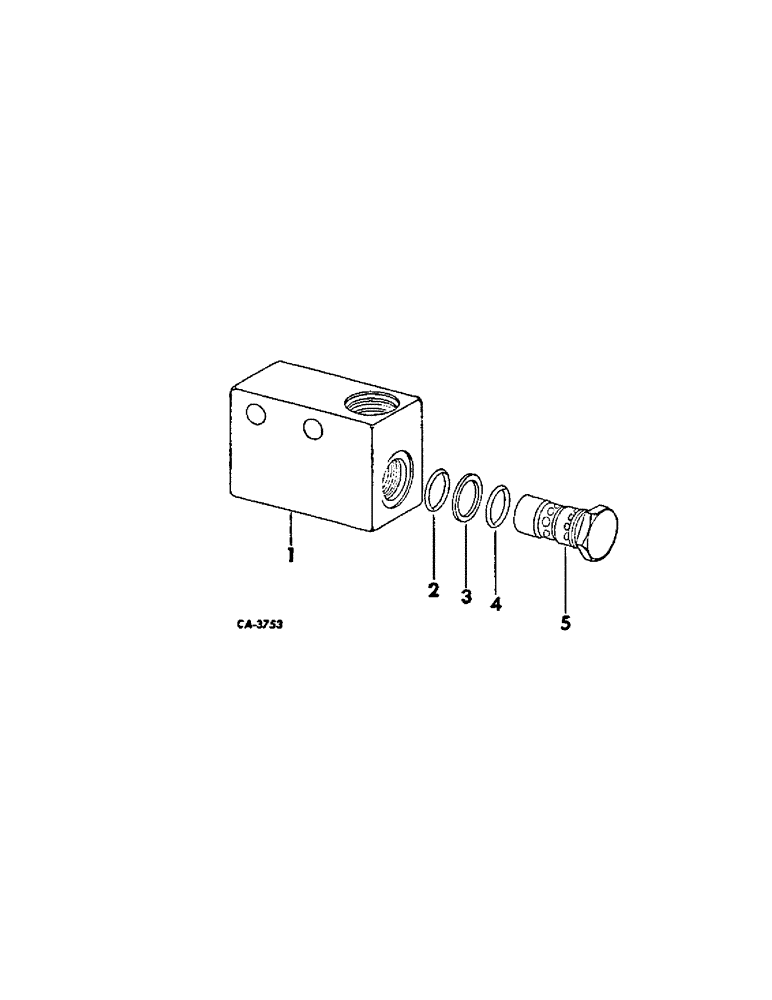

Запчасти Case IH 4786 (10-17) - HYDRAULICS, STEERING RELIEF VALVE (07) - HYDRAULICS

60053C91

VALVE BLOCK ASSY, steering relief, 2000 PSI

1шт.

1

403187R1

BLOCK

RELIEF VALVE ASSY

1шт.

2

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32

1шт.

3

378985R2

BACK-UP RING

back-up

1шт.

4

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.

5

388208R93

VALVE

ASSY, 2000 PSI pilot relief

1шт.
