(10-17[A]) - HYDRAULICS, HYDRAULIC OIL FILTER

Запчасти Case IH 4786 (10-17[A]) - HYDRAULICS, HYDRAULIC OIL FILTER (07) - HYDRAULICS

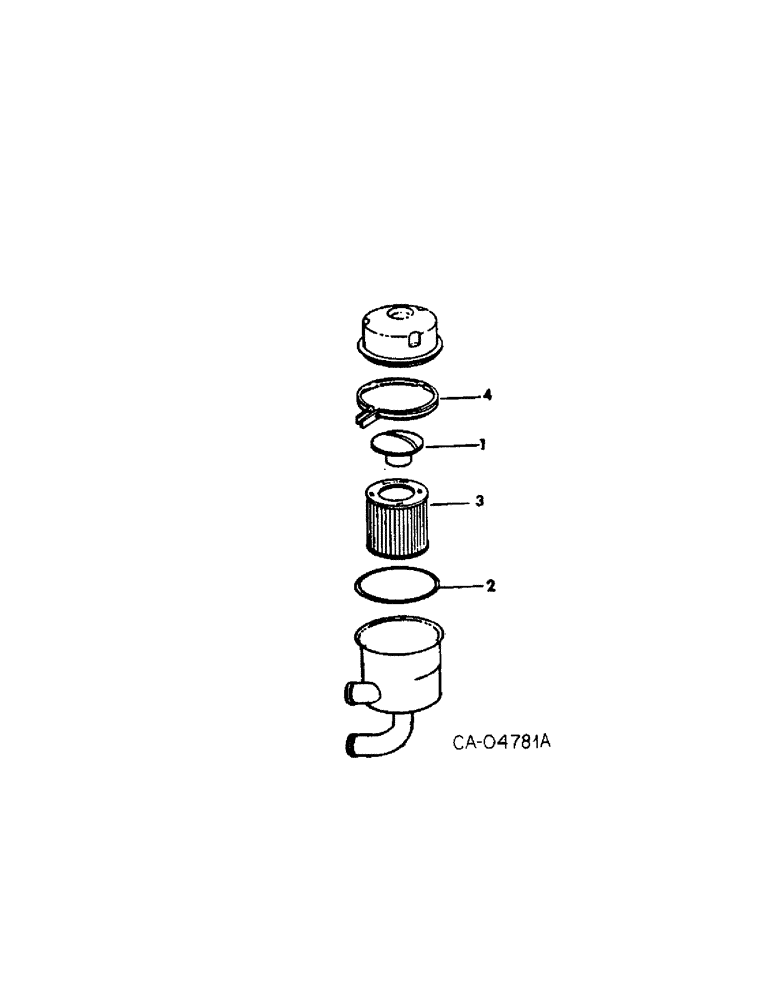

Схема запчастей Case IH 4786 - (10-17[A]) - HYDRAULICS, HYDRAULIC OIL FILTER (07) - HYDRAULICS
3
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

116864C91

FILTER

ASSY, hydraulic oil

1шт.

1

402211R1

VALVE

AND SCREEN ASSY

1шт.

2

541456R1

O-RING,5.975" ID x 0.21" Width

clamp

1шт.

3

113940C1

FILTER, ELEMENT

ELEMENT, hyd oil filter

1шт.

4

61920C91

BAND

PACKAGE, v-clamp assy service, Consists of

1шт.

15053R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16-18 x 1-3/4 sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

CLAMP (NSS)

1шт.
