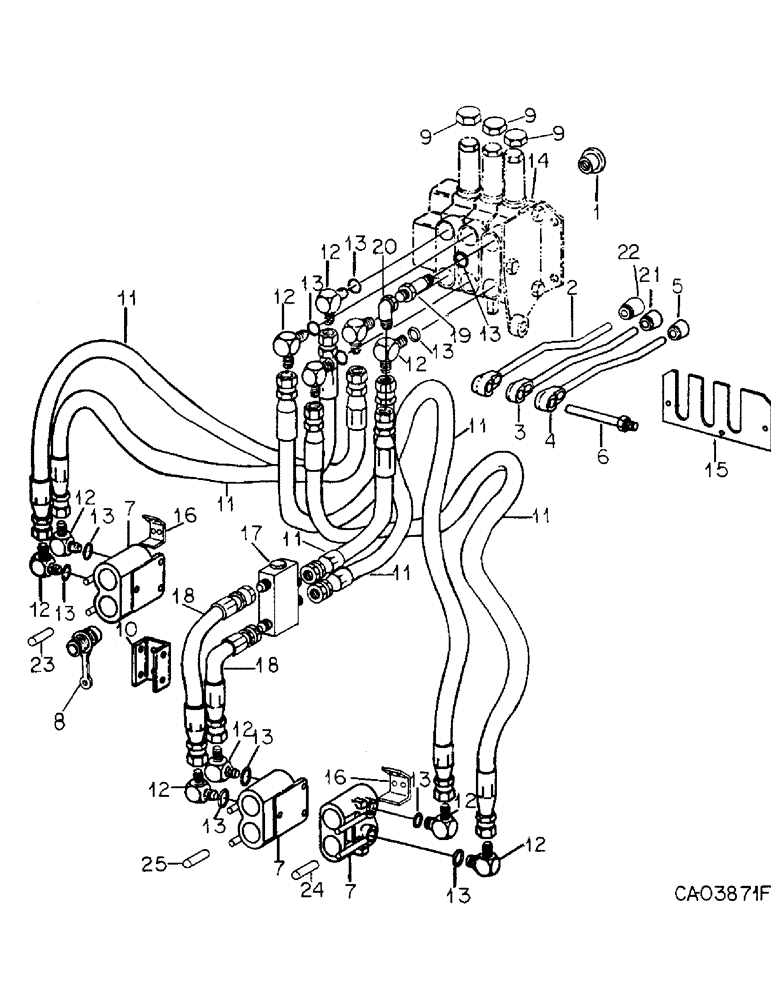

Запчасти Case IH 4786 (10-15) - HYDRAULICS, VALVE BANK AND CONNECTIONS, FOR THREE VALVE BANK ASSEMBLY (07) - HYDRAULICS

1

70174C1

BUSHING

INSULATOR, rubber

4шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120390

WASHER,1/2"

.562 x 1.375 x .086

8шт.

391553R1

SPACER,1/2" Pipe x 7/8"

.875 lg x .840 OD x .622 ID std pipe

4шт.

2

124530C3

LEVER

ASSY, valve actuating inner, Serial Range: -891

1шт.

2

132637C1

LEVER

ASSY, valve actuating short, Start Serial: 982

1шт.

3

124531C3

LEVER

ASSY, valve actuating center, Serial Range: -891

1шт.

3

132635C1

LEVER

ASSY, valve actuating center, Start Serial: 892

1шт.

4

124532C3

LEVER

ASSY, valve actuating outer, Serial Range: -891

1шт.

4

132635C1

LEVER

ASSY, valve actuating outer, Start Serial: 892

1шт.

5

387885R1

KNOB

actuating lever, Serial Range: -2500

1шт.

5

147094C1

KNOB, actuating lever, Blue, Start Serial: 2501

1шт.

6

67981C1

SHAFT

lever pivot

1шт.

98724H

AXLE PIN,1/2" x 1.688"

PIN, 1/2 x 1.688 pln clevis

3шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

3шт.

7

544786R95

COUPLING, BREAK AWAY

COUPLER ASSY, female, For component details refer to female coupler listing this group

1шт.

8

64757C1

PLUG

ASSY, coupler dust

6шт.

9

124708C1

CAP

valve weather

3шт.

10

69555C1

BRACKET

coupler

3шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

120396

WASHER

.531 x 1.062 x .074

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

11

69556C1

HOSE

ASSY, valve to coupler, three valve bank assy, Serial Range: -942

6шт.

11

69556C1

HOSE

ASSY, valve to coupler, alternating check valve assy, Serial Range: -942

4шт.

11

141963C1

HOSE

ASSY, valve to coupler, three valve bank assy, Start Serial: 943

6шт.

11

141963C1

HOSE

ASSY, valve to coupler, alternating check valve assy, Start Serial: 943

4шт.

306132C1

CABLE TIE,14.5" L

STRAP, hose

3шт.

11

141965C1

HOSE ASSY.

HOSE ASSY, aux valve to check valve, Replaces 58766C1, Used w/alternating check valve valve assy

2шт.

12

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube 90 deg, Serial Range: -942

12шт.

12

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube 90 deg, without three point category IV hitch, Start Serial: 943

11шт.

12

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube 90 deg, with three point category IV hitch, Serial Range: 943-2500

9шт.

12

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube 90 deg, with three point category IV hitch, Start Serial: 2501

5шт.

12

9411106

ELBOW

7/8-14 C-2 37 deg hyd flared tube adj str thd 45 deg

1шт.

12

9411106

ELBOW

7/8-14 C-2 37 deg hyd flared tube adj str thd 45 deg, w/three point category IV hitch, Start Serial: 2501

4шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

12шт.

14

VALVE BANK ASSY, three, See detail list

1шт.

15

129477C2

COVER

three valve bank

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

3шт.

16

NOT USED IN THIS APPLICATION

1шт.

17

142864C95

VALVE

ASSY, alternating check, For component details refer to alternating check valve listing

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

18

114366C1

HOSE ASSY.

HOSE ASSY, check valve to coupler, Used w/alternating check valve assy

2шт.

19

9410230

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, Pipe

CONNECTOR, 7/8-14 C-Z 37 deg hyd flrd tube long, Start Serial: 943

1шт.

20

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 C-Z 37 deg tube 90 deg swivel, Start Serial: 943

1шт.

21

387885R1

KNOB

actuating lever, Black, Serial Range: -2500

1шт.

21

147093C1

KNOB, actuating lever, Yellow, Start Serial: 2501

1шт.

22

387885R1

KNOB

actuating lever, Black, Serial Range: -2500

1шт.

22

397931R2

GRIP

KNOB, actuating lever, Black, Start Serial: 2501

1шт.

22

397931R2GV

SPRING

Value, Knob

1шт.

23

139346C1

SLEEVE

coupling lever, Black

2шт.

24

139347C1

SLEEVE

coupling lever, Yellow

2шт.

25

139348C1

SLEEVE

coupling lever, Blue

2шт.
