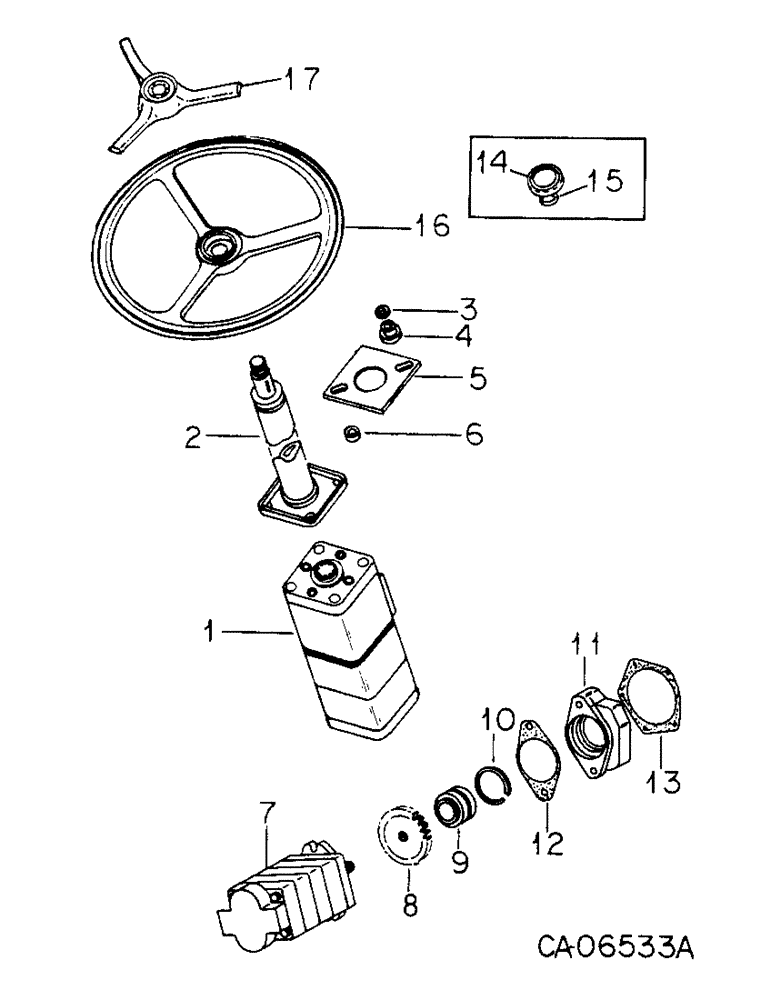

Запчасти Case IH 4786 (10-14) - HYDRAULICS, HYDRAULIC PUMPS AND MOUNTING (07) - HYDRAULICS

1

146605C91

DASHPOT

VALVE ASSY, steering Orbitrol, Only serviceable items are

1шт.

79056C1

GEAR SET, Orbitrol valve

1шт.

79057C1

SEAL KIT

KIT, seal, Consists of seven o-rings, two seals and one back-up washer

1шт.

2

132631C91

STEERING ASSY

POST ASSY, steering

1шт.

3

129189C1

WASHER

insulator

2шт.

4

70174C1

BUSHING

WASHER, Orbitrol

2шт.

5

129190C1

LARGE PLATE

PLATE, Orbitrol

1шт.

6

129191C1

SPACER

Orbitrol

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

2шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8 x .750 pln ast 12 pt flg

2шт.

7

138069C91

PUMP, HYDRAULIC

PUMP ASSY, hyd tandem

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

2шт.

8

104935C1

GEAR

pump drive, 31T

1шт.

9

610300C91

TAPERED BEARING

pump gear

1шт.

127689

WASHER, LOCK

WASHER, bearing lock

1шт.

127712

SUPPORT

bearing lock

1шт.

10

252862R1

RING

snap

1шт.

11

104936C2

ADAPTER

hyd pump

1шт.

12

390618R1

GASKET

pump

1шт.

13

601877C1

GASKET

pump adapter

1шт.

14

68837C1

CAP

ASSY, steering wheel, Serial Range: -2500

1шт.

15

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32, Steering wheel cap, 4786 tractors, Serial Range: -2500

1шт.

16

385156R1

WHEEL (STEERING)

WHEEL, 16 in. dia steering

1шт.

16

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel

1шт.

17

148839C91

CAP

ASSY, steering, Start Serial: 2501

1шт.
