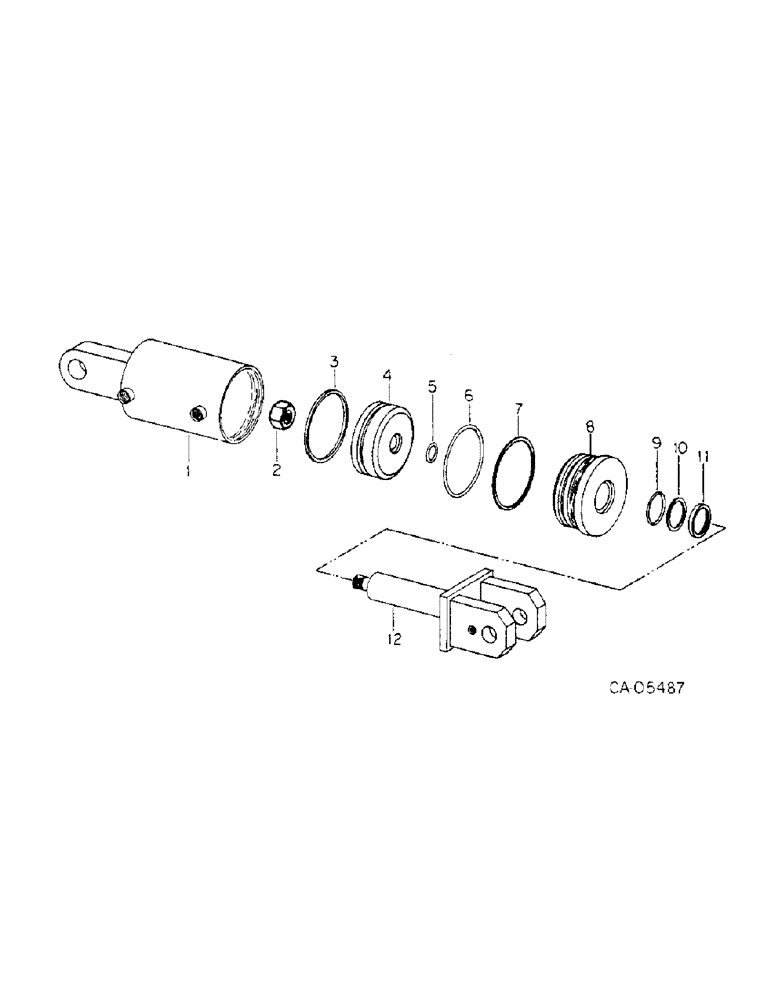

Запчасти Case IH 4786 (10-13) - HYDRAULICS, HITCH LIFT CYLINDER (07) - HYDRAULICS

71800C92

CYLINDER

ASSY, hitch left

1шт.

1

71801C1

TUBE

ASSY

1шт.

2

359798C1

LOCK NUT,1"-14, GC

NUT, lock, Not serviced separately, Order hitch lift cylinder assy

1шт.

3

SEAL, piston, Not serviced separately, Order seal kit

1шт.

4

76914C1

PISTON

Not serviced separately, Order hitch lift cylinder assy

1шт.

5

O-RING, Not serviced separately, Order seal kit

1шт.

6

O-RING, Not serviced separately, Order seal kit

1шт.

7

WASHER, back-up, Not serviced separately, Order seal kit

1шт.

8

76915C1

GUIDE

HEAD, cylinder, Not serviced separately, Order hitch lift cylinder assy

1шт.

9

O-RING, Not serviced separately, Order seal kit

1шт.

10

WASHER, back-up, Not serviced separately, Order seal kit

1шт.

11

WIPER PISTON ROD, Not serviced separately, Order seal kit

1шт.

12

76913C1

ROD

ASSY

1шт.

71803C1

SEAL KIT

KIT, seal, Consists of

1шт.

O-RING (NSS)

3шт.

WASHER (NSS)

2шт.

WIPER (NSS)

1шт.

SEAL (NSS)

1шт.
